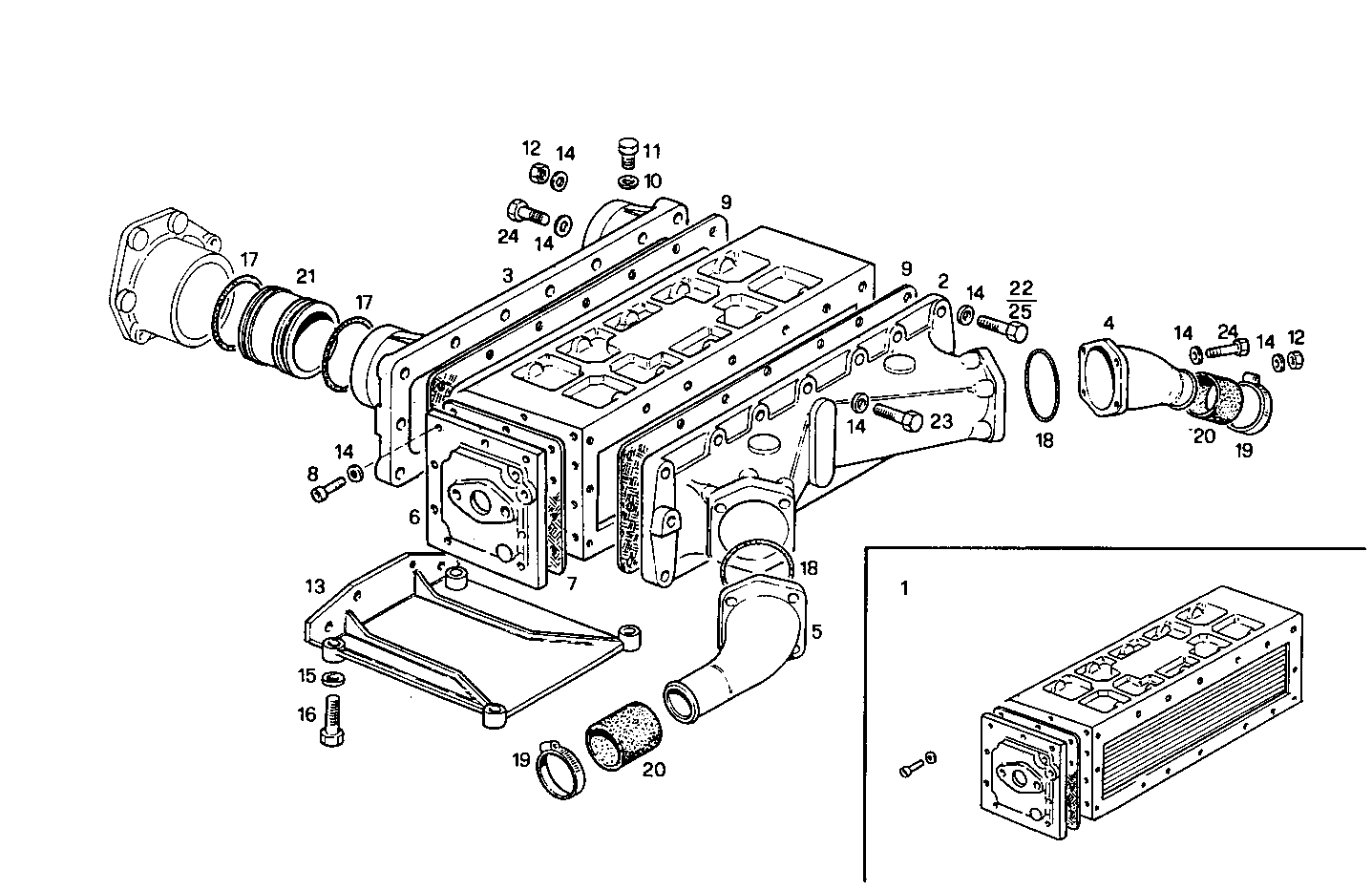

AIR - WATER HEAT EXCHANGER
PU8281SRI10.00A102 — PU8281SRI10
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8110638 | AIR/WATER HEAT EXCHANGER AIR/WATER HEAT EXCHANGER | 1 | |
| 2 | 8105947 | AIR HOOD AIR HOOD | 1 | |
| 3 | 8108539 | AIR HOOD AIR HOOD | 1 | |
| 4 | 8108582 | WATER PIPE WATER PIPE | 1 | |
| 5 | 8108581 | AIR MANIFOLD AIR MANIFOLD | 1 | |
| 6 | 8113017 | HEAT EXCHANG.COVER HEAT EXCHANG.COVER | 2 | |
| 7 | 8112975 | GASKET GASKET | 2 | |
| 8 | 11306921 | SCREW SCREW | 12 | |
| 9 | 8103241 | GASKET GASKET | 2 | |
| 10 | 4858608 | SEAL GASKET SEAL GASKET | 2 | |
| 11 | 10300640 | LOCK PLUG LOCK PLUG | 2 | |
| 12 | 17037931 | HEXAGON NUT HEXAGON NUT | 1 | |
| 13 | 8110254 | SUPPORT SUPPORT | 1 | |
| 14 | 17089474 | SPRING WASHER SPRING WASHER | 52 | |
| 15 | 17090174 | SPRING WASHER SPRING WASHER | 16 | |
| 16 | 11307021 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 17 | 14472381 | WASHER WASHER | 4 | |
| 18 | 17291281 | O-RING O-RING | 2 | |
| 19 | 4788416 | CLIP CLIP | 4 | |
| 20 | 4765112 | RUBBER SLEEVE RUBBER SLEEVE | 2 | |
| 21 | 8108544 | SPACING BAR SPACING BAR | 2 | |
| 22 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 9 | |
| 23 | 16043821 | HEXAGON BOLT HEXAGON BOLT | 19 | |
| 24 | 16625734 | HEXAGON BOLT HEXAGON BOLT | 9 | |
| 25 | 16606124 | HEXAGON BOLT HEXAGON BOLT | 2 |
