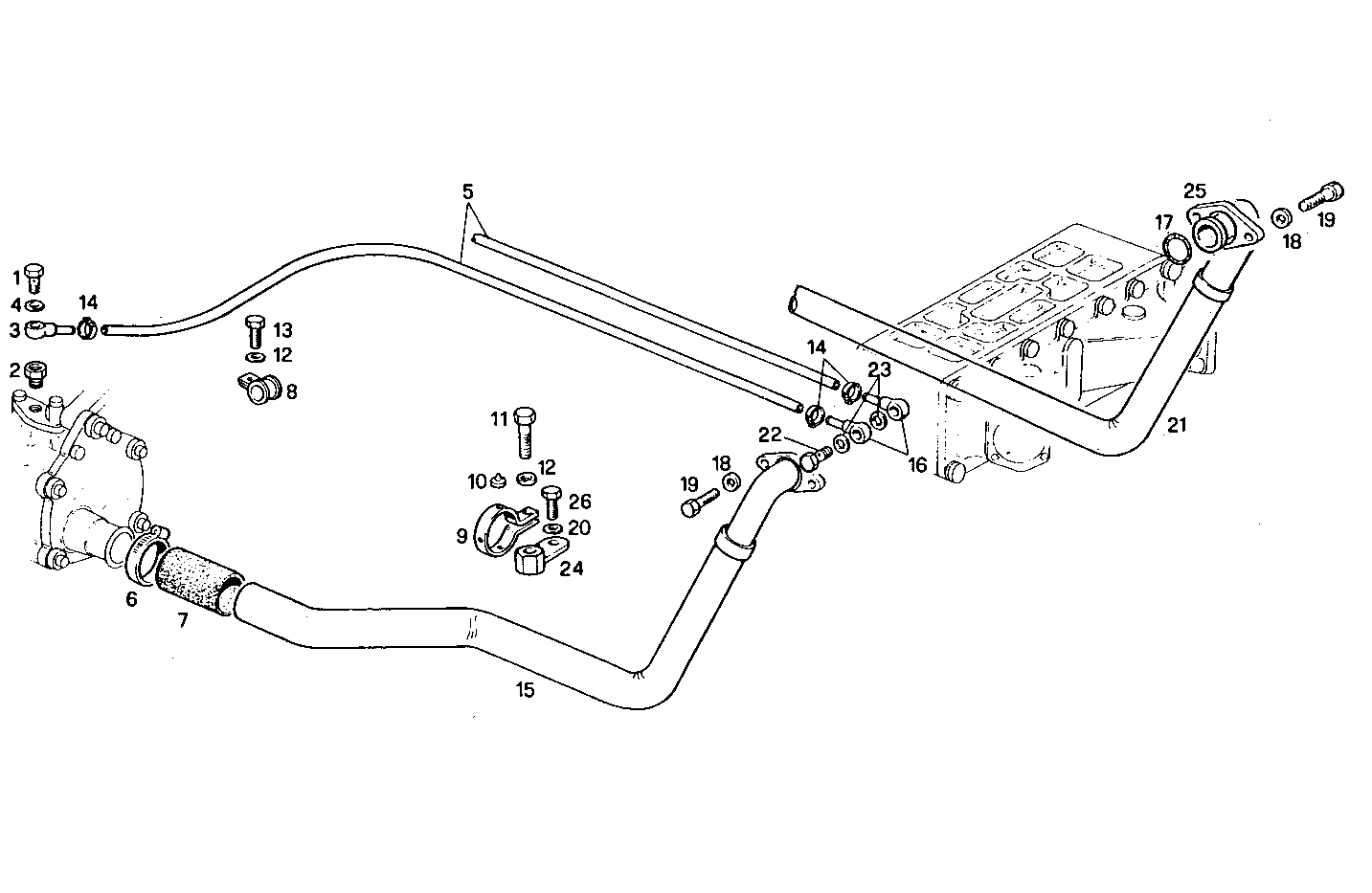

AUXILIARY WATER LINES
PU8281SRI10.00A102 — PU8281SRI10
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8009699 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 2 | 8009696 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 3 | 4935134 | OIL LINE OIL LINE | 1 | |
| 4 | 4858606 | GASKET GASKET | 1 | |
| 5 | 8018794 | WATER PIPE WATER PIPE | 2 | |
| 6 | 98490783 | CLIP CLIP | 8 | |
| 7 | 8106646 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 8 | 17316790 | CLIP CLIP | 1 | |
| 9 | 4640545 | CLIP CLIP | 2 | |
| 10 | 4565875 | RUBBER PAD RUBBER PAD | 6 | |
| 11 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 12 | 17089474 | SPRING WASHER SPRING WASHER | 3 | |
| 13 | 16605424 | SCREW SCREW | 1 | |
| 14 | 18053911 | CLIP CLIP | 2 | |
| 15 | 8108679 | WATER PIPE WATER PIPE | 1 | |
| 16 | 98405514 | PIPE SOCKET PIPE SOCKET | 2 | |
| 17 | 17289981 | O-RING O-RING | 2 | |
| 18 | 17091074 | WASHER WASHER | 4 | |
| 19 | 17495034 | SPRING WASHER SPRING WASHER | 4 | |
| 20 | 17092174 | SPRING WASHER SPRING WASHER | 2 | |
| 21 | 8108681 | WATER PIPE WATER PIPE | 1 | |
| 22 | 8009696 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 23 | 98474306 | WASHER WASHER | 1 | |
| 24 | 8109155 | RETAINER RETAINER | 2 | |
| 25 | 8108682 | FLANGE FLANGE | 2 | |
| 26 | 15981121 | HEXAGON BOLT HEXAGON BOLT | 2 |
