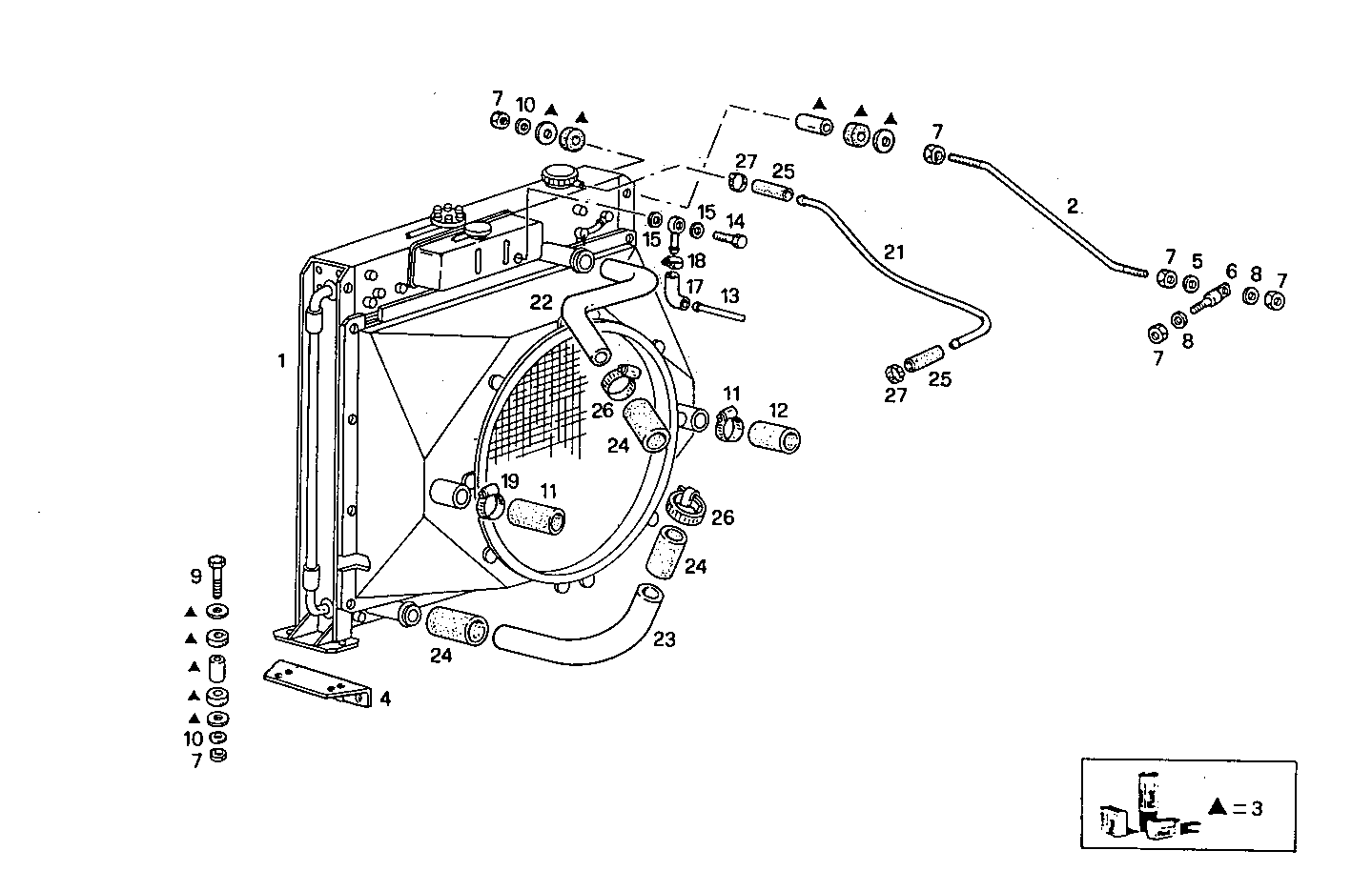

RADIATOR 2 CIRCUITS AIR/WATER
PU8281SRI10.00A102 — PU8281SRI10
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8009970 | WATER RADIATOR WATER RADIATOR | 1 | |
| 2 | 8108930 | TIE ROD TIE ROD | 2 | |
| 3 | 8090977 | KIT-RADIATOR KIT-RADIATOR | 1 | |
| 4 | 8112940 | SUPPORT SUPPORT | 2 | |
| 5 | 14496701 | WASHER WASHER | 2 | |
| 6 | 8108056 | PIN PIN | 2 | |
| 7 | 16101511 | HEXAGON NUT HEXAGON NUT | 14 | |
| 8 | 11190771 | WASHER WASHER | 6 | |
| 9 | 15541321 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 10 | 11190879 | SPRING WASHER SPRING WASHER | 6 | |
| 11 | 4717847 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 12 | 10138787 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 13 | 8109991 | WATER PIPE WATER PIPE | 1 | |
| 14 | 4864082 | BANJO BOLT BANJO BOLT | 1 | |
| 15 | 10296160 | SEAL GASKET SEAL GASKET | 2 | |
| 16 | 8109997 | PIPE SOCKET PIPE SOCKET | 1 | |
| 17 | 19061487 | RUBBER SLEEVE RUBBER SLEEVE | 2 | |
| 18 | 12178990 | CLIP CLIP | 4 | |
| 19 | 12174190 | CLIP CLIP | 4 | |
| 20 | 4551493 | THREADED UNION THREADED UNION | 1 | |
| 21 | 8108913 | WATER PIPE WATER PIPE | 1 | |
| 22 | 8108088 | WATER PIPE WATER PIPE | 1 | |
| 23 | 8107755 | WATER PIPE WATER PIPE | 1 | |
| 24 | 8107383 | RUBBER SLEEVE RUBBER SLEEVE | 4 | |
| 25 | 4927825 | WATER HOSE WATER HOSE | 2 | |
| 26 | 12174890 | CLIP CLIP | 8 | |
| 27 | 12173690 | CLIP CLIP | 4 |
