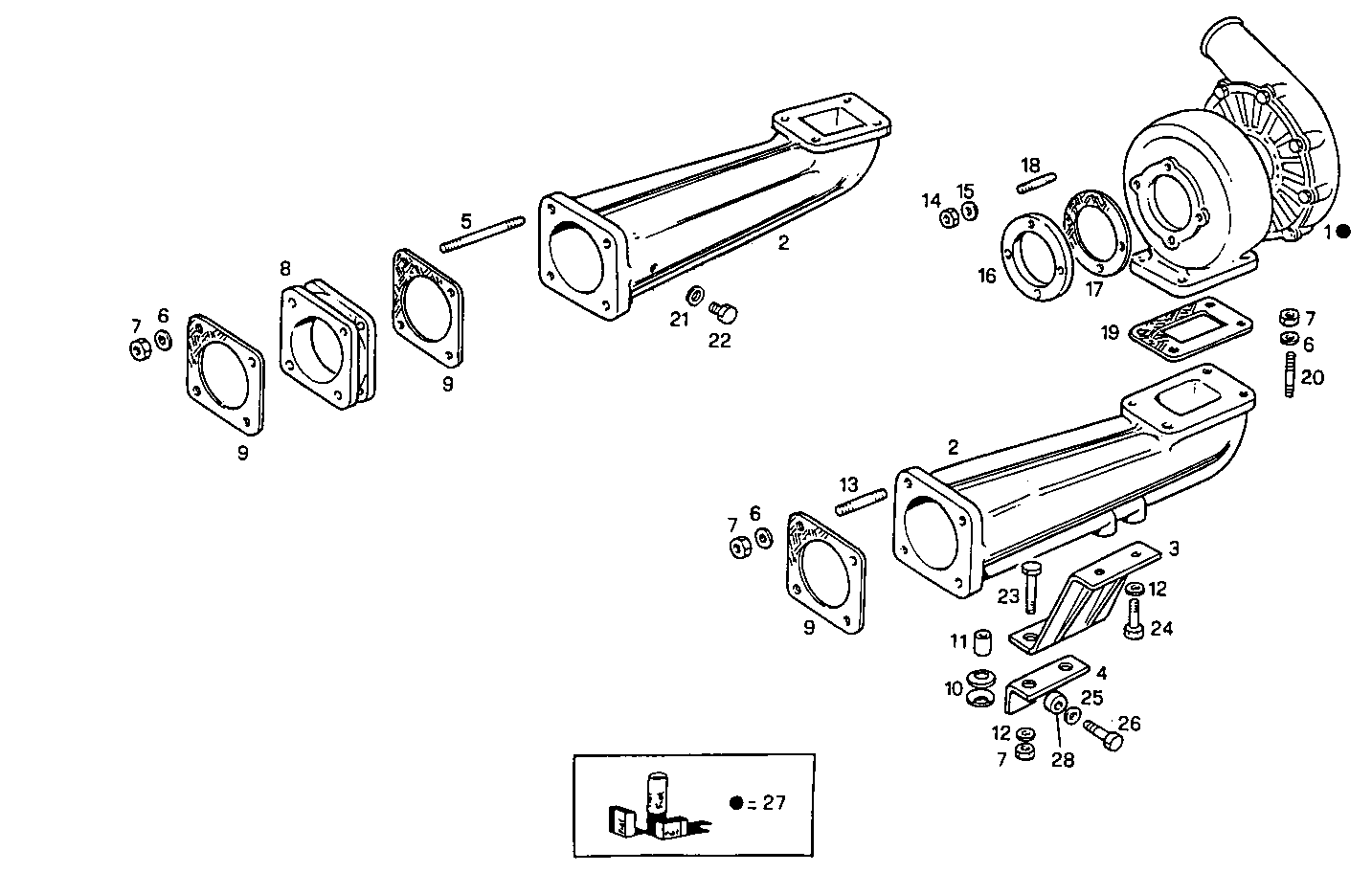

TURBOCHARGER
PU8281SRI10.00A102 — PU8281SRI10
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8108015 | TURBOCHARGER TURBOCHARGER | 2 | |
| 2 | 8108482 | EXHAUST ELBOW EXHAUST ELBOW | 2 | |
| 3 | 8110049 | RETAINER RETAINER | 2 | |
| 4 | 8110048 | RETAINER RETAINER | 2 | |
| 5 | 13547430 | STUD STUD | 4 | |
| 6 | 10730521 | WASHER WASHER | 16 | |
| 7 | 17038221 | HEXAGON NUT HEXAGON NUT | 20 | |
| 8 | 8108490 | SPACING BAR SPACING BAR | 1 | |
| 9 | 4706264 | FLAT ENGINE GKT FLAT ENGINE GKT | 3 | |
| 10 | 8110051 | SPRING SPRING | 16 | |
| 11 | 8110050 | BUSH BUSH | 4 | |
| 12 | 17090174 | SPRING WASHER SPRING WASHER | 8 | |
| 13 | 13546730 | STUD STUD | 4 | |
| 14 | 17037931 | HEXAGON NUT HEXAGON NUT | 8 | |
| 15 | 10730301 | WASHER WASHER | 8 | |
| 16 | 8112977 | FLANGE FLANGE | 2 | |
| 17 | 4729026 | GASKET GASKET | 2 | |
| 18 | 13517221 | STUD STUD | 8 | |
| 19 | 98428396 | FLAT ENGINE GKT FLAT ENGINE GKT | 2 | |
| 20 | 13449830 | STUD STUD | 8 | |
| 21 | 10296160 | SEAL GASKET SEAL GASKET | 2 | |
| 22 | 16992211 | THREADED PLUG THREADED PLUG | 2 | |
| 23 | 11234721 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 24 | 15970621 | SCREW SCREW | 4 | |
| 25 | 17092374 | SPRING WASHER SPRING WASHER | 4 | |
| 26 | 11391521 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 27 | 8090147 | KIT-TURBOCHARGER KIT-TURBOCHARGER | 2 | |
| 28 | 4934451 | SPACING BAR SPACING BAR | 4 |
