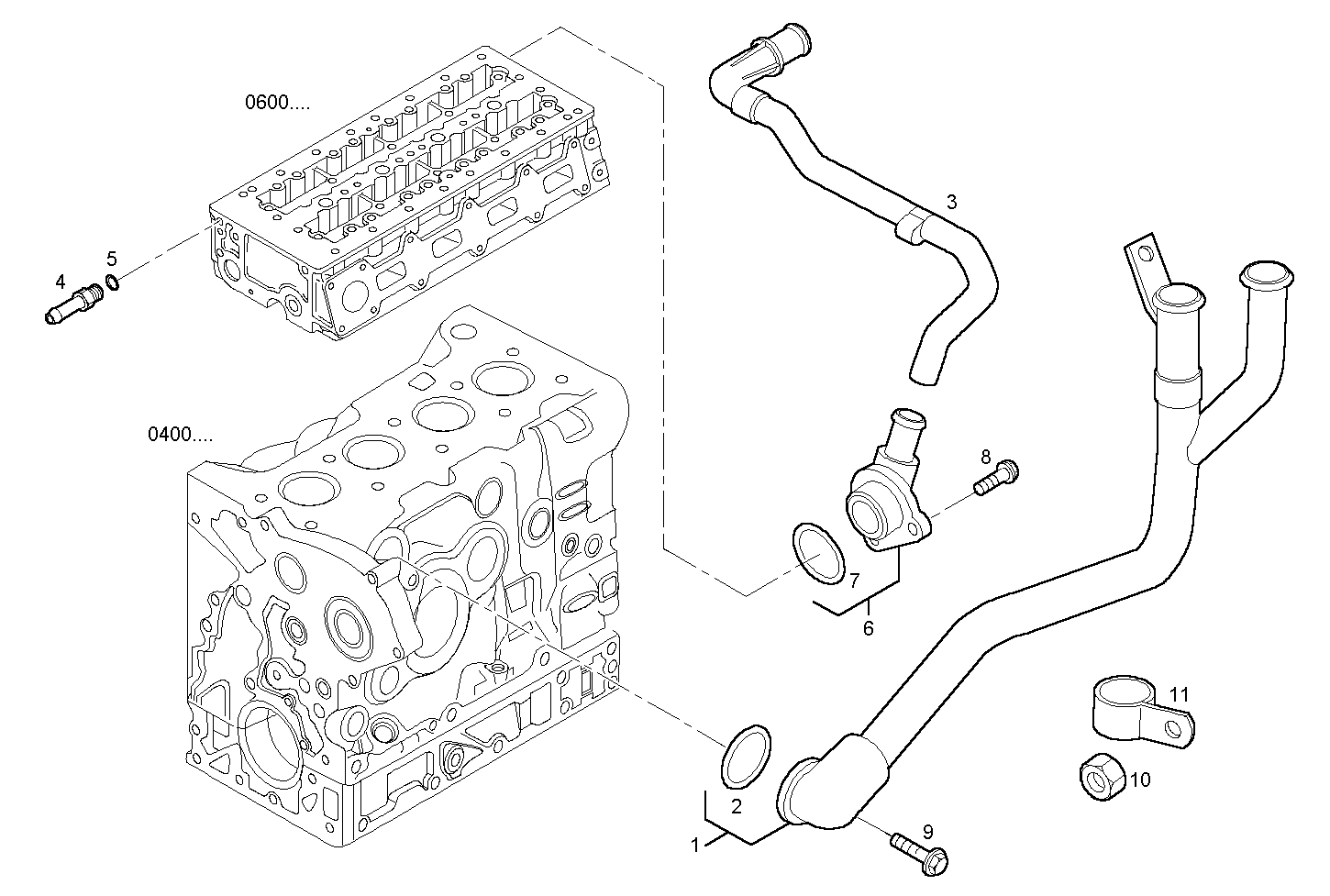

WATER LINES
F1AE0481B*B301 — SOFIM HPI 2.3L - EURO 3
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 504043221 | WATER PIPE WATER PIPE | 1 | |
| 2 | 17288480 | O-RING O-RING | 1 | |
| 3 | 504014201 | PIPE PIPE | 1 | |
| 4 | 500389975 | CONNECTION PIPE CONNECTION PIPE | 1 | |
| 5 | 10260160 | SEAL GASKET SEAL GASKET | 1 | |
| 6 | 504007644 | WATER PIPE WATER PIPE | 1 | |
| 7 | 17288881 | O-RING O-RING | 1 | |
| 8 | 18138424 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 9 | 18137824 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 10 | 17044731 | HEXAGON NUT HEXAGON NUT | 1 | |
| 11 | 10450790 | PIPE CLIP PIPE CLIP | 1 | |
| 12 | 504158477 | CONNECTION PIPE CONNECTION PIPE | 1 |
