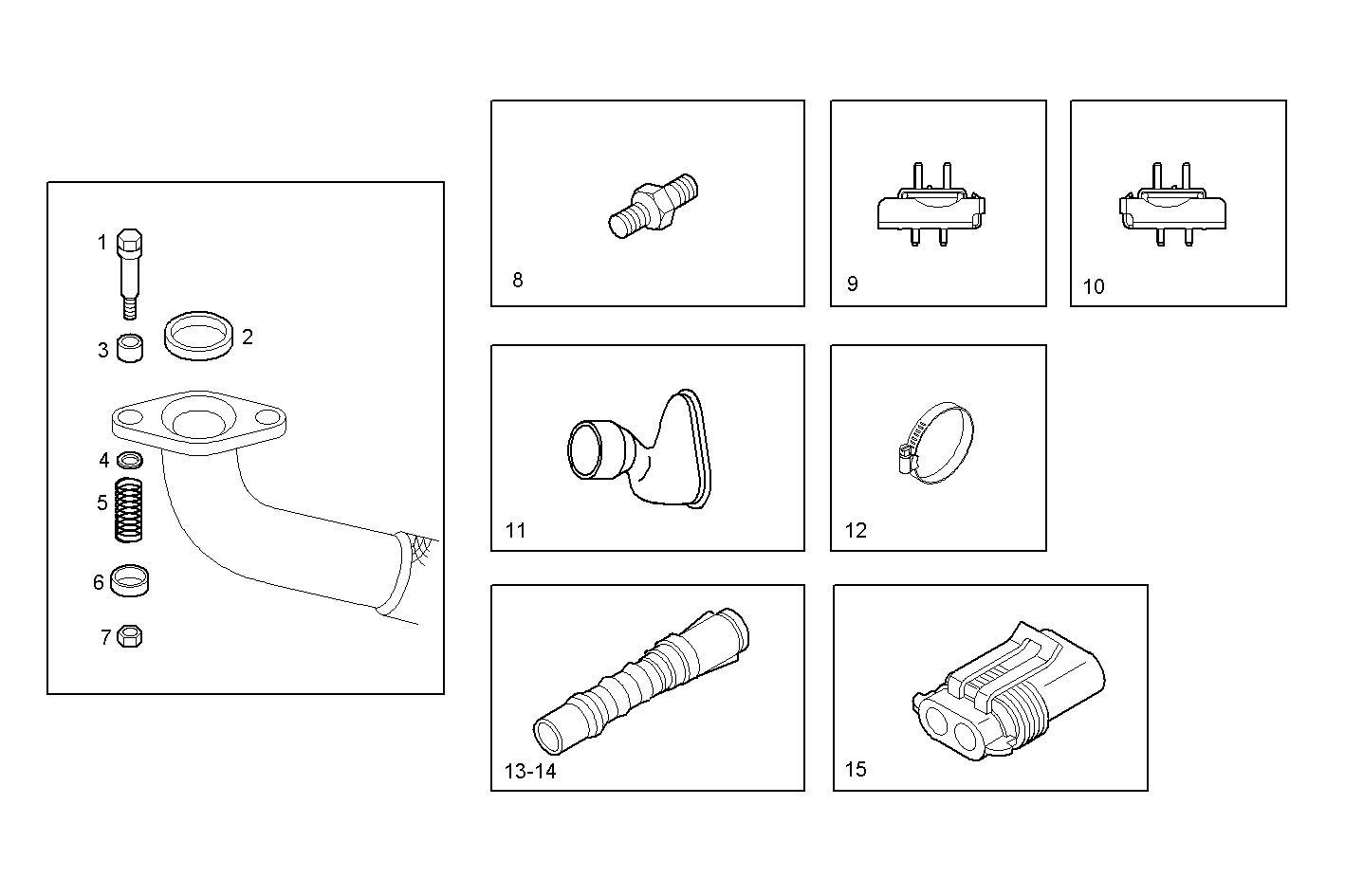

ACCESSORIES
S23ENSC20.10A006 — SOFIM HPI 2.3L - EURO 3
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 9152127080 | SCREW SCREW | 2 | |
| 2 | 9603895480 | RING RING | 1 | |
| 3 | 9150951680 | BUSH BUSH | 2 | |
| 4 | 9603945980 | WASHER WASHER | 2 | |
| 5 | 9607970680 | SPRING SPRING | 2 | |
| 6 | 9150917480 | COVER COVER | 2 | |
| 7 | 14058419 | NUT NUT | 2 | |
| 8 | 500344937 | THREADED UNION THREADED UNION | 5 | |
| 9 | 504046292 | ENGINE SILENTBLOCK ENGINE SILENTBLOCK | 1 | |
| 10 | 504046294 | ENGINE SILENTBLOCK ENGINE SILENTBLOCK | 1 | |
| 11 | 500325384 | AIR INDUCT.FILTER AIR INDUCT.FILTER | 1 | |
| 12 | 18089191 | CLIP CLIP | 1 | |
| 13 | 500373711 | PIPE SOCKET PIPE SOCKET | 1 | |
| 14 | 500373710 | PIPE SOCKET PIPE SOCKET | 2 | |
| 15 | 8030572 | CONNECTION CONNECTION | 1 |
