ACCESSORIES

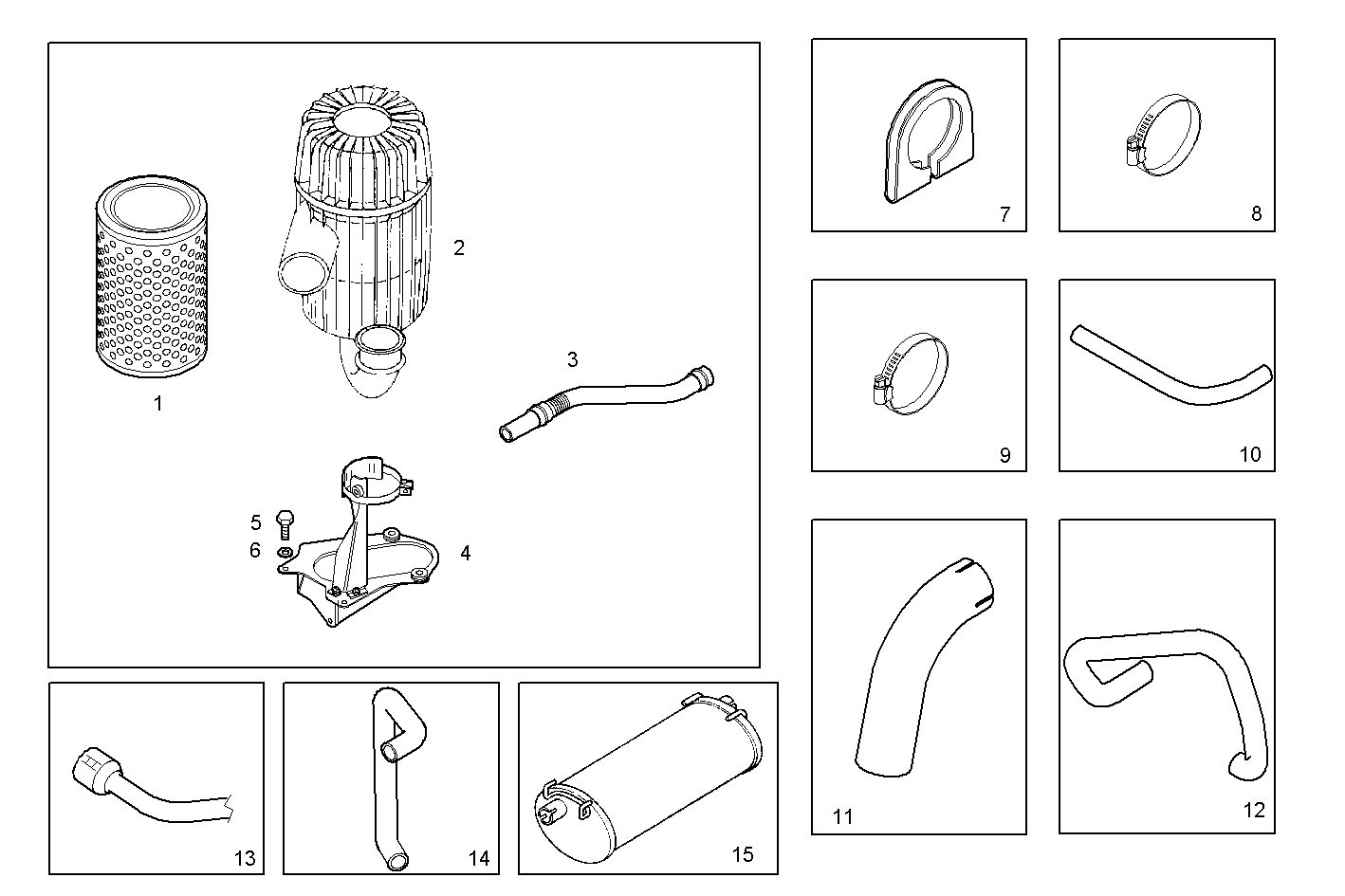

S23ENSC20.10A006 — SOFIM HPI 2.3L - EURO 3
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 1903669 | AIR FILTER ELEMENT AIR FILTER ELEMENT | 1 | |
| 2 | 504054587 | AIR CLEANER AIR CLEANER | 1 | |
| 3 | 500396509 | BREATHER PIPE BREATHER PIPE | 1 | |
| 4 | 504054585 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 5 | 16604024 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 6 | 12647724 | WASHER WASHER | 1 | |
| 7 | 8585923 | CLIP CLIP | 2 | |
| 8 | 18089191 | CLIP CLIP | 1 | |
| 9 | 13127770 | CLIP CLIP | 1 | |
| 10 | 504018469 | WATER HOSE WATER HOSE | 1 | |
| 11 | 500314665 | TAIL PIPE TAIL PIPE | 1 | |
| 12 | 504044686 | WATER HOSE WATER HOSE | 1 | |
| 13 | 504098506 | WATER HOSE WATER HOSE | 1 | |
| 14 | 504032760 | SUCTION LINE SUCTION LINE | 1 | |
| 15 | 500329483 | SILENCER SILENCER | 1 |
