TRANSMISSION
S23ENSC24.10A006 - C — SOFIM HPI 2.3L - EURO 3

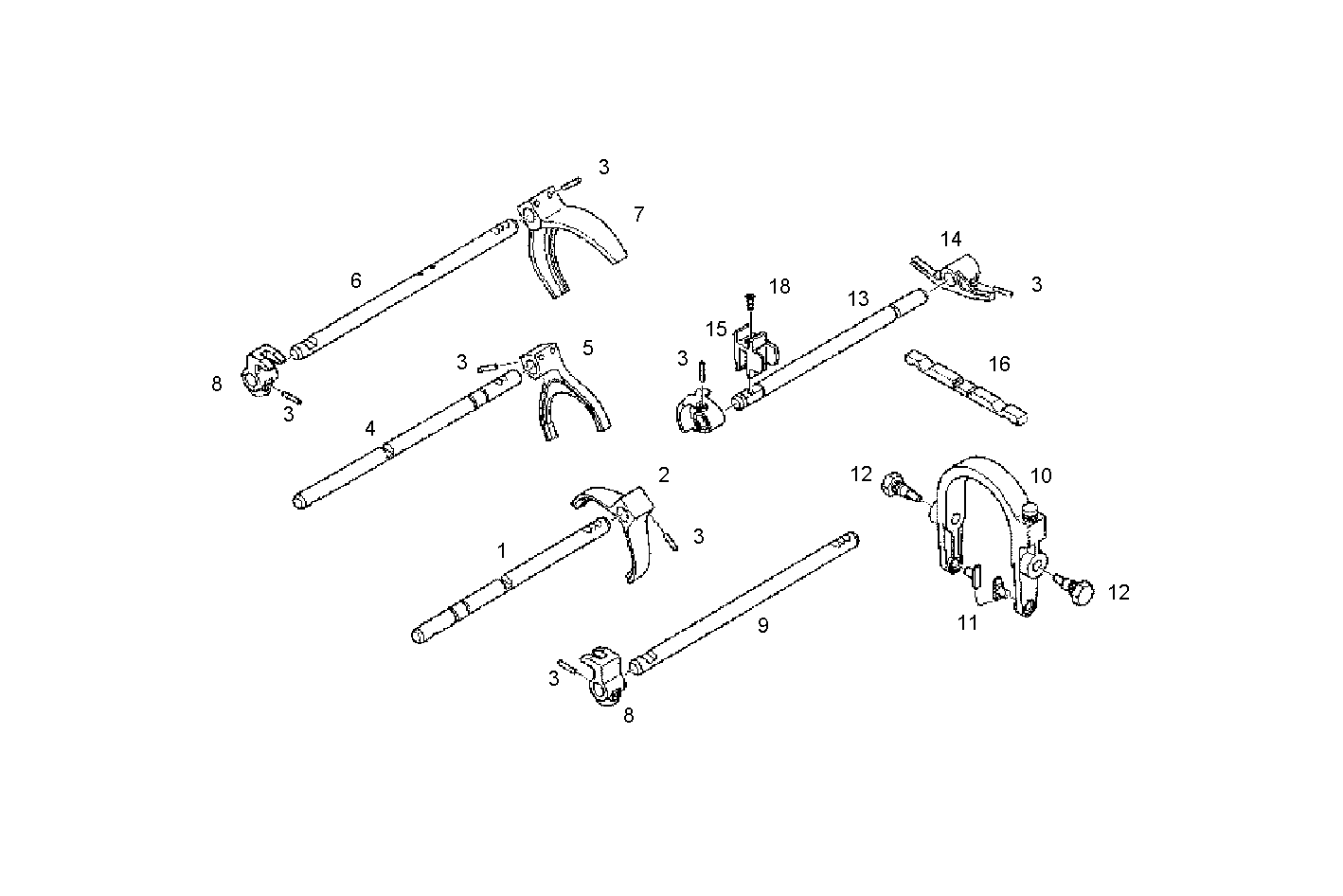

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8869619 | SHIFT FORK ROD SHIFT FORK ROD | 1 | |
| 2 | 8869626 | SHIFT FORK SHIFT FORK | 1 | |
| 3 | 60176262 | DOWEL PIN DOWEL PIN | 10 | |
| 4 | 8869620 | SHIFT FORK ROD SHIFT FORK ROD | 1 | |
| 6 | 8869621 | SHIFT FORK ROD SHIFT FORK ROD | 1 | |
| 7 | 8869649 | SHIFT FORK SHIFT FORK | 1 | |
| 7 | 8870394 | SHIFT FORK SHIFT FORK | 1 | |
| 8 | 8870520 | GEAR SELECT.SLEEVE GEAR SELECT.SLEEVE | 2 | |
| 9 | 8869618 | SHIFT FORK ROD SHIFT FORK ROD | 1 | |
| 10 | 8870261 | SWING ARM SWING ARM | 1 | |
| 11 | 8869722 | SLIDING SHOE SLIDING SHOE | 2 | |
| 12 | 8869627 | FITTED BOLT FITTED BOLT | 2 | |
| 13 | 8870396 | SHIFT FORK ROD SHIFT FORK ROD | 1 | |
| 14 | 8870522 | GEARSEGM.GEARSHIFT GEARSEGM.GEARSHIFT | 1 | |
| 15 | 8871916 | GEAR SELECT.SLEEVE GEAR SELECT.SLEEVE | 1 | |
| 16 | 8869641 | PIN PIN | 1 | |
| 17 | 8870397 | GEAR SELECT.SLEEVE GEAR SELECT.SLEEVE | 1 | |
| 18 | 8871238 | C'SUNK SCREW C'SUNK SCREW | 1 |
