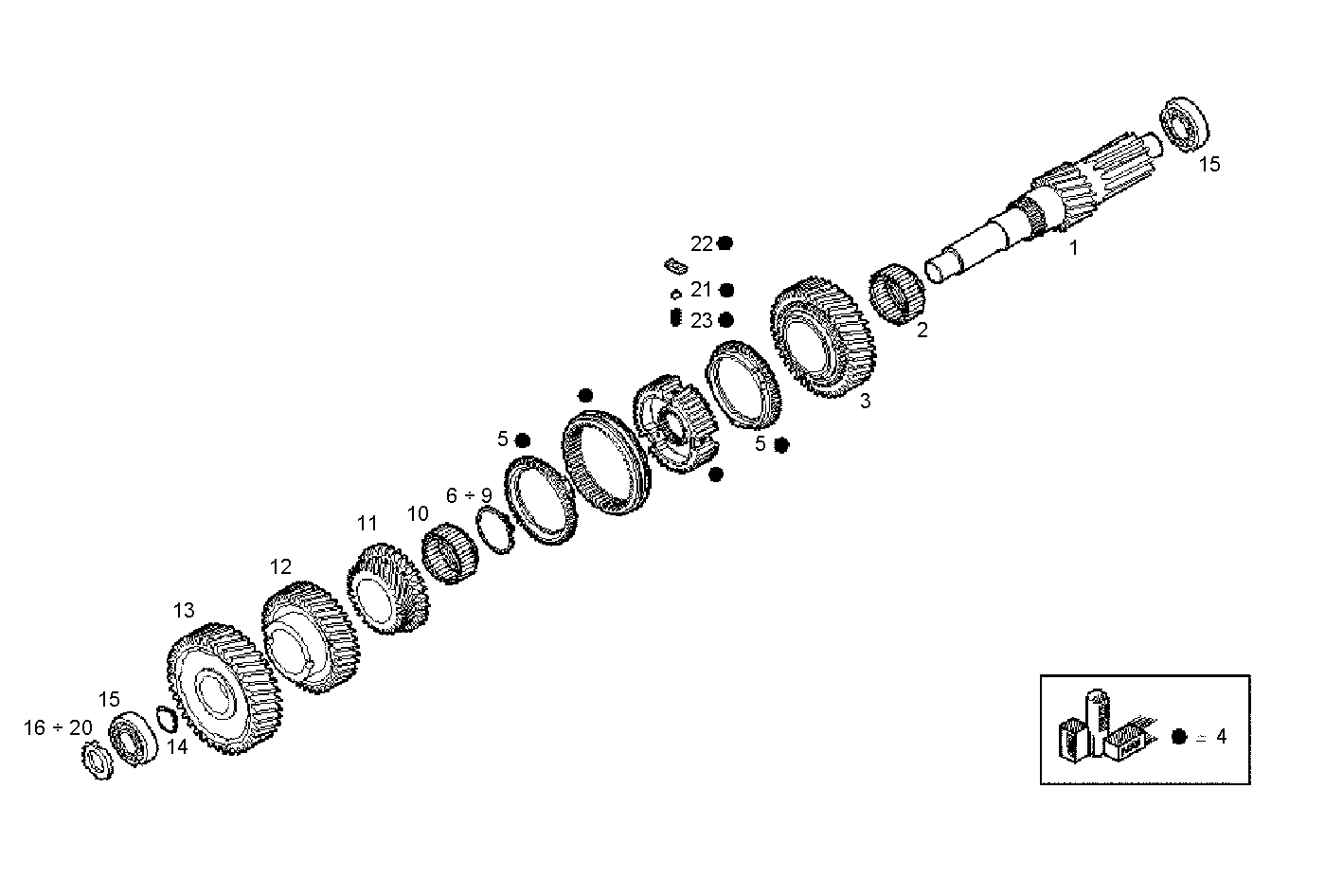

TRANSMISSION
S23ENSC24.10A006 - D — SOFIM HPI 2.3L - EURO 3
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8869602 | COUNTERSHAFT COUNTERSHAFT | 1 | |
| 2 | 8869672 | ROLLER CAGE ROLLER CAGE | 1 | |
| 3 | 8869592 | SPLITTER GEAR SPLITTER GEAR | 1 | |
| 4 | 8870250 | KIT-SYNCHRONIZER KIT-SYNCHRONIZER | 1 | |
| 5 | 8869663 | SYNCHRONIZER SYNCHRONIZER | 2 | |
| 6 | 8869678 | CIRCLIP CIRCLIP | 1 | |
| 7 | 8869677 | CIRCLIP CIRCLIP | 1 | |
| 8 | 8869676 | CIRCLIP CIRCLIP | 1 | |
| 9 | 8869675 | CIRCLIP CIRCLIP | 1 | |
| 10 | 8869671 | ROLLER CAGE ROLLER CAGE | 1 | |
| 11 | 8869593 | SPLITTER GEAR SPLITTER GEAR | 1 | |
| 12 | 8869604 | SPLITTER GEAR SPLITTER GEAR | 1 | |
| 13 | 8869605 | SPLITTER GEAR SPLITTER GEAR | 1 | |
| 14 | 42534985 | CIRCLIP CIRCLIP | 1 | |
| 15 | 2992590 | ROLLER BEARING ROLLER BEARING | 2 | |
| 16 | 8869712 | STOP WASHER STOP WASHER | 1 | |
| 17 | 8869710 | STOP WASHER STOP WASHER | 1 | |
| 18 | 8869708 | STOP WASHER STOP WASHER | 2 | |
| 19 | 8869699 | STOP WASHER STOP WASHER | 1 | |
| 20 | 8869704 | STOP WASHER STOP WASHER | 2 | |
| 21 | 9926356 | BALL BALL | 3 | |
| 22 | 8869720 | DOWEL DOWEL | 3 | |
| 23 | 8869716 | SPRING SPRING | 3 |
