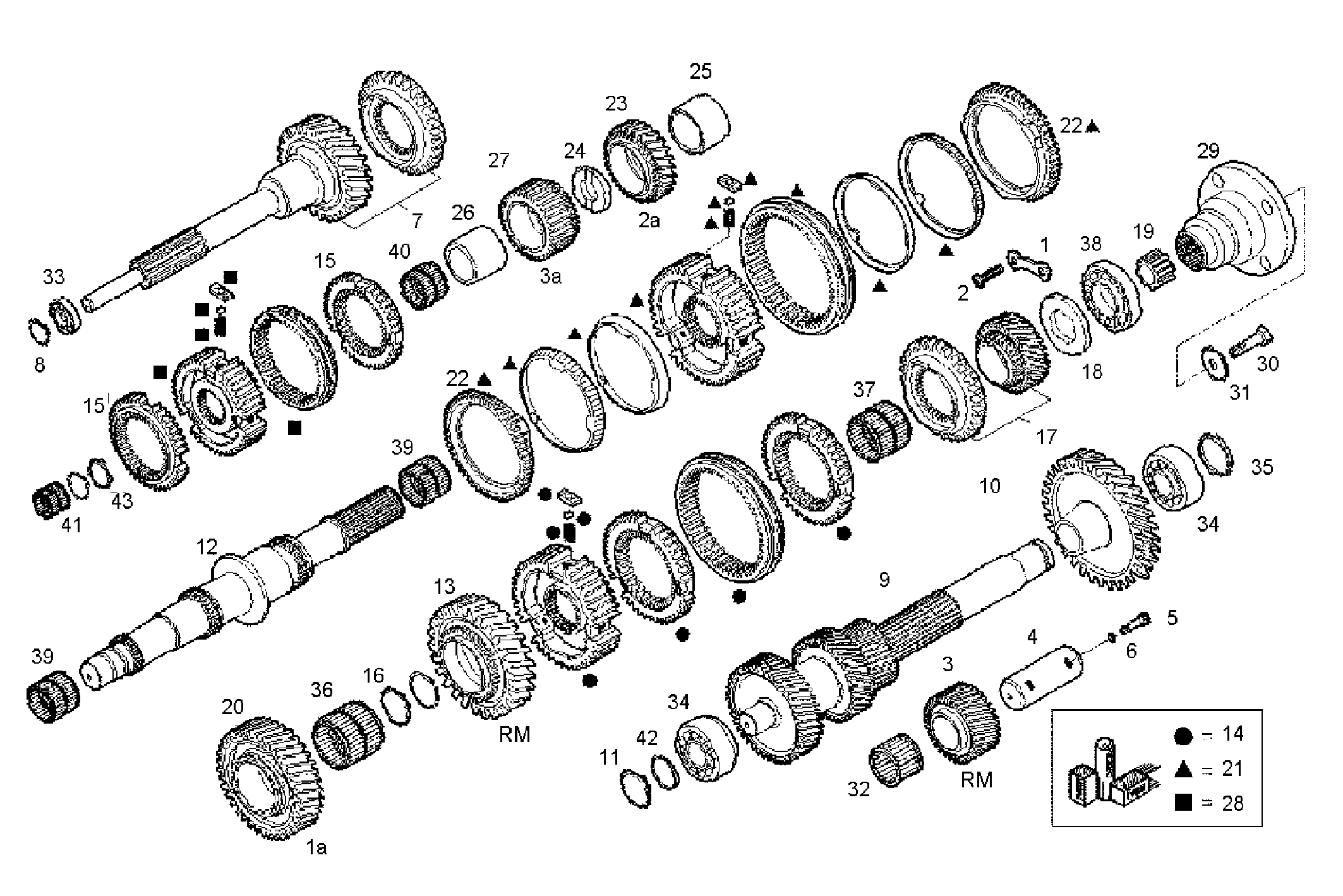

TRANSMISSION
S23ENSC24.10A008 - C — SOFIM HPI 2.3L - EURO 3
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8868889 | LOCKING PLATE LOCKING PLATE | 4 | |
| 2 | 8871238 | C'SUNK SCREW C'SUNK SCREW | 8 | |
| 3 | 8868862 | REVERSE GEAR REVERSE GEAR | 1 | |
| 4 | 8868622 | RETURN SHAFT RETURN SHAFT | 1 | |
| 5 | 16691124 | SOCKET-HEAD SCREW SOCKET-HEAD SCREW | 2 | |
| 6 | 8868623 | WASHER WASHER | 2 | |
| 7 | 8870893 | INPUT SHAFT INPUT SHAFT | 1 | |
| 8 | 16879376 | CIRCLIP CIRCLIP | 1 | |
| 9 | 8870880 | COUNTERSHAFT COUNTERSHAFT | 1 | |
| 10 | 8869746 | SPLITTER GEAR SPLITTER GEAR | 1 | |
| 11 | 16879276 | SPRING LOCKWASHER SPRING LOCKWASHER | 1 | |
| 12 | 8869119 | MAIN SHAFT MAIN SHAFT | 1 | |
| 13 | 8870634 | REVERSE GEAR REVERSE GEAR | 1 | |
| 14 | 8870796 | SYNCHRONIZ.COMPLET SYNCHRONIZ.COMPLET | 1 | |
| 15 | 8868628 | SYNCHRONIZER SYNCHRONIZER | 3 | |
| 17 | 8868859 | SPLITTER GEAR SPLITTER GEAR | 1 | |
| 18 | 8870385 | STOP WASHER STOP WASHER | 1 | |
| 19 | 8870889 | SPLITTER GEAR SPLITTER GEAR | 1 | |
| 20 | 8869124 | SPLITTER GEAR SPLITTER GEAR | 1 | |
| 21 | 8870486 | KIT-SYNCHRONIZER KIT-SYNCHRONIZER | 1 | |
| 22 | 8869129 | SYNCHRONIZER SYNCHRONIZER | 2 | |
| 23 | 8869132 | SPLITTER GEAR SPLITTER GEAR | 1 | |
| 24 | 16879476 | CIRCLIP CIRCLIP | 1 | |
| 24 | 8869120 | STOP WASHER STOP WASHER | 1 | |
| 25 | 8869134 | PLUG-IN SLEEVE PLUG-IN SLEEVE | 1 | |
| 26 | 8868885 | PLUG-IN SLEEVE PLUG-IN SLEEVE | 1 | |
| 27 | 8868866 | SPLITTER GEAR SPLITTER GEAR | 1 | |
| 28 | 8869032 | KIT-SYNCHRONIZER KIT-SYNCHRONIZER | 1 | |
| 29 | 8870381 | SHIFT SLEEVE SHIFT SLEEVE | 1 | |
| 30 | 16242734 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 31 | 8868884 | STOP WASHER STOP WASHER | 1 | |
| 32 | 42470816 | ROLLER CAGE ROLLER CAGE | 1 | |
| 33 | 8870887 | BALL BEARING BALL BEARING | 1 | |
| 34 | 42470818 | ROLLER BEARING ROLLER BEARING | 2 | |
| 35 | 42470819 | SET OF SHIMS SET OF SHIMS | 1 | |
| 36 | 42470820 | ROLLER CAGE ROLLER CAGE | 1 | |
| 37 | 42470821 | ROLLER CAGE ROLLER CAGE | 1 | |
| 38 | 8870888 | BALL BEARING BALL BEARING | 1 | |
| 39 | 42470823 | ROLLER CAGE ROLLER CAGE | 2 | |
| 40 | 42430824 | ROLLER CAGE ROLLER CAGE | 1 | |
| 41 | 8871208 | ROLLER CAGE ROLLER CAGE | 1 | |
| 42 | 42430826 | SET OF SHIMS SET OF SHIMS | 1 | |
| 43 | 42430827 | SET OF SHIMS SET OF SHIMS | 1 |
