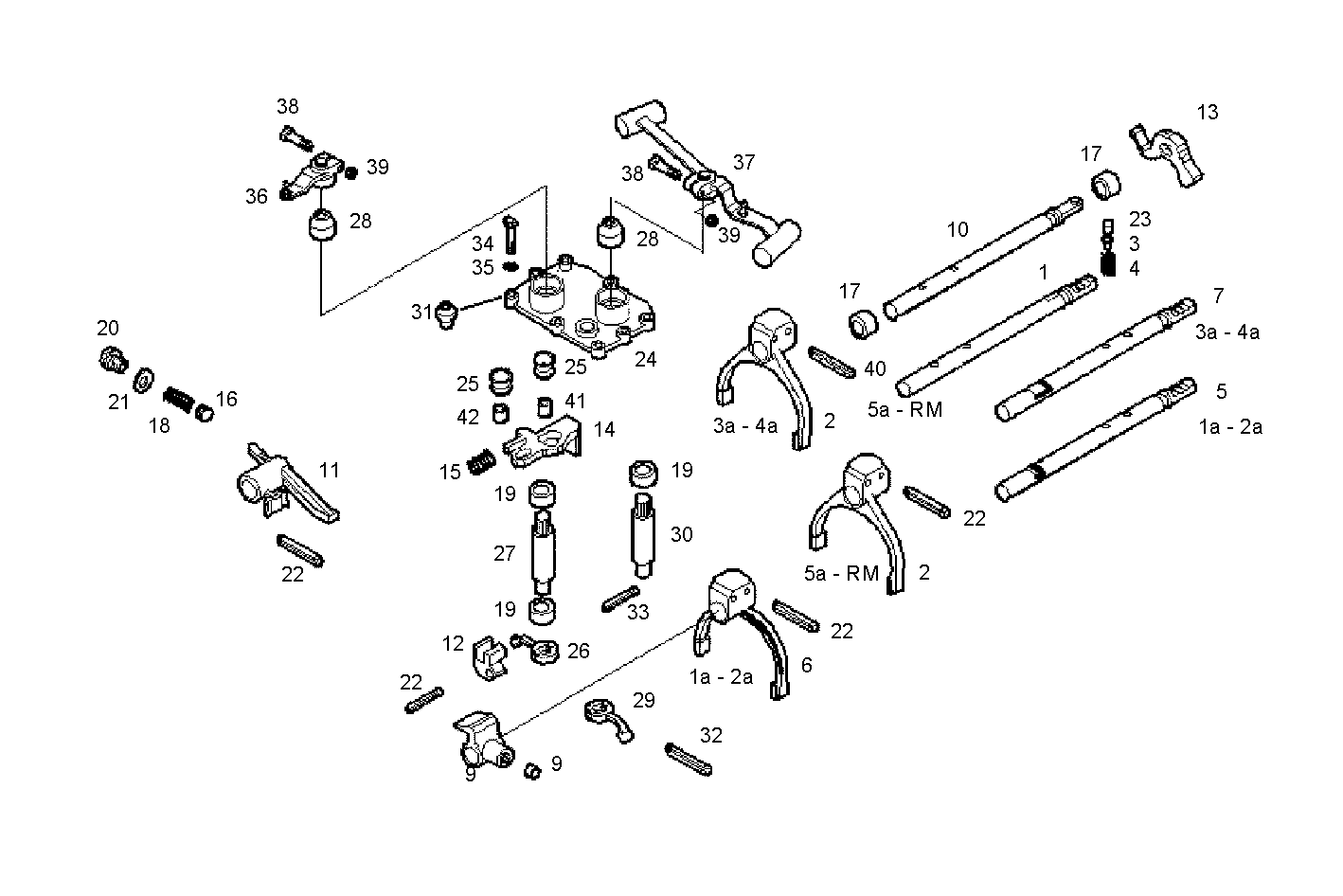

TRANSMISSION

S23ENSC24.10A008 - C — SOFIM HPI 2.3L - EURO 3

Parts List

#	Part No	Name / Description	Qty
1	8869249	SHIFT FORK ROD SHIFT FORK ROD	1
2	8868873	SHIFT FORK SHIFT FORK	2
3	8868646	PIN PIN	3
4	8868647	SPRING SPRING	3
5	8869250	SHIFT FORK ROD SHIFT FORK ROD	1
6	8869135	SHIFT FORK SHIFT FORK	1
7	8869251	SHIFT FORK ROD SHIFT FORK ROD	1
8	8869254	GEAR SELECT.SLEEVE GEAR SELECT.SLEEVE	1
9	8868907	PIN PIN	1
10	8868882	SHIFT FORK ROD SHIFT FORK ROD	1
11	8870501	GEARSEGM.GEARSHIFT GEARSEGM.GEARSHIFT	1
12	8870480	GEAR SELECT.SLEEVE GEAR SELECT.SLEEVE	1
13	8869253	CLAMPING PLATE CLAMPING PLATE	1
14	8869256	CLAMPING PLATE CLAMPING PLATE	1
15	8868646	PIN PIN	1
16	8869692	GUIDE ROLLER GUIDE ROLLER	1
17	42470815	ROLLER CAGE ROLLER CAGE	2
18	8868650	SPRING SPRING	1
19	8868914	ROLLER CAGE ROLLER CAGE	3
20	8868652	PLUG PLUG	1
21	16508460	WASHER WASHER	1
22	17257570	DOWEL PIN DOWEL PIN	8
23	16988001	PLUG PLUG	3
24	8868879	HOUSING HOUSING	1
25	40102753	SHAFT SEAL SHAFT SEAL	2
26	8870482	LEVER LEVER	1
27	8868878	GEAR SHIFT SHAFT GEAR SHIFT SHAFT	1
28	8868600	CAP CAP	2
29	8870799	LEVER LEVER	1
30	8868877	GEAR SHIFT SHAFT GEAR SHIFT SHAFT	1
31	17999691	BREATHER BREATHER	1
32	17259470	DOWEL PIN DOWEL PIN	2
33	17256070	DOWEL PIN DOWEL PIN	1
34	16605824	HEXAGON BOLT HEXAGON BOLT	8
35	16665514	WASHER WASHER	23
36	500342962	LEVER LEVER	1
37	500342963	GEARSHIFT LEVER GEARSHIFT LEVER	1
38	16605934	HEXAGON BOLT HEXAGON BOLT	2
39	17042531	HEXAGON NUT HEXAGON NUT	2
40	18078814	PARALLEL PIN PARALLEL PIN	2
41	18081210	PARALLEL PIN PARALLEL PIN	1
42	18081110	PARALLEL PIN PARALLEL PIN	1
