ACCESSORIES

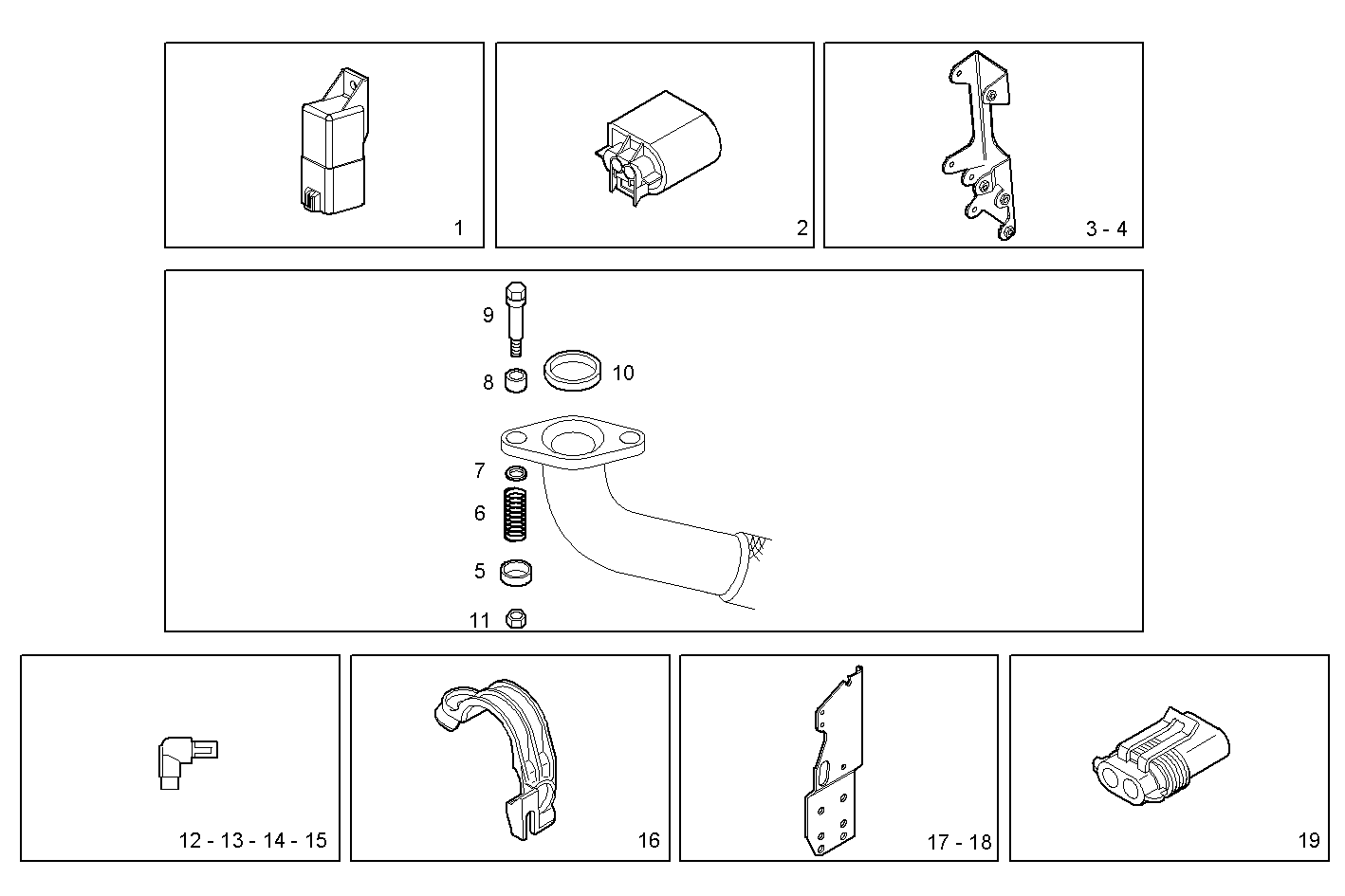

S23ENSC24.10A009 — SOFIM HPI 2.3L - EURO 3
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 504013085 | ELECTR.CONTR.UNIT ELECTR.CONTR.UNIT | 1 | |
| 2 | 8030896 | CONNECTION CONNECTION | 1 | |
| 3 | 99487945 | RETAINER RETAINER | 1 | |
| 4 | 500333124 | RETAINER RETAINER | 1 | |
| 5 | 9150917480 | COVER COVER | 2 | |
| 6 | 9607970680 | SPRING SPRING | 2 | |
| 7 | 9603945980 | WASHER WASHER | 2 | |
| 8 | 9150951680 | BUSH BUSH | 2 | |
| 9 | 9152127080 | SCREW SCREW | 2 | |
| 10 | 9603895480 | RING RING | 2 | |
| 11 | 14058419 | NUT NUT | 2 | |
| 12 | 99466089 | WIRE CONNECTOR WIRE CONNECTOR | 1 | |
| 13 | 99467579 | TERMINAL TERMINAL | 4 | |
| 14 | 99472719 | PROTECTION PROTECTION | 1 | |
| 15 | 98458120 | GASKET GASKET | 4 | |
| 16 | 504045490 | FASTENING BRACKET FASTENING BRACKET | 2 | |
| 17 | 504052019 | RETAINER RETAINER | 1 | |
| 18 | 504052020 | RETAINER RETAINER | 1 | |
| 19 | 8033710 | CONNECTION CONNECTION | 1 |
