ACCESSORIES

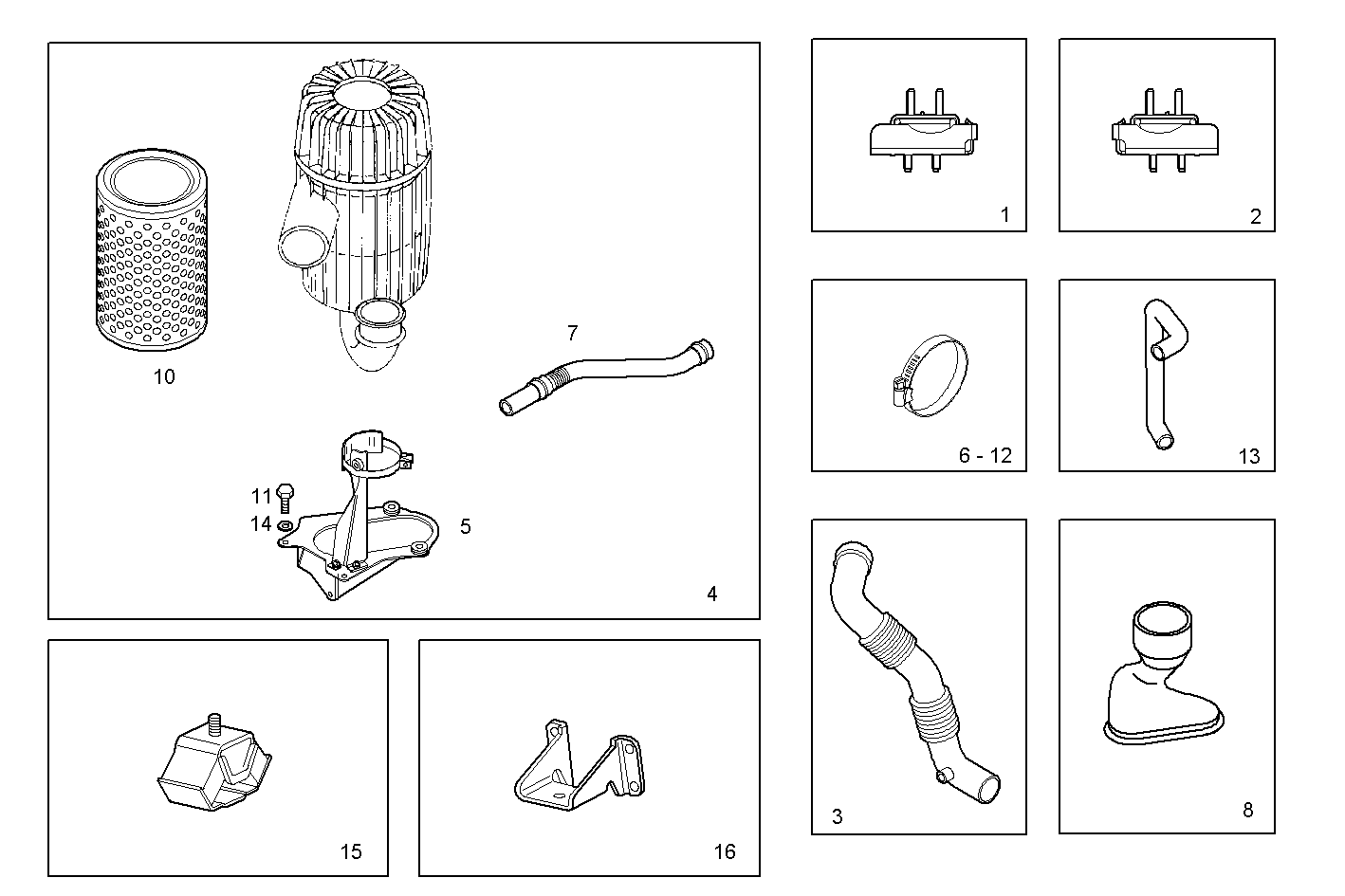

S23ENSC24.10A010 — SOFIM HPI 2.3L - EURO 3
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 504046292 | ENGINE SILENTBLOCK ENGINE SILENTBLOCK | 1 | |
| 2 | 504046294 | ENGINE SILENTBLOCK ENGINE SILENTBLOCK | 1 | |
| 3 | 504069779 | FILTER HOSE FILTER HOSE | 1 | |
| 4 | 504054587 | AIR CLEANER AIR CLEANER | 1 | |
| 5 | 504054585 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 6 | 18089191 | CLIP CLIP | 1 | |
| 7 | 500396509 | BREATHER PIPE BREATHER PIPE | 1 | |
| 8 | 500325384 | AIR INDUCT.FILTER AIR INDUCT.FILTER | 1 | |
| 10 | 1903669 | AIR FILTER ELEMENT AIR FILTER ELEMENT | 1 | |
| 11 | 16604024 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 12 | 13130470 | CLIP CLIP | 1 | |
| 13 | 504032760 | SUCTION LINE SUCTION LINE | 1 | |
| 14 | 12647724 | WASHER WASHER | 1 | |
| 15 | 504085410 | DOWEL DOWEL | 1 | |
| 16 | 504066007 | RETAINER RETAINER | 1 |
