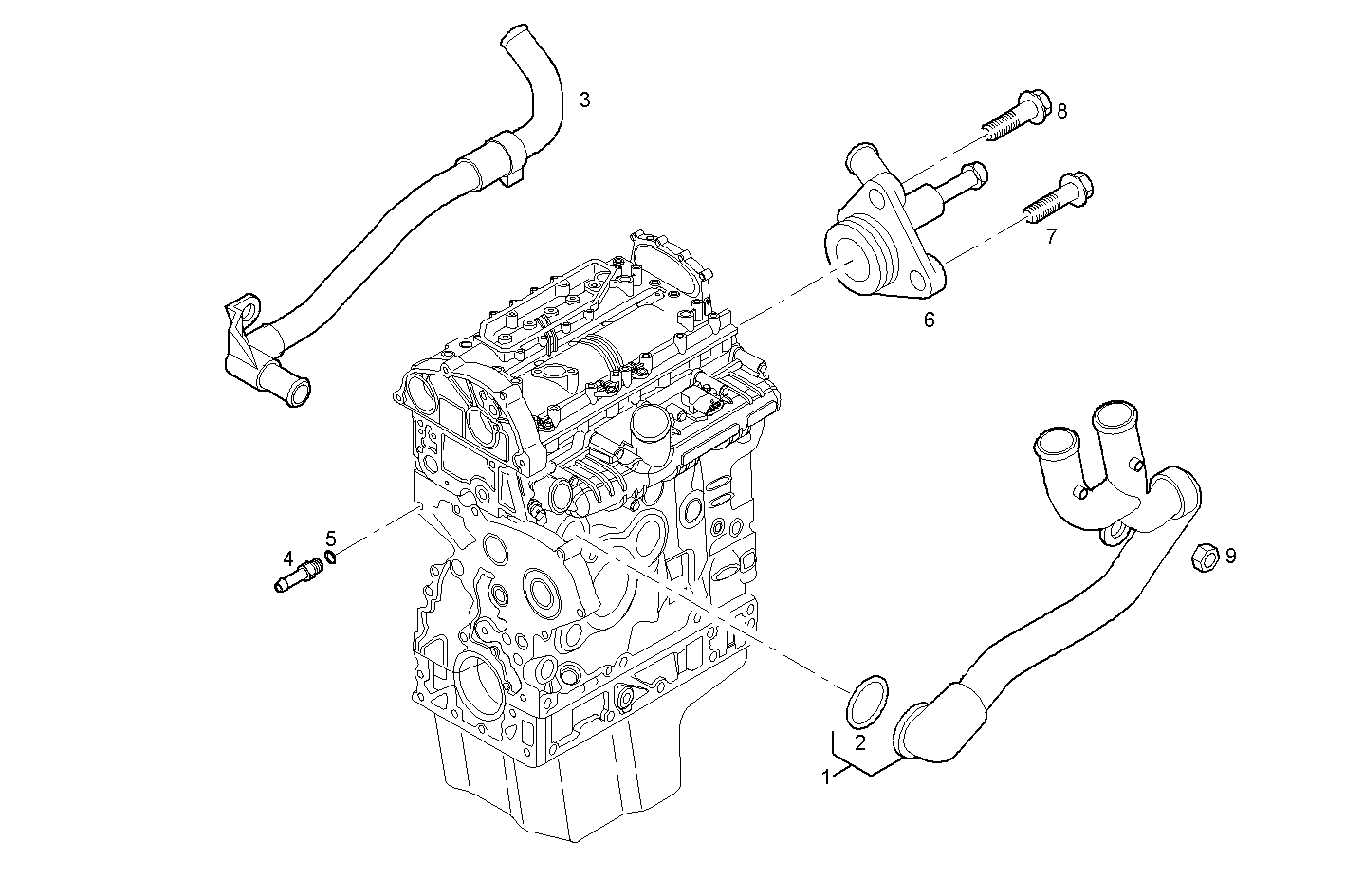

WATER LINES
F1AE0481G*A001 — SOFIM HPI 2.3L - EURO 4
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 504136951 | WATER PIPE WATER PIPE | 1 | |
| 2 | 17288480 | O-RING O-RING | 1 | |
| 3 | 504158738 | WATER PIPE WATER PIPE | 1 | |
| 4 | 500389975 | CONNECTION PIPE CONNECTION PIPE | 1 | |
| 5 | 10260160 | SEAL GASKET SEAL GASKET | 1 | |
| 6 | 504176864 | ELBOW COUPLING ELBOW COUPLING | 1 | |
| 7 | 16673635 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 8 | 18137825 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 9 | 17044725 | HEXAGON NUT HEXAGON NUT | 1 |
