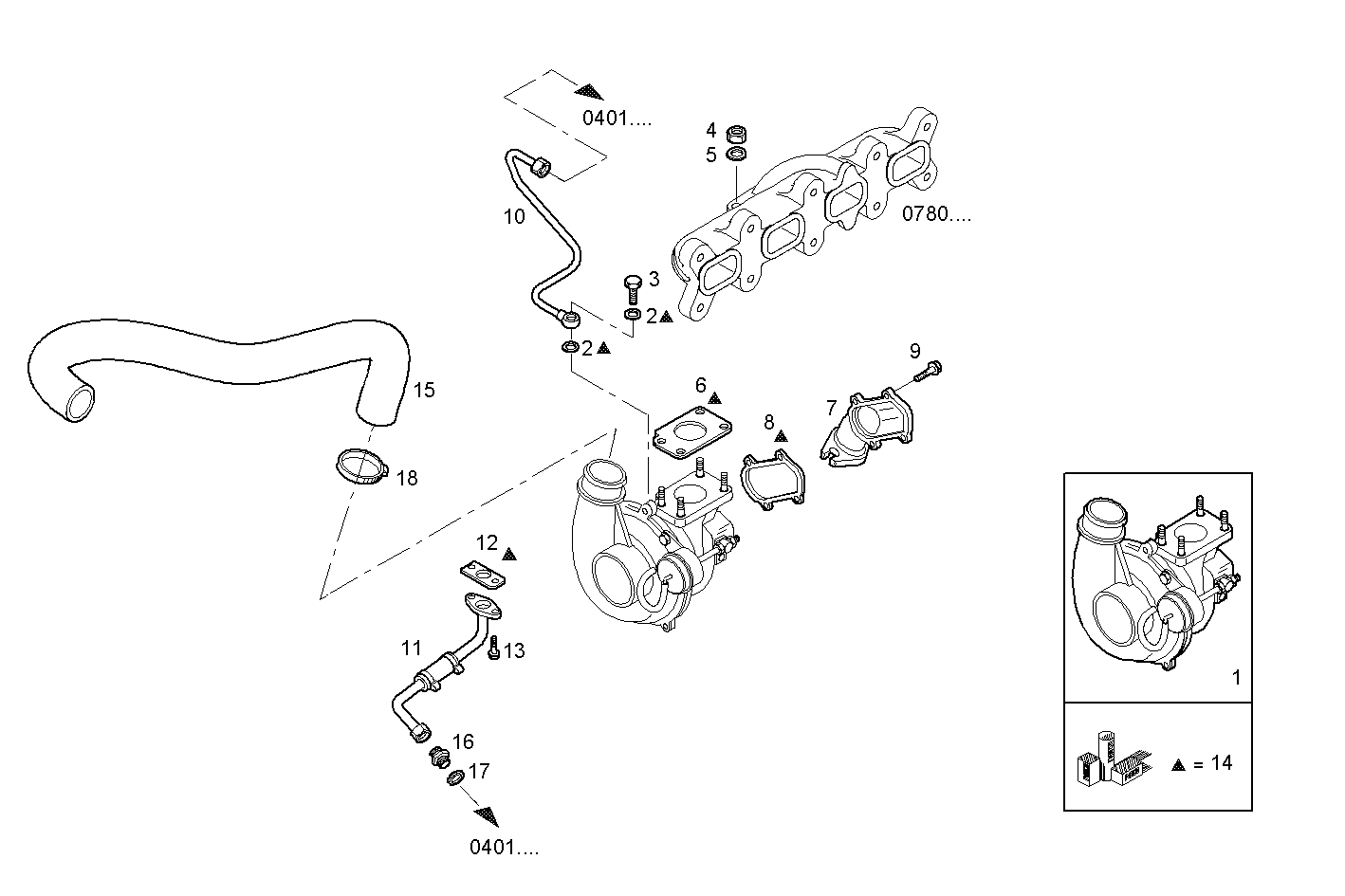

TURBOCHARGER
F1AE0481L*A001 — SOFIM HPI 2.3L - TIER 2
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 504154739 | TURBOCHARGER TURBOCHARGER | 1 | |
| 2 | 4858607 | WASHER WASHER | 2 | |
| 3 | 504081281 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 4 | 500322677 | HEXAGON NUT HEXAGON NUT | 4 | |
| 5 | 17094914 | WASHER WASHER | 4 | |
| 6 | 500378462 | EXH. MANIFOLD GKT EXH. MANIFOLD GKT | 1 | |
| 7 | 504076692 | AIR PIPE/DUCT AIR PIPE/DUCT | 2 | |
| 8 | 98484659 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 9 | 16673735 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 10 | 504044738 | OIL LINE OIL LINE | 1 | |
| 11 | 504106695 | OIL LINE OIL LINE | 1 | |
| 12 | 500370706 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 13 | 16585825 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 14 | 2992533 | KIT-SEAL.GASKETS KIT-SEAL.GASKETS | 1 | |
| 15 | 504112198 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 16 | 504102023 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 17 | 11270460 | GASKET GASKET | 1 | |
| 18 | 504017114 | CLIP CLIP | 1 |
