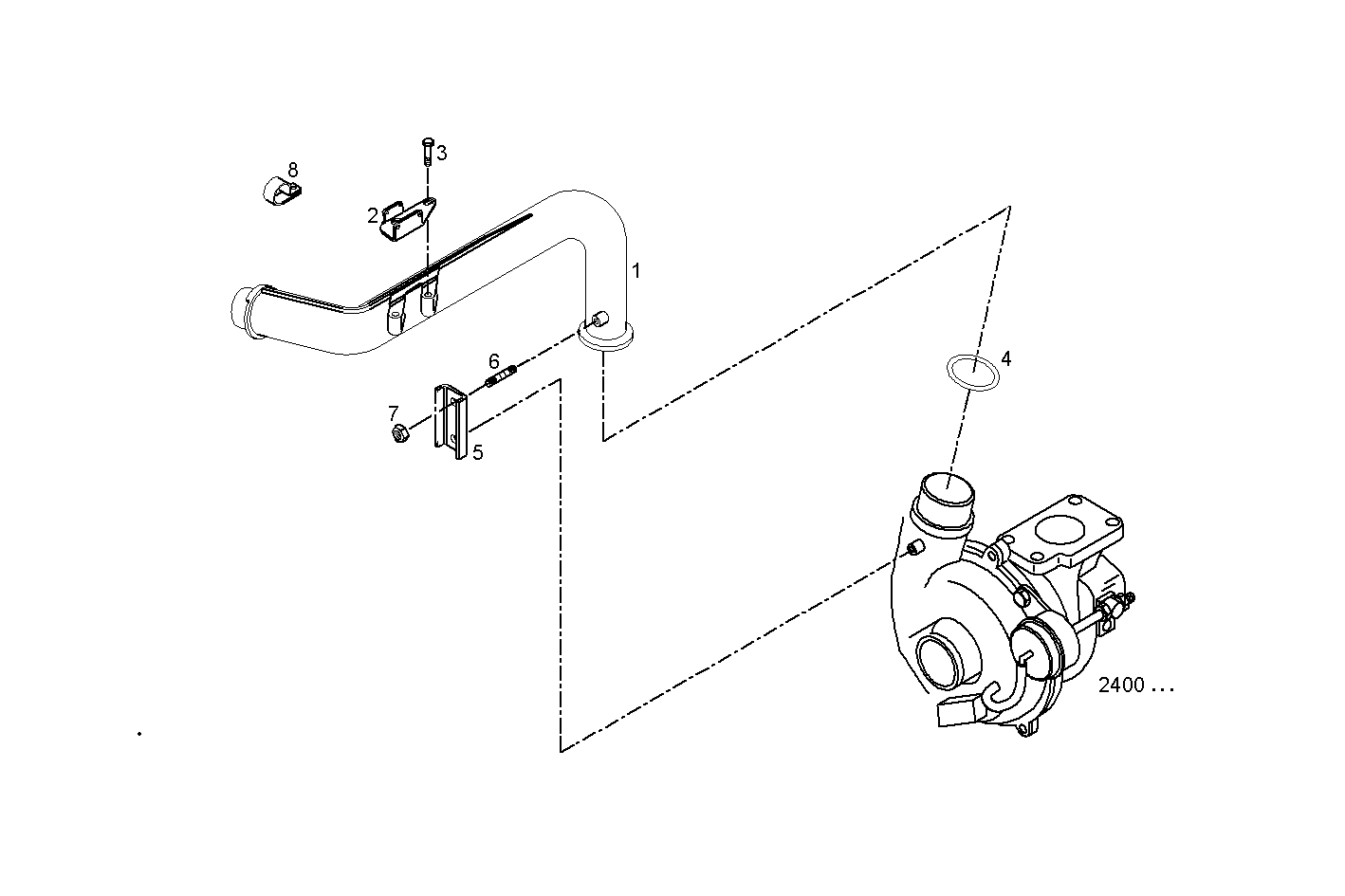

EXIT AIR PIPE
F1CE0481B*A001 — SOFIM HPI 3.0L - EURO 3
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 504091121 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 2 | 504087305 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 3 | 16673635 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 4 | 14471181 | O-RING O-RING | 1 | |
| 5 | 504120583 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 6 | 504104321 | STUD STUD | 1 | |
| 7 | 17044625 | HEXAGON NUT HEXAGON NUT | 1 | |
| 8 | 17315290 | LOCK/YOKE LOCK/YOKE | 2 | |
| 9 | 18137825 | HEXAGON BOLT HEXAGON BOLT | 1 |
