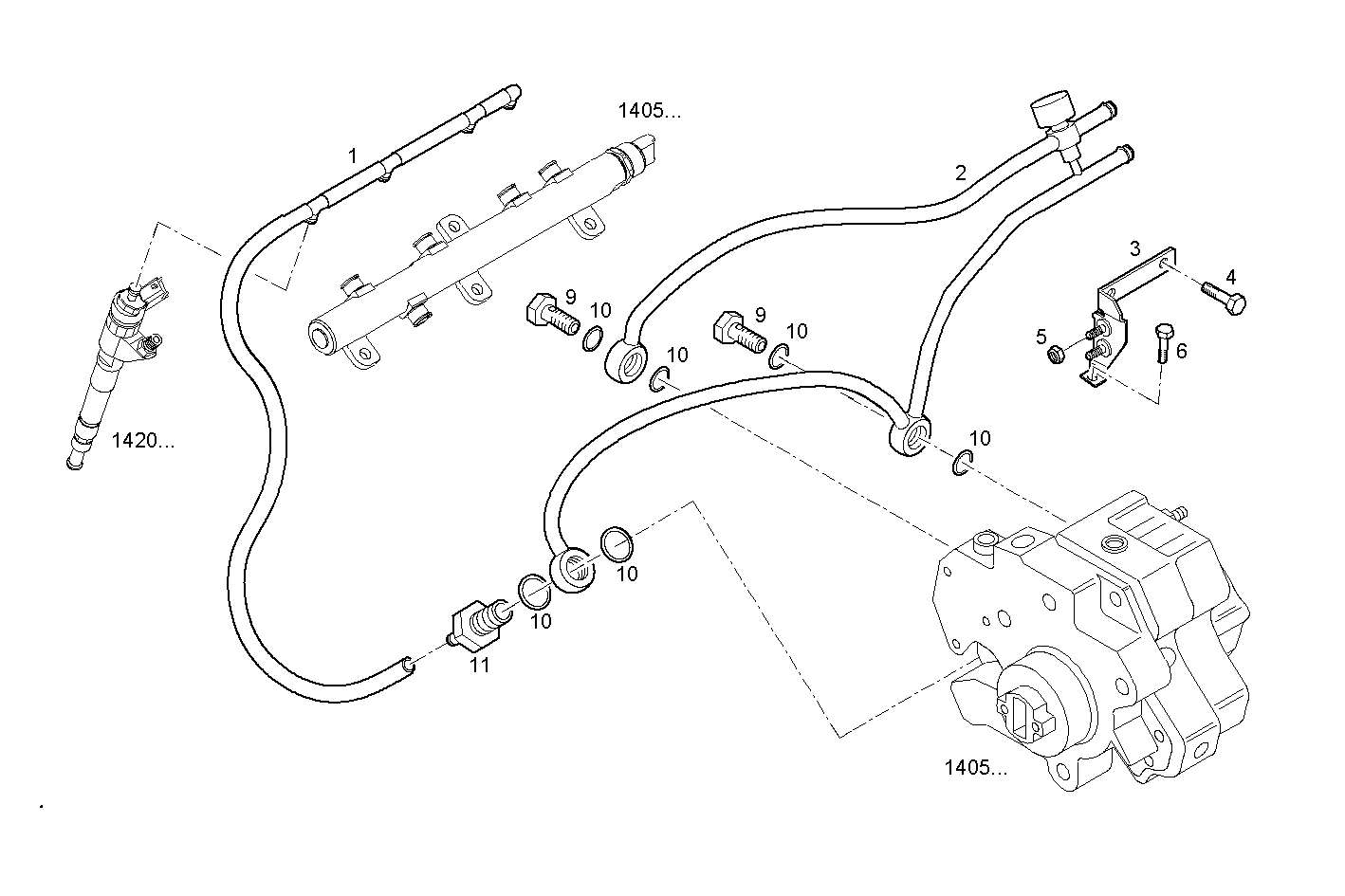

FUEL LINES
F1CE0481B*A001 — SOFIM HPI 3.0L - EURO 3
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 504024564 | FUEL LINE FUEL LINE | 1 | |
| 2 | 504090435 | FUEL LINE FUEL LINE | 1 | |
| 3 | 504061566 | RETAINER RETAINER | 1 | |
| 4 | 18137825 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 5 | 17044625 | HEXAGON NUT HEXAGON NUT | 2 | |
| 6 | 16673635 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 9 | 4864082 | BANJO BOLT BANJO BOLT | 2 | |
| 10 | 10298460 | SEAL GASKET SEAL GASKET | 6 | |
| 11 | 500391535 | SCREW CONNECTOR SCREW CONNECTOR | 1 |
