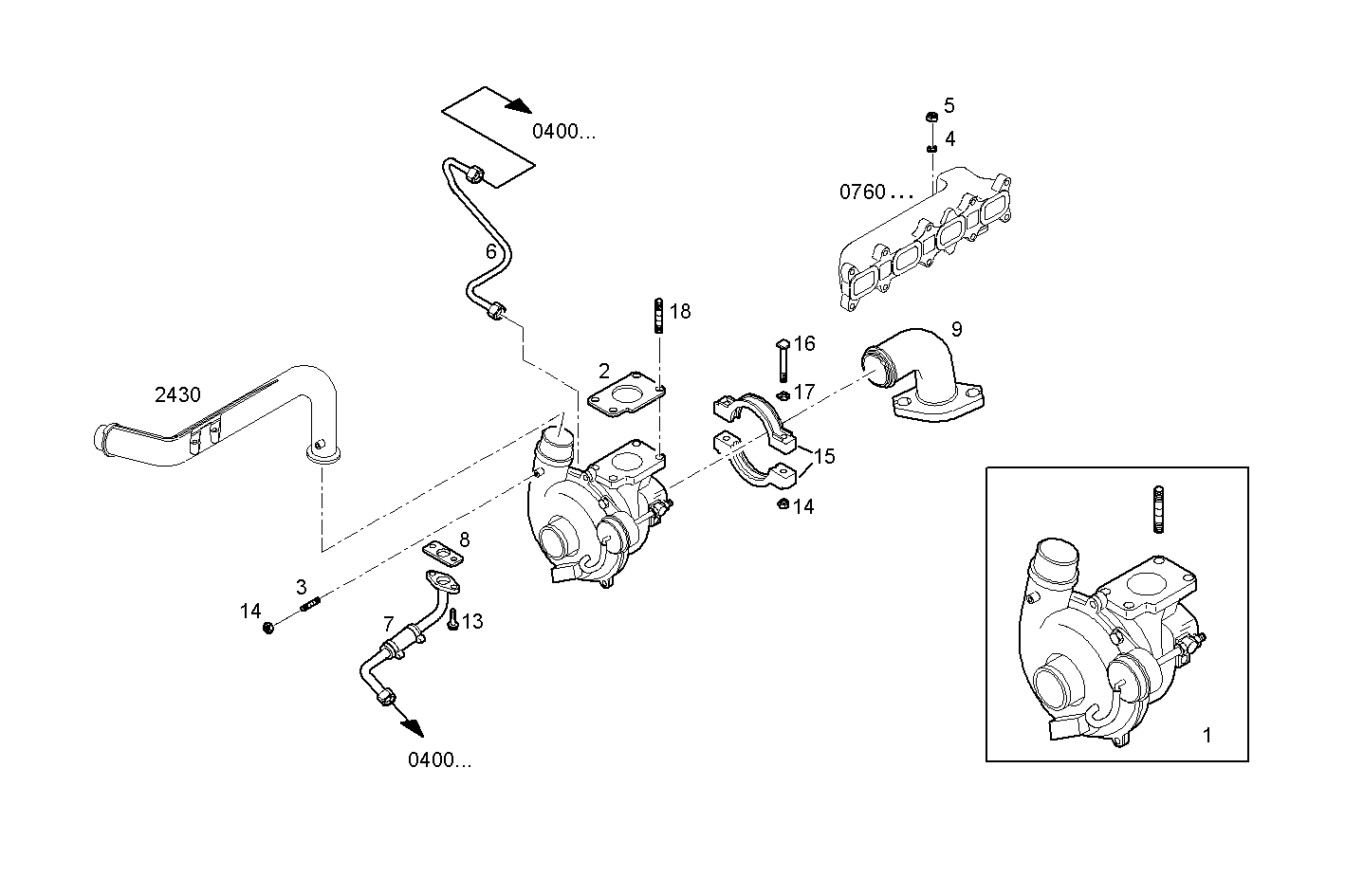

TURBOCHARGER
F1CE0481B*A001 — SOFIM HPI 3.0L - EURO 3
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 504093025 | TURBOCHARGER TURBOCHARGER | 1 | |
| 2 | 4834948 | EXH. MANIFOLD GKT EXH. MANIFOLD GKT | 1 | |
| 3 | 504104321 | STUD STUD | 1 | |
| 4 | 17094914 | WASHER WASHER | 4 | |
| 5 | 500322677 | HEXAGON NUT HEXAGON NUT | 5 | |
| 6 | 504107714 | OIL LINE OIL LINE | 1 | |
| 7 | 504070682 | OIL LINE OIL LINE | 1 | |
| 8 | 500370706 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 9 | 504048189 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 13 | 16585825 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 14 | 17044625 | HEXAGON NUT HEXAGON NUT | 1 | |
| 15 | 500377680 | HALF-RING HALF-RING | 2 | |
| 16 | 500378050 | SCREW SCREW | 2 | |
| 17 | 500378052 | WASHER WASHER | 2 | |
| 18 | 16729424 | STUD STUD | 4 | |
| 19 | 504120931 | CLIP CLIP | 1 | |
| 20 | 18137825 | HEXAGON BOLT HEXAGON BOLT | 1 |
