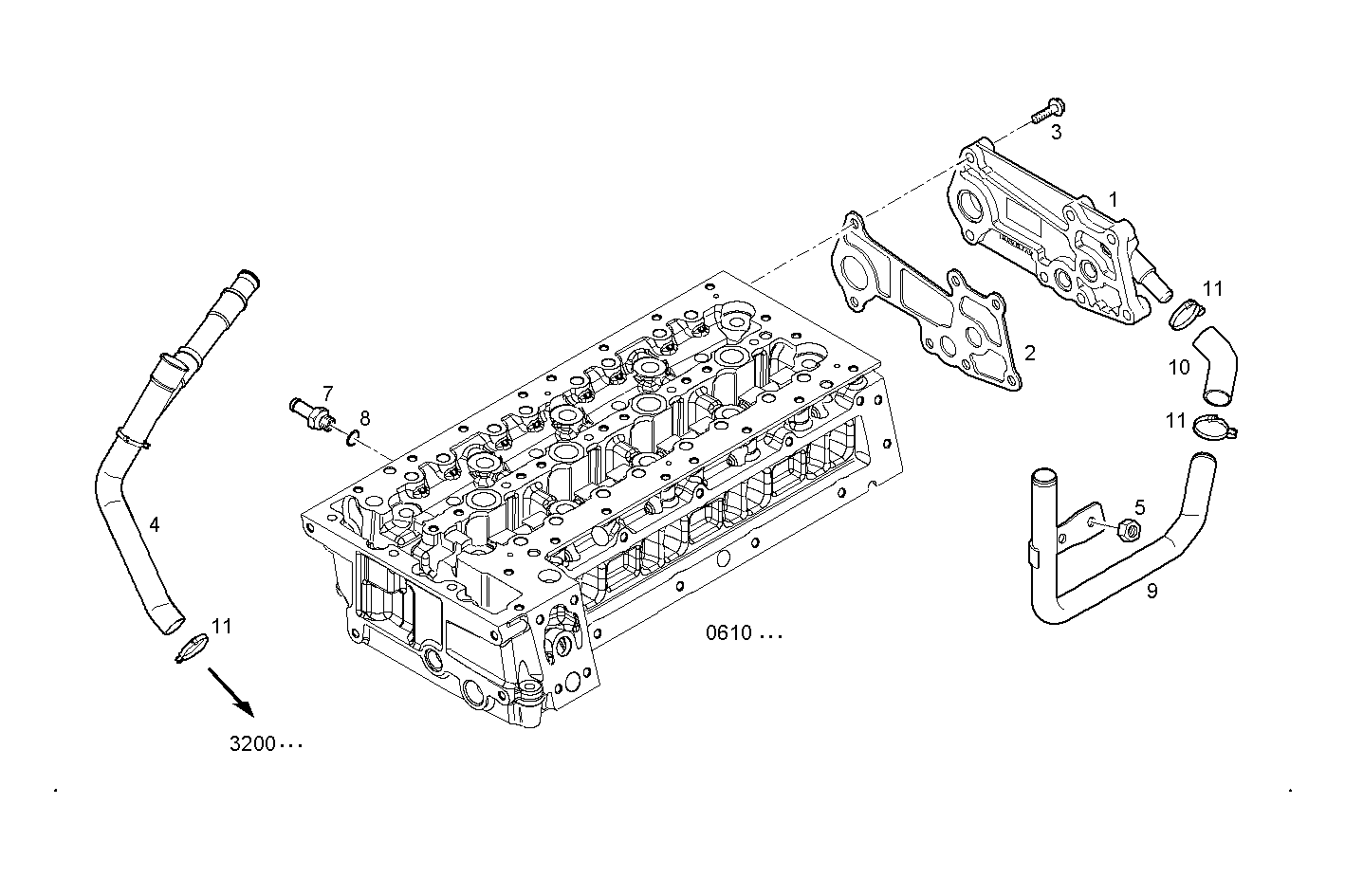

WATER LINES
F1CE0481B*A001 — SOFIM HPI 3.0L - EURO 3
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 504086910 | CYL. HEAD COVER CYL. HEAD COVER | 1 | |
| 2 | 504090818 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 3 | 16586625 | HEXAGON BOLT HEXAGON BOLT | 7 | |
| 4 | 504095970 | HEATING TUBE HEATING TUBE | 1 | |
| 5 | 17044725 | HEXAGON NUT HEXAGON NUT | 1 | |
| 7 | 500389975 | CONNECTION PIPE CONNECTION PIPE | 1 | |
| 8 | 10260160 | SEAL GASKET SEAL GASKET | 1 | |
| 9 | 504086913 | HEATING TUBE HEATING TUBE | 1 | |
| 10 | 504096130 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 11 | 18088492 | CLIP CLIP | 5 | |
| 12 | 504158477 | CONNECTION PIPE CONNECTION PIPE | 1 |
