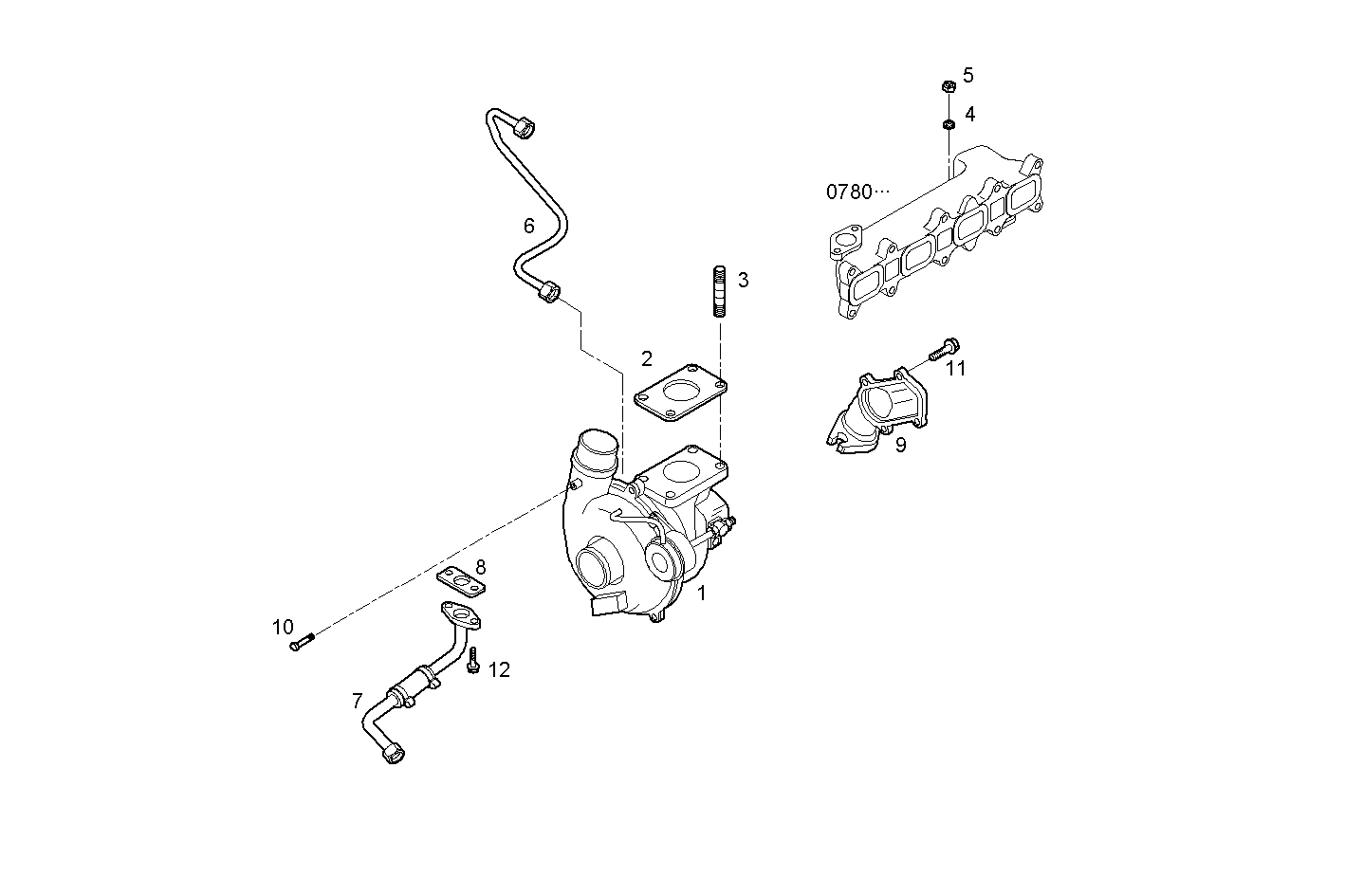

TURBOCHARGER
F1CE0481F*A001 — SOFIM HPI 3.0L - EURO 4
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 504137713 | TURBOCHARGER TURBOCHARGER | 1 | |
| 2 | 48934948 | EXH. MANIFOLD GKT EXH. MANIFOLD GKT | 1 | |
| 3 | 16729424 | STUD STUD | 4 | |
| 4 | 17094914 | WASHER WASHER | 4 | |
| 5 | 500322677 | HEXAGON NUT HEXAGON NUT | 4 | |
| 6 | 504107712 | OIL LINE OIL LINE | 1 | |
| 7 | 504085335 | OIL LINE OIL LINE | 1 | |
| 8 | 500370706 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 9 | 504131857 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 10 | 18137825 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 11 | 16673735 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 12 | 16585825 | HEXAGON BOLT HEXAGON BOLT | 2 |
