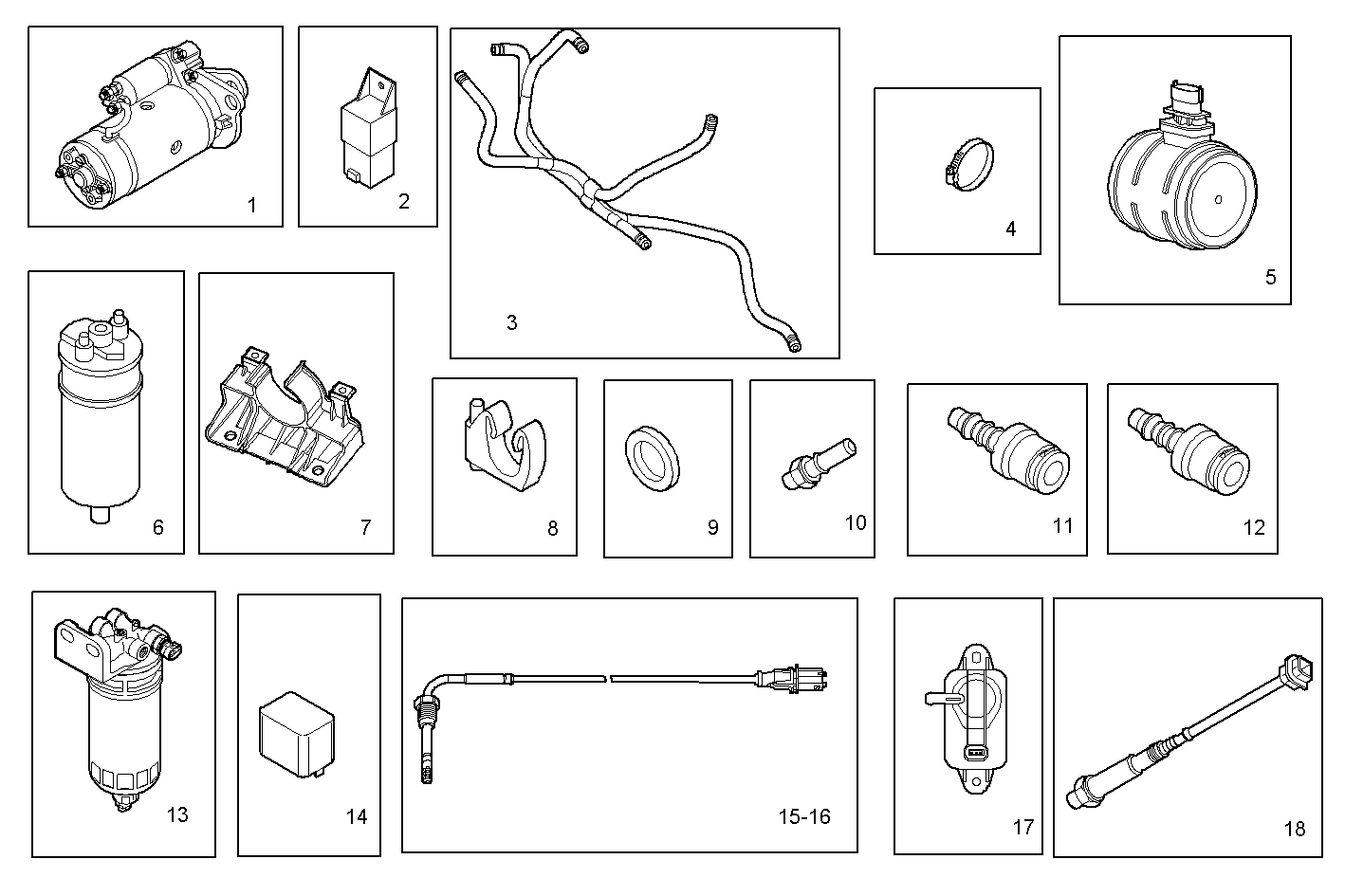

ACCESSORIES
S30ENT422.10P002 — SOFIM HPI 3.0L - EURO 4
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8029647 | STARTER MOTOR STARTER MOTOR | 1 | |
| 2 | 69500830 | ELECTR.CONTR.UNIT ELECTR.CONTR.UNIT | 1 | |
| 3 | 504134167 | WATER PIPE WATER PIPE | 1 | |
| 4 | 18088294 | CLIP CLIP | 6 | |
| 5 | 504136035 | PRESSURE GAUGE PRESSURE GAUGE | 1 | |
| 6 | 504125595 | PUMP PUMP | 1 | |
| 7 | 504066074 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 8 | 500350985 | SPRING CLAMP SPRING CLAMP | 1 | |
| 9 | 10284460 | SEAL GASKET SEAL GASKET | 1 | |
| 10 | 500344937 | THREADED UNION THREADED UNION | 2 | |
| 11 | 500373710 | PIPE SOCKET PIPE SOCKET | 4 | |
| 12 | 500373711 | PIPE SOCKET PIPE SOCKET | 3 | |
| 13 | 504080664 | FUEL FILTER FUEL FILTER | 1 | |
| 14 | 504049024 | RELAY RELAY | 1 | |
| 15 | 504109529 | SENSOR SENSOR | 1 | |
| 16 | 504102603 | SENSOR SENSOR | 1 | |
| 17 | 504102810 | SENSOR SENSOR | 1 | |
| 18 | 504135503 | SENSOR SENSOR | 1 |
