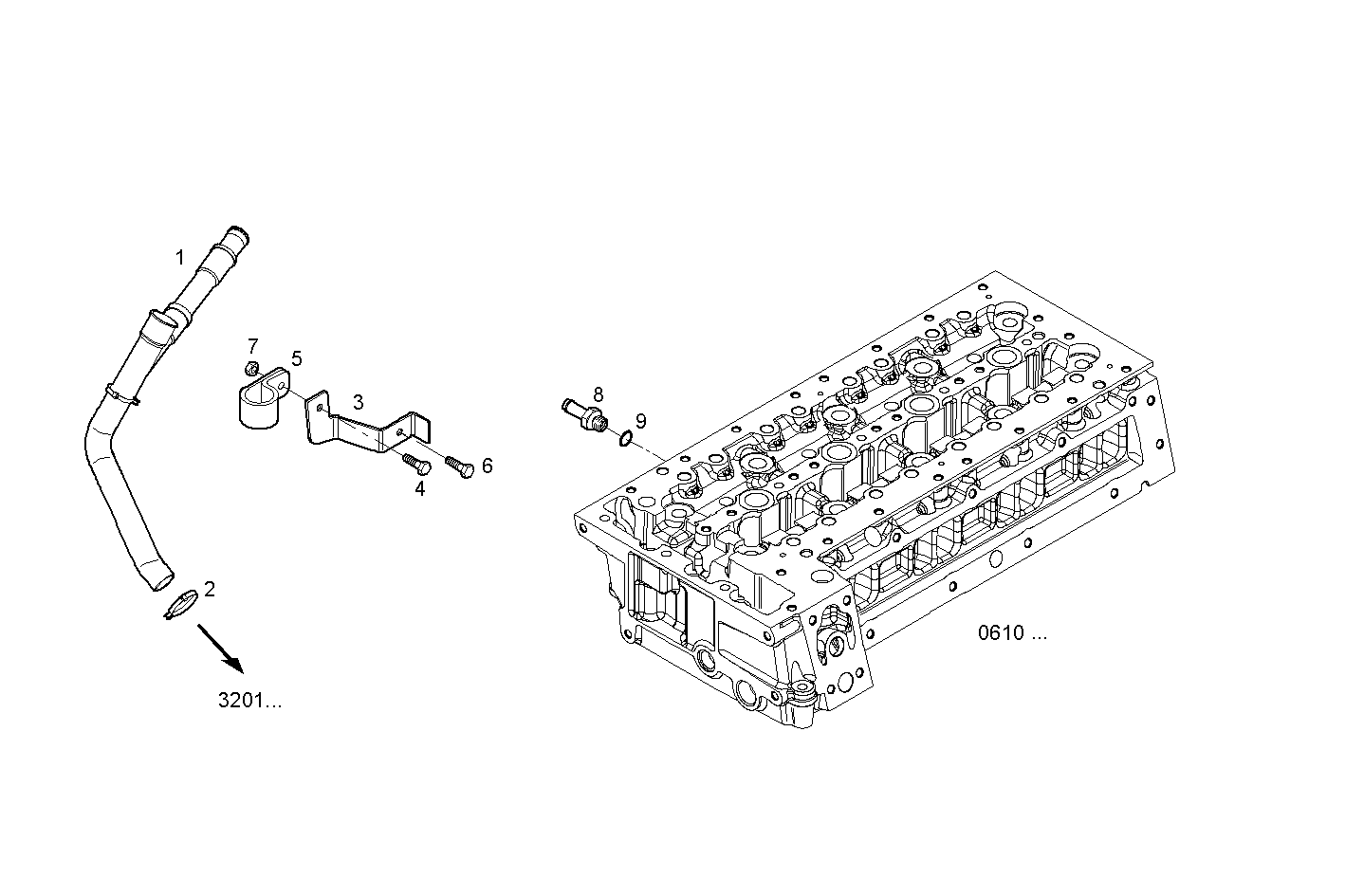

DELIV. HEATING PIPE
S30ENT422.10P002 — SOFIM HPI 3.0L - EURO 4
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 504136998 | HEATING TUBE HEATING TUBE | 1 | |
| 2 | 98463348 | CLIP CLIP | 1 | |
| 3 | 504136999 | RETAINER RETAINER | 1 | |
| 4 | 16673635 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 5 | 17315290 | LOCK/YOKE LOCK/YOKE | 1 | |
| 6 | 16596924 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 7 | 17044721 | HEXAGON NUT HEXAGON NUT | 1 | |
| 8 | 500389975 | CONNECTION PIPE CONNECTION PIPE | 1 | |
| 9 | 10260160 | SEAL GASKET SEAL GASKET | 1 |
