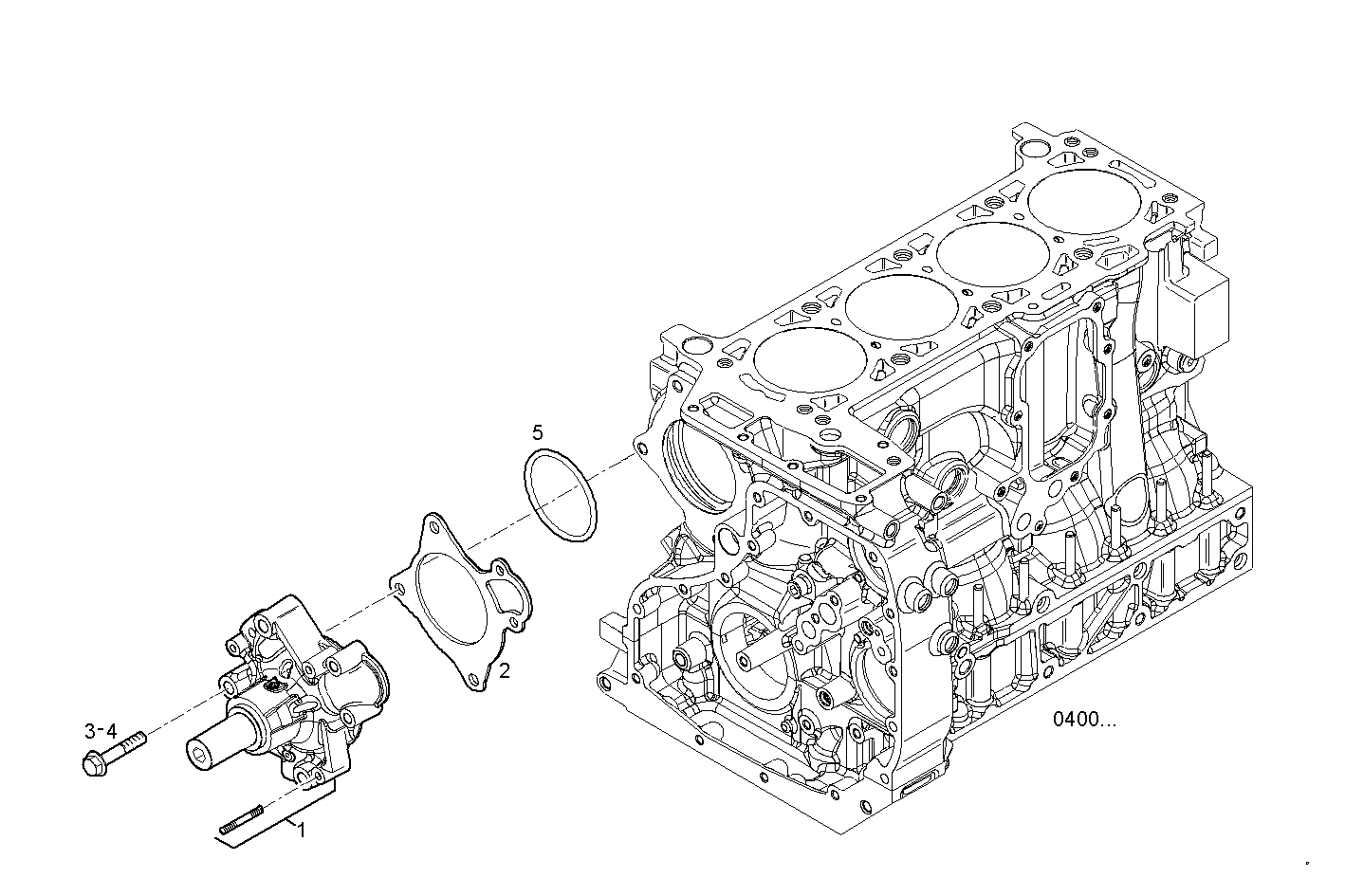

WATER PUMP
S30ENT422.10P002 — SOFIM HPI 3.0L - EURO 4
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 504113544 | WATER PUMP WATER PUMP | 1 | |
| 2 | 504080013 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 3 | 16587724 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 4 | 16586825 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 6 | 17285681 | O-RING O-RING | 1 |
