ACCESSORIES
S30ENTM23.10 — SOFIM HPI 3.0L

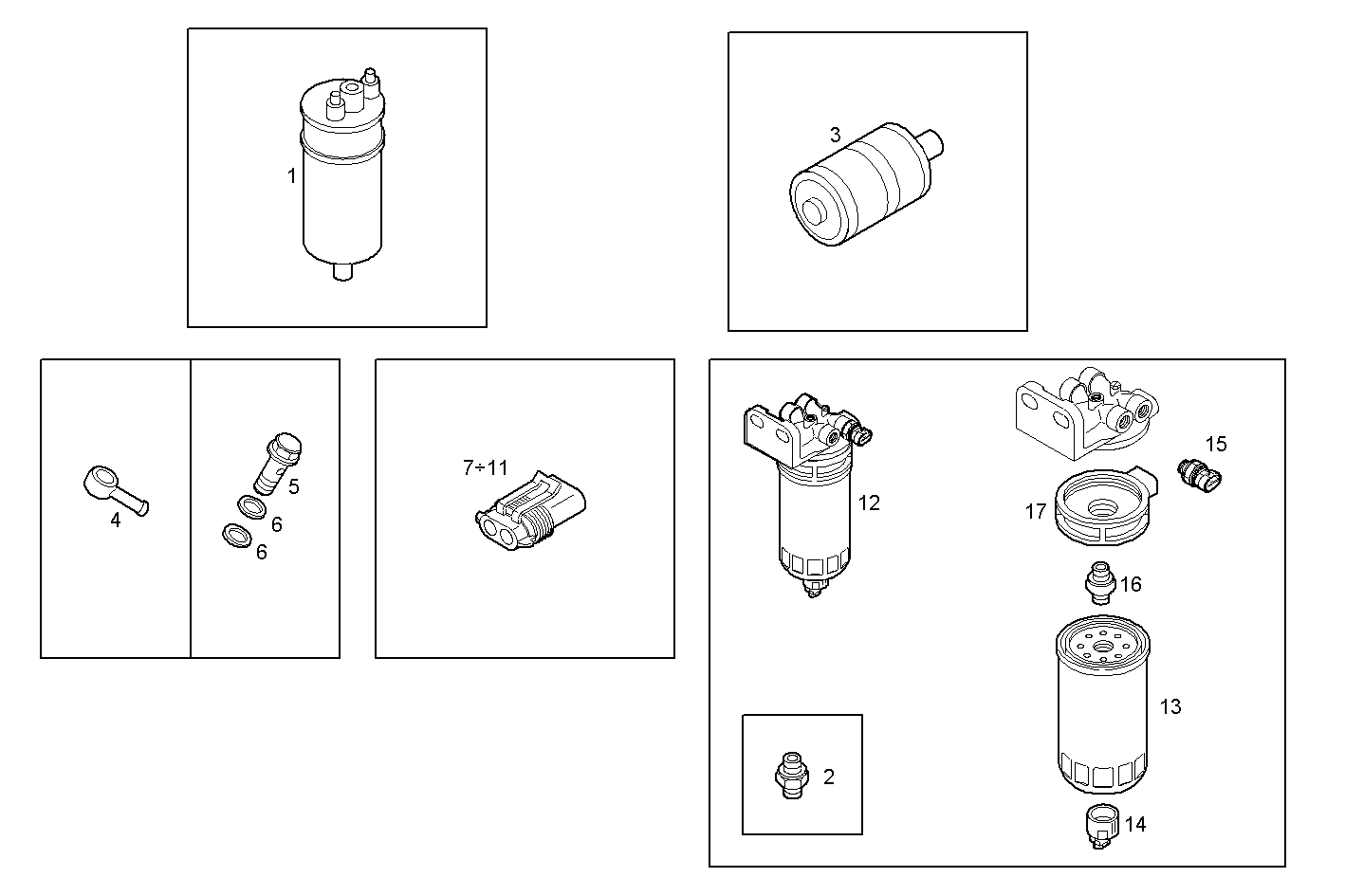

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 500366053 | PUMP PUMP | 1 | |
| 2 | 42546346 | THREADED UNION THREADED UNION | 1 | |
| 3 | 500318246 | PREFILTER PREFILTER | 1 | |
| 4 | 98413896 | PIPE SOCKET PIPE SOCKET | 1 | |
| 5 | 4864083 | SCREW CONNECTOR SCREW CONNECTOR | 2 | |
| 6 | 98474308 | SEAL GASKET SEAL GASKET | 4 | |
| 7 | 8033203 | WIRE CONNECTOR WIRE CONNECTOR | 1 | |
| 8 | 8044704 | WIRE CONNECTOR WIRE CONNECTOR | 1 | |
| 9 | 8044705 | WIRE CONNECTOR WIRE CONNECTOR | 1 | |
| 10 | 8033710 | CONNECTION CONNECTION | 1 | |
| 11 | 8044707 | CONNECTION CONNECTION | 1 | |
| 12 | 504080664 | FUEL FILTER FUEL FILTER | 1 | |
| 13 | 2992300 | FUEL FILTER ELEM. FUEL FILTER ELEM. | 1 | |
| 14 | 42536684 | SENSOR SENSOR | 1 | |
| 15 | 42539166 | SENSOR SENSOR | 1 | |
| 16 | 42542688 | THREADED UNION THREADED UNION | 1 | |
| 17 | 42546345 | HEATER FUEL FILTE HEATER FUEL FILTE | 1 |
