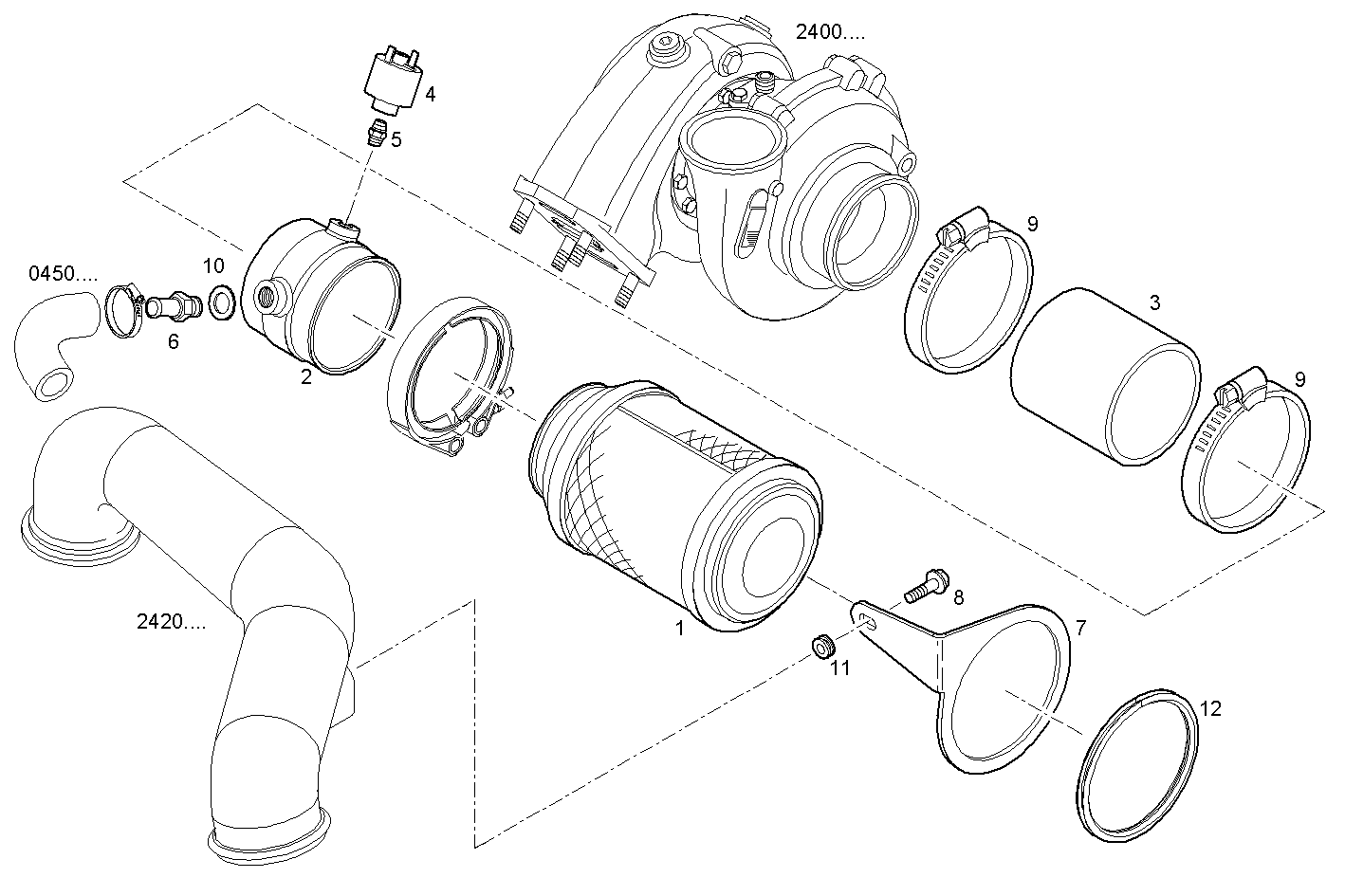

AIR CLEANER
S30ENTM23.10 — SOFIM HPI 3.0L
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8040711 | AIR CLEANER AIR CLEANER | 1 | |
| 2 | 8040712 | AIR MANIFOLD AIR MANIFOLD | 1 | |
| 3 | 8012242 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 4 | 8027423 | CHOCKED FILTER INDIC. CHOCKED FILTER INDIC. | 1 | |
| 5 | 8009522 | PIPE SOCKET PIPE SOCKET | 1 | |
| 6 | 8045024 | PIPE SOCKET PIPE SOCKET | 1 | |
| 7 | 8042412 | RETAINER RETAINER | 1 | |
| 8 | 16673635 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 9 | 17765494 | CLIP CLIP | 2 | |
| 10 | 4858609 | WASHER WASHER | 1 | |
| 11 | 4833816 | INSULATING RING INSULATING RING | 1 | |
| 12 | 8043521 | RUBBER GASKET RUBBER GASKET | 1 |
