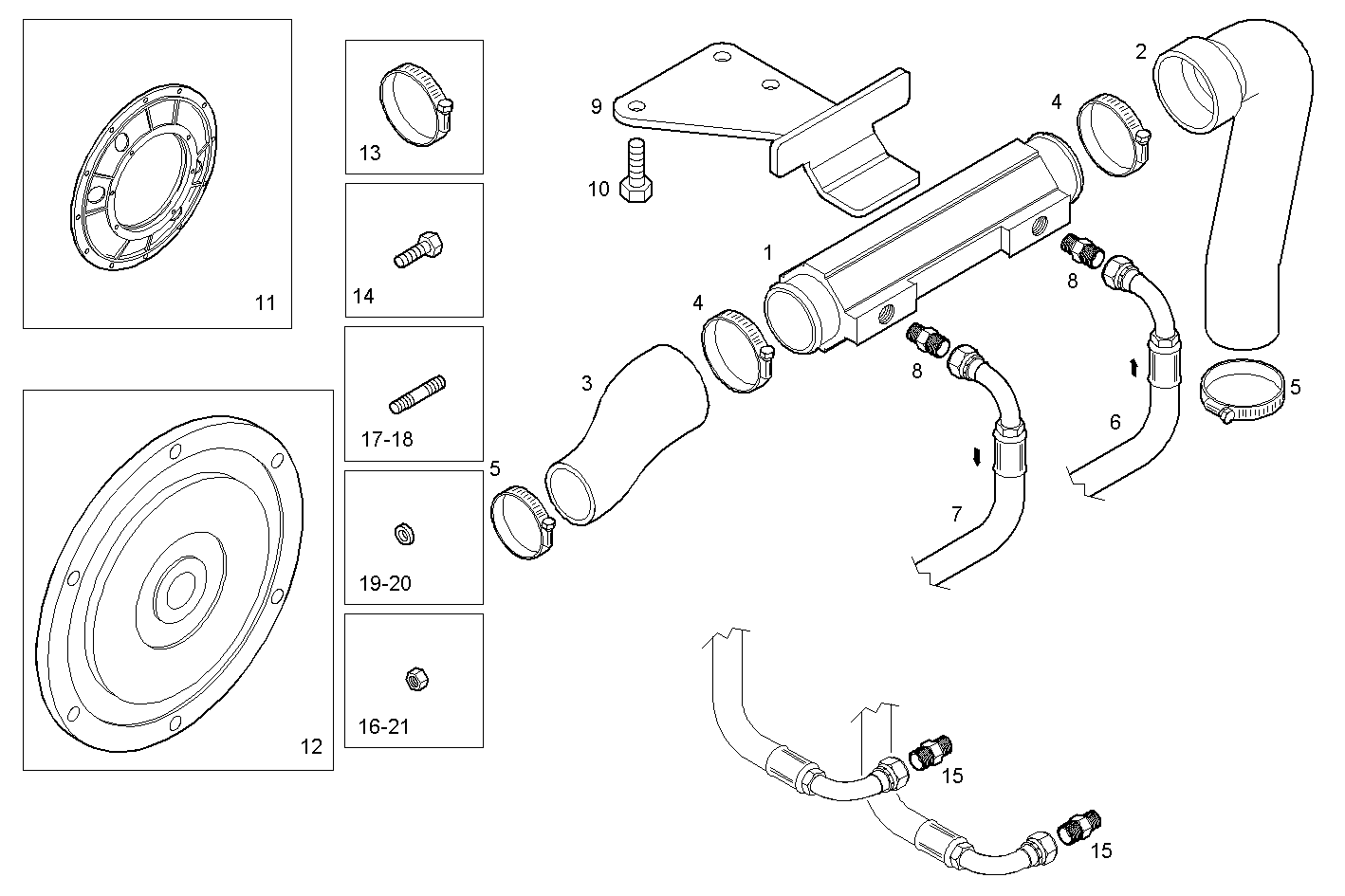

ARRANGED FOR GEAR ZF
S30ENTM23.10 — SOFIM HPI 3.0L
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8044465 | MARINE GEAR OIL HEAT EXCH MARINE GEAR OIL HEAT EXCH | 1 | |
| 2 | 8044444 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 3 | 8044442 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 4 | 17764991 | CLIP CLIP | 2 | |
| 5 | 17764892 | PIPE CLIP PIPE CLIP | 2 | |
| 6 | 8108736 | OIL HOSE OIL HOSE | 1 | |
| 7 | 8108735 | OIL HOSE OIL HOSE | 1 | |
| 8 | 4935465 | PIPE SOCKET PIPE SOCKET | 2 | |
| 9 | 8044429 | SUPPORT SUPPORT | 1 | |
| 10 | 15003921 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 11 | 4934336 | FLANGE FLANGE | 1 | |
| 12 | 8043317 | FLEXIBLE COUPLING FLEXIBLE COUPLING | 1 | |
| 13 | 17765091 | CLIP CLIP | 2 | |
| 14 | 16607724 | HEXAGON BOLT HEXAGON BOLT | 6 | |
| 15 | 8101073 | PIPE SOCKET PIPE SOCKET | 2 | |
| 16 | 17038221 | HEXAGON NUT HEXAGON NUT | 5 | |
| 17 | 16731224 | STUD STUD | 12 | |
| 18 | 13546321 | STUD STUD | 5 | |
| 19 | 17090174 | SPRING WASHER SPRING WASHER | 5 | |
| 20 | 17095004 | WASHER WASHER | 18 | |
| 21 | 17038131 | HEXAGON NUT HEXAGON NUT | 12 |
