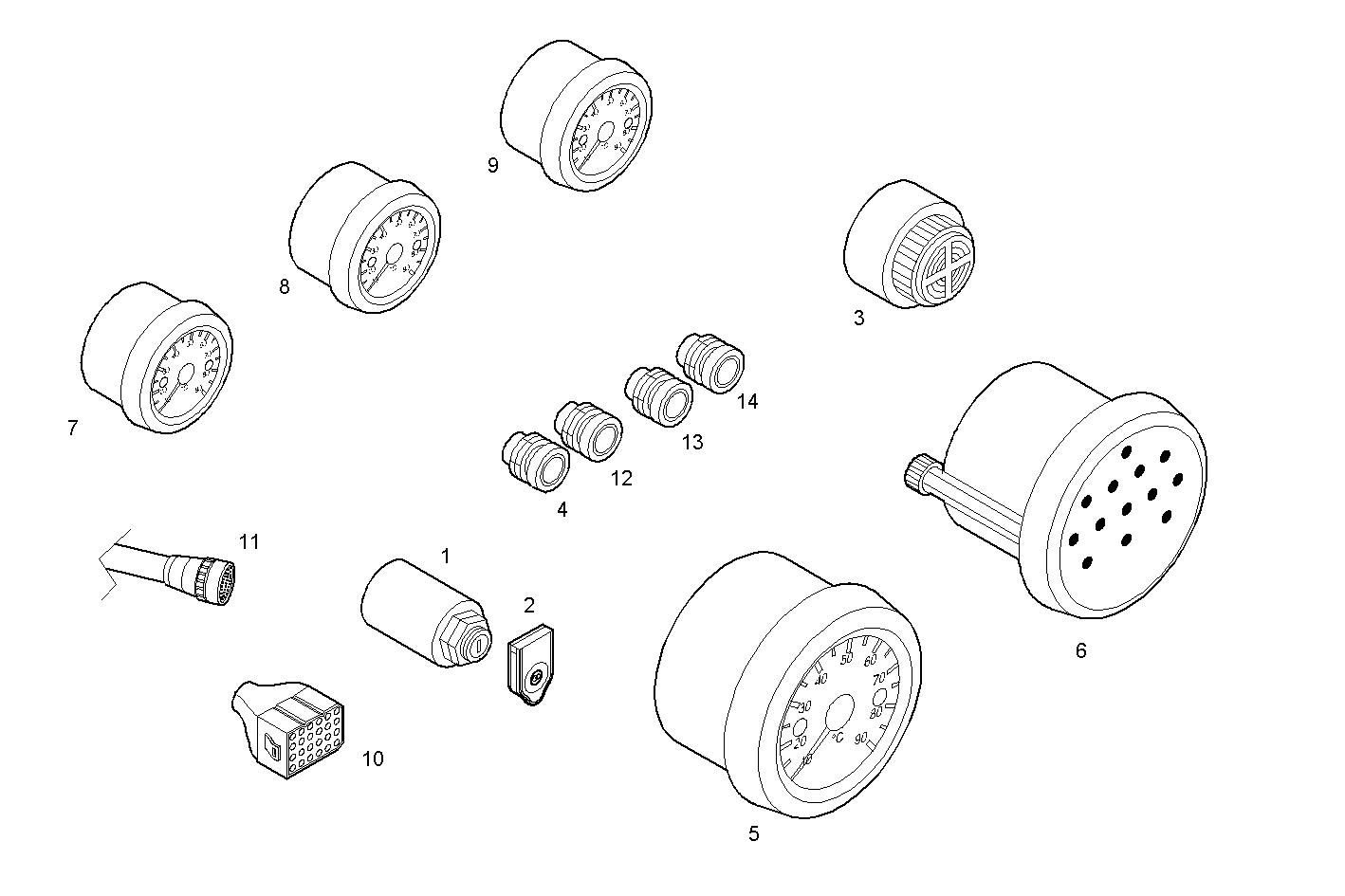

DOUBLE INSTRUMENTS KIT - 12V -
S30ENTM23.10 — SOFIM HPI 3.0L
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8035169 | SWITCH SWITCH | 1 | |
| 2 | 8035172 | COVER COVER | 1 | |
| 3 | 8035166 | ACOUSTIC HORN ACOUSTIC HORN | 2 | |
| 4 | 8036498 | SWITCH SWITCH | 2 | |
| 5 | 8030621 | REVOLUTION COUNTER REVOLUTION COUNTER | 2 | |
| 6 | 8034892 | WARNING LIGHT WARNING LIGHT | 2 | |
| 7 | 8030618 | THERMOMETER THERMOMETER | 2 | |
| 8 | 8030619 | PRESSURE GAUGE PRESSURE GAUGE | 2 | |
| 9 | 8030620 | VOLTMETER VOLTMETER | 2 | |
| 10 | 8036143 | CONNECTION CONNECTION | 1 | |
| 11 | 8033624 | ENGINE HARNESS ENGINE HARNESS | 1 | |
| 12 | 8036409 | PUSH BUTTON PUSH BUTTON | 1 | |
| 13 | 8036500 | SWITCH SWITCH | 1 | |
| 14 | 8036499 | SWITCH SWITCH | 1 |
