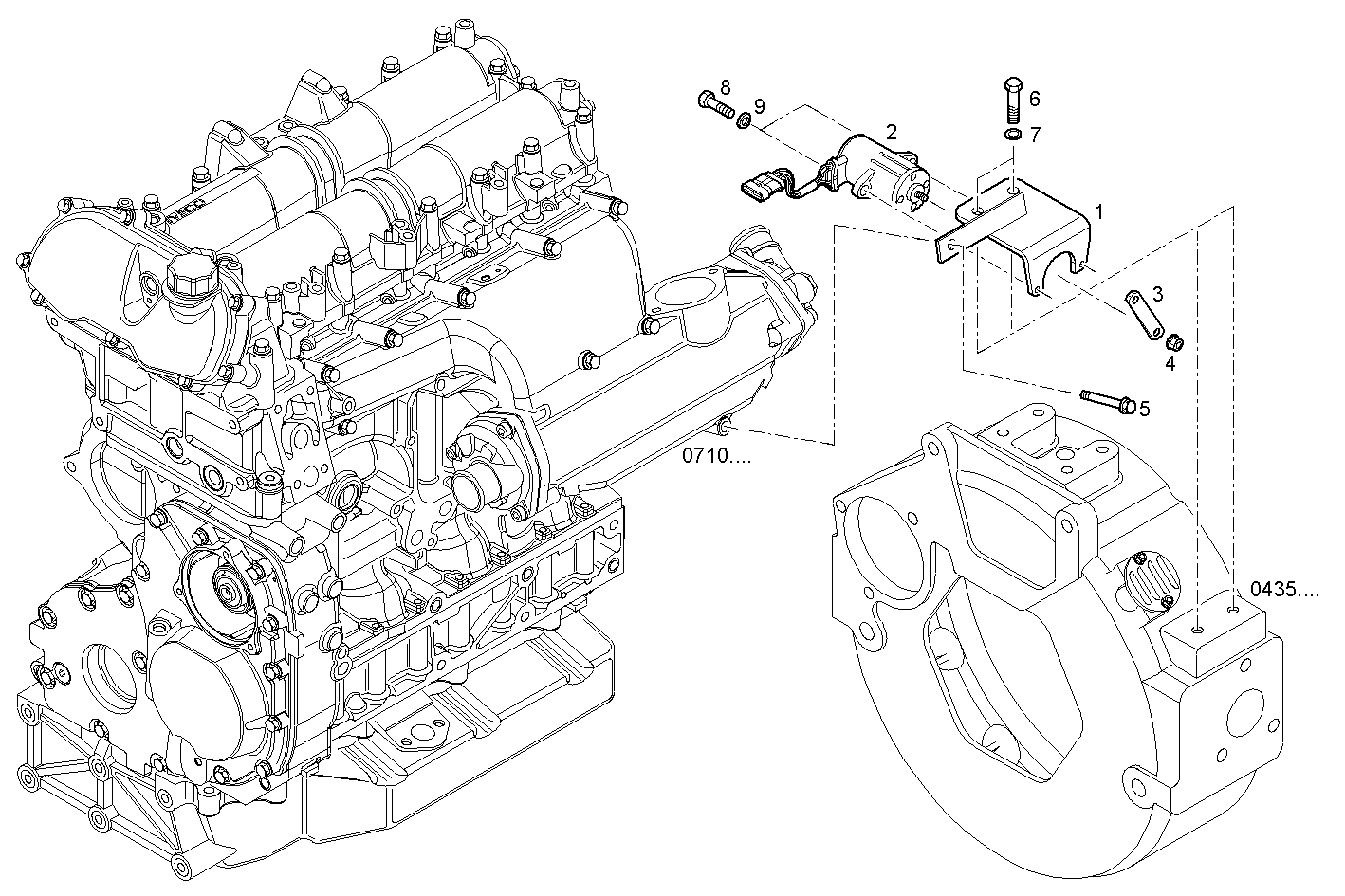

ELECTRONIC ACCELERATOR
S30ENTM23.10 — SOFIM HPI 3.0L
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8043692 | RETAINER RETAINER | 1 | |
| 2 | 8043732 | POTENTIOMETER POTENTIOMETER | 1 | |
| 3 | 8042865 | ACCELERATOR PEDAL ACCELERATOR PEDAL | 1 | |
| 4 | 17044625 | HEXAGON NUT HEXAGON NUT | 1 | |
| 5 | 16592625 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 6 | 15970524 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 7 | 17090174 | SPRING WASHER SPRING WASHER | 3 | |
| 8 | 16603677 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 9 | 17088474 | WASHER WASHER | 2 |
