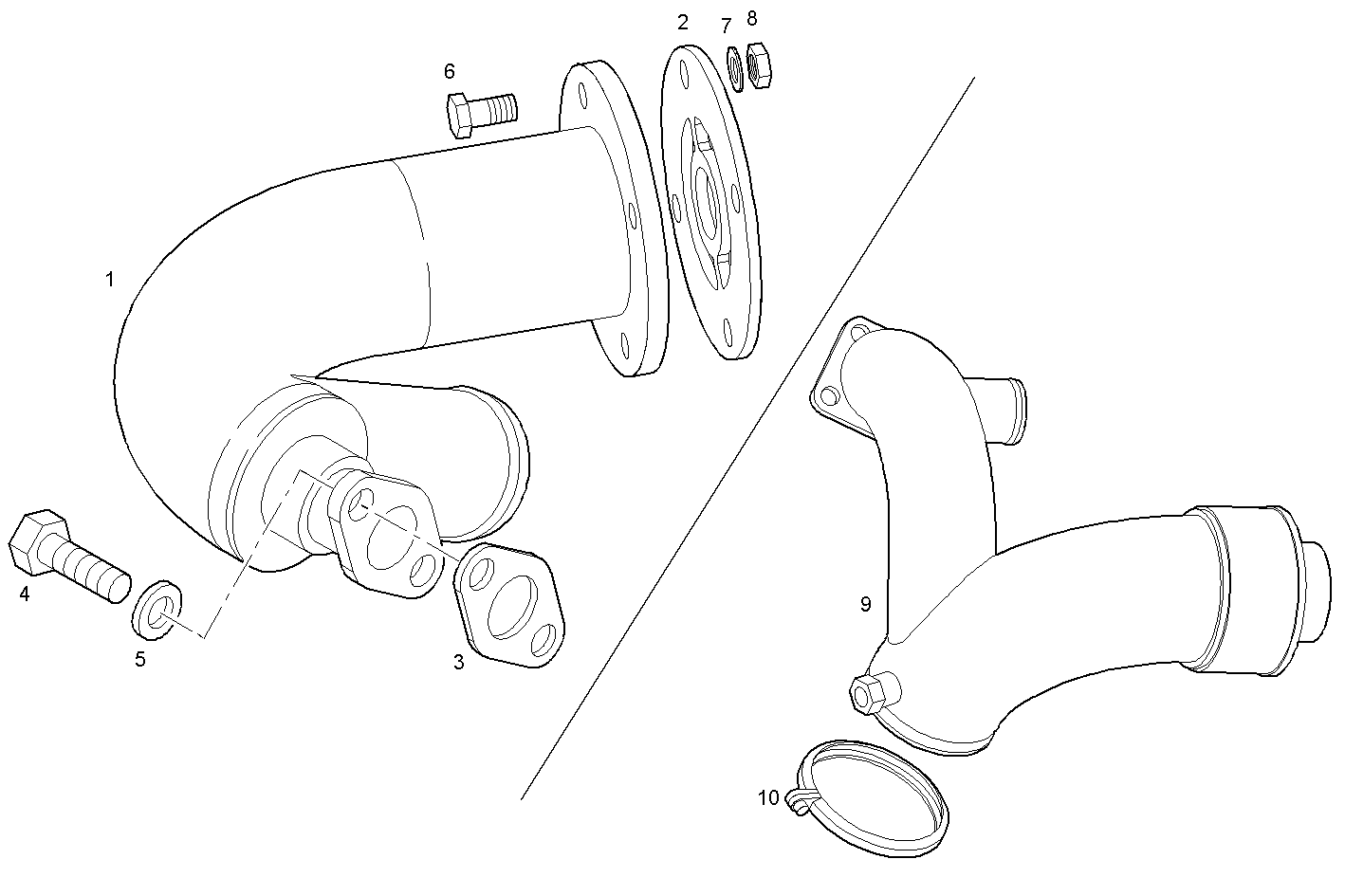

EXHAUST PIPE
S30ENTM23.10 — SOFIM HPI 3.0L
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8042134 | MARINE EXHAUST PIPE MARINE EXHAUST PIPE | 1 | |
| 2 | 8042257 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 3 | 8042067 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 4 | 16605424 | SCREW SCREW | 2 | |
| 5 | 17094804 | WASHER WASHER | 2 | |
| 6 | 16603724 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 7 | 17094604 | WASHER WASHER | 4 | |
| 8 | 17044621 | HEXAGON NUT HEXAGON NUT | 4 | |
| 9 | 8042111 | MARINE EXHAUST PIPE MARINE EXHAUST PIPE | 1 | |
| 10 | 8111053 | CLIP CLIP | 1 |
