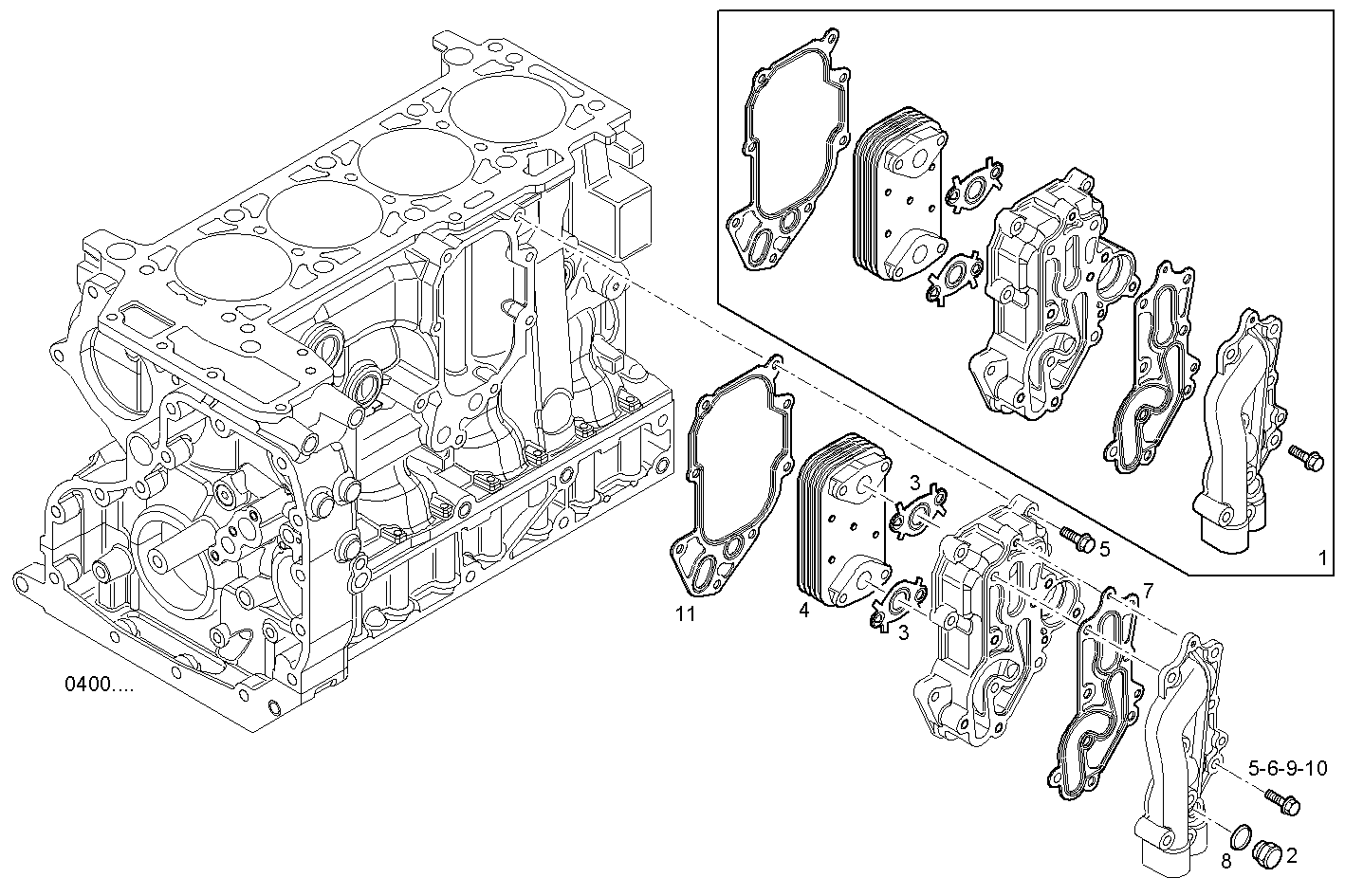

HEAT EXCHANGER
S30ENTM23.10 — SOFIM HPI 3.0L
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 504160865 | HEAT EXCHANGER HEAT EXCHANGER | 1 | |
| 2 | 16992315 | THREADED PLUG THREADED PLUG | 1 | |
| 3 | 504077557 | FLAT ENGINE GKT FLAT ENGINE GKT | 2 | |
| 4 | 504078695 | OIL COOLER OIL COOLER | 1 | |
| 5 | 16673835 | HEXAGON BOLT HEXAGON BOLT | 12 | |
| 6 | 16586725 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 7 | 504092368 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 8 | 4858608 | SEAL GASKET SEAL GASKET | 1 | |
| 9 | 16585825 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 10 | 16592224 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 11 | 504089123 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 |
