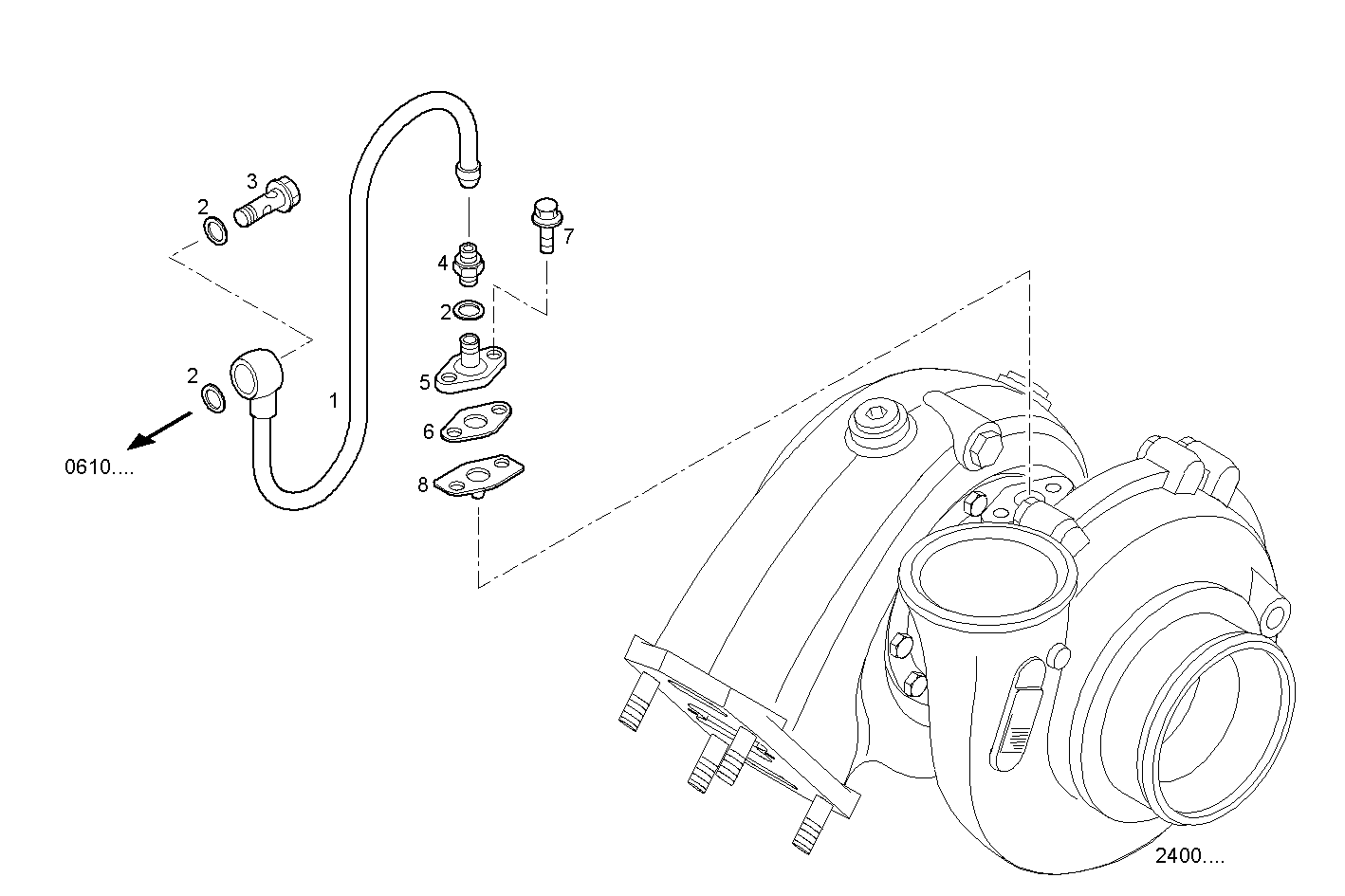

LUBE OIL LINES
S30ENTM23.10 — SOFIM HPI 3.0L
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8042741 | PIPE PIPE | 1 | |
| 2 | 4858608 | SEAL GASKET SEAL GASKET | 3 | |
| 3 | 8042929 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 4 | 8042739 | PIPE SOCKET PIPE SOCKET | 1 | |
| 5 | 61689705 | FLANGED SOCKET FLANGED SOCKET | 1 | |
| 6 | 98415922 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 7 | 16673635 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 8 | 98482093 | GASKET GASKET | 1 |
