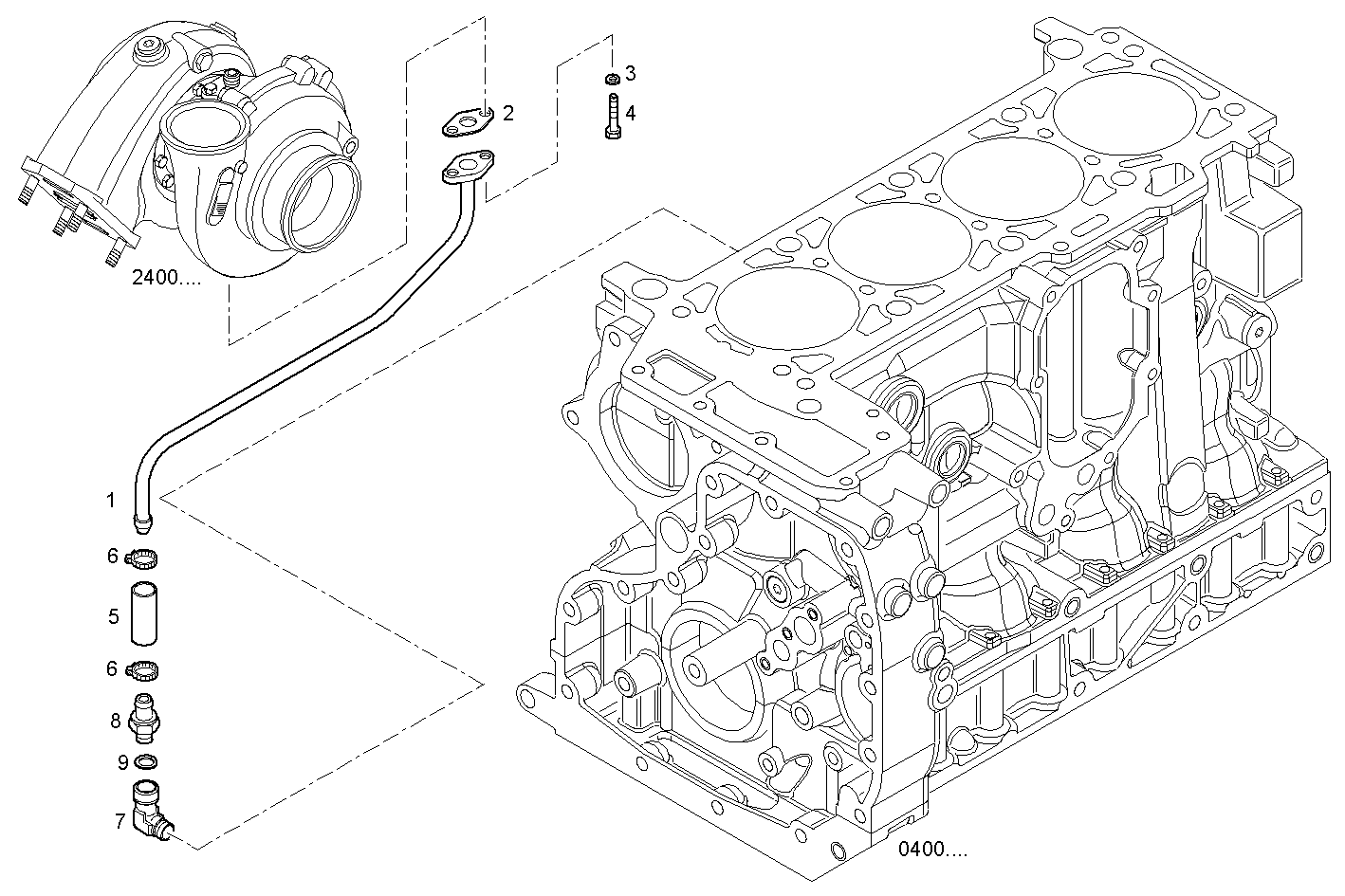

LUBE OIL LINES
S30ENTM23.10 — SOFIM HPI 3.0L
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8042758 | PIPE PIPE | 1 | |
| 2 | 98415923 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 3 | 17094814 | WASHER WASHER | 2 | |
| 4 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 5 | 8109346 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 6 | 17764593 | CLIP CLIP | 2 | |
| 7 | 8005303 | PIPE SOCKET PIPE SOCKET | 1 | |
| 8 | 8045390 | THREADED UNION THREADED UNION | 1 | |
| 9 | 4858609 | WASHER WASHER | 1 |
