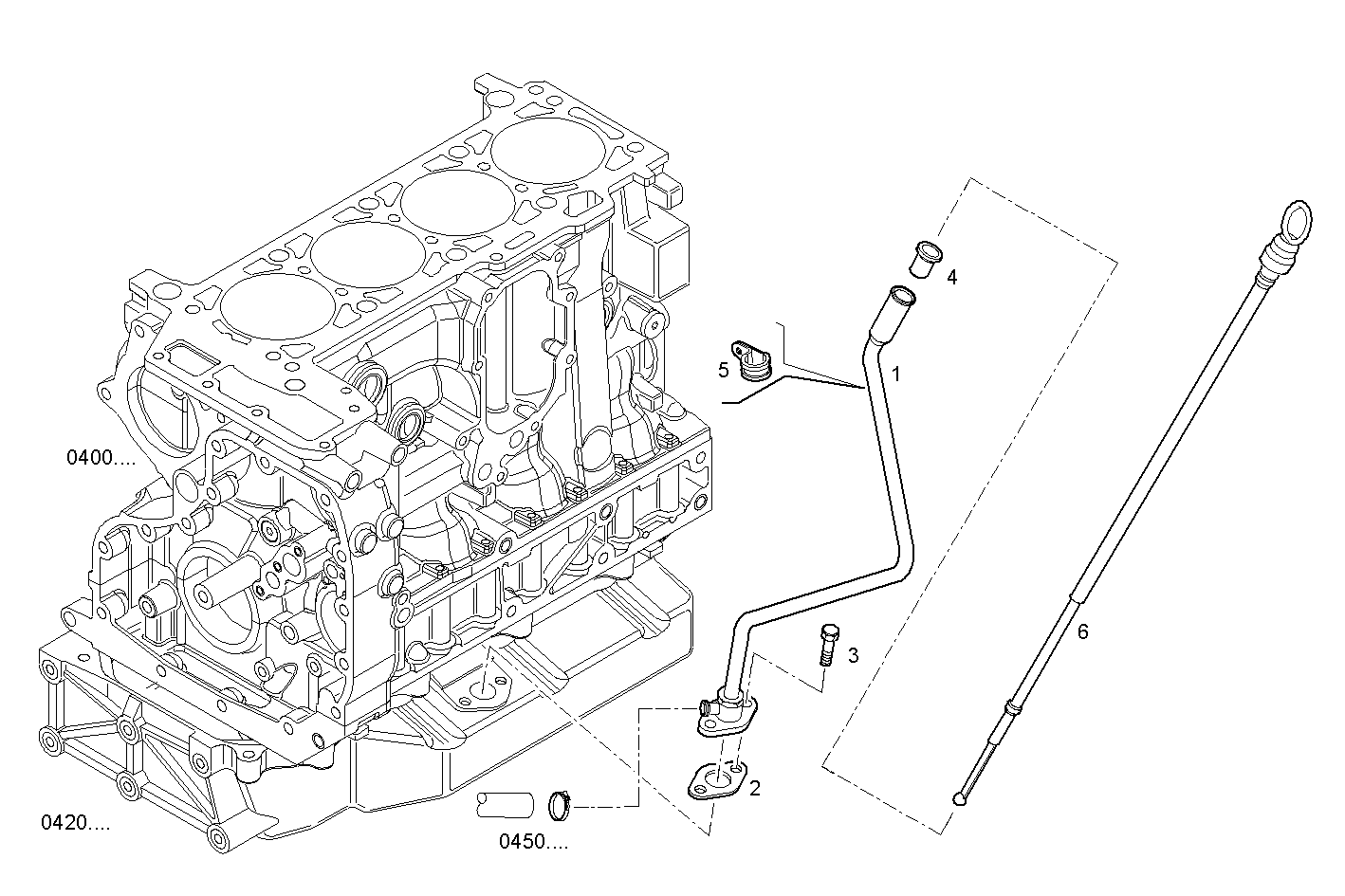

OIL DIPSTICK & FILLER PIPE
S30ENTM23.10 — SOFIM HPI 3.0L
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8042482 | PIPE PIPE | 1 | |
| 2 | 98401052 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 3 | 16673635 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 4 | 8043033 | PLUG PLUG | 1 | |
| 5 | 17316592 | PIPE CLIP PIPE CLIP | 1 | |
| 6 | 8040640 | OIL DIPSTICK OIL DIPSTICK | 1 |
