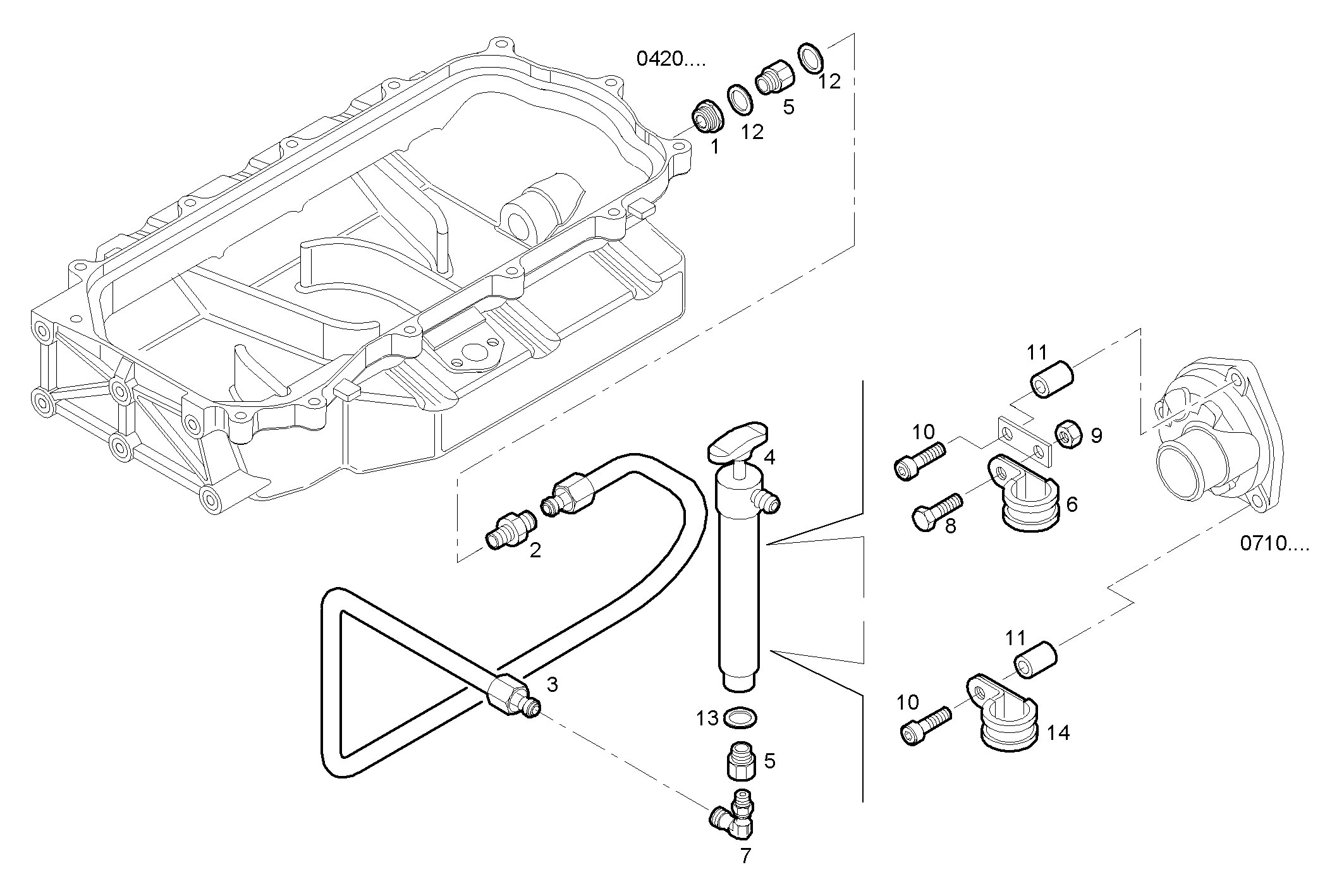

OIL OUTLET PUMP
S30ENTM23.10 — SOFIM HPI 3.0L
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8037440 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 2 | 16500215 | THREADED UNION THREADED UNION | 1 | |
| 3 | 8043497 | OIL LINE OIL LINE | 1 | |
| 4 | 8019921 | HAND PUMP HAND PUMP | 1 | |
| 5 | 4928330 | PIPE SOCKET PIPE SOCKET | 2 | |
| 6 | 4928851 | CLIP CLIP | 1 | |
| 7 | 8025927 | ELBOW COUPLING ELBOW COUPLING | 1 | |
| 8 | 16673635 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 9 | 17044721 | HEXAGON NUT HEXAGON NUT | 1 | |
| 10 | 16691324 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 2 | |
| 11 | 17816414 | SPACING BAR SPACING BAR | 2 | |
| 12 | 4858608 | SEAL GASKET SEAL GASKET | 2 | |
| 13 | 4858609 | WASHER WASHER | 1 | |
| 14 | 4935081 | CLIP CLIP | 1 |
