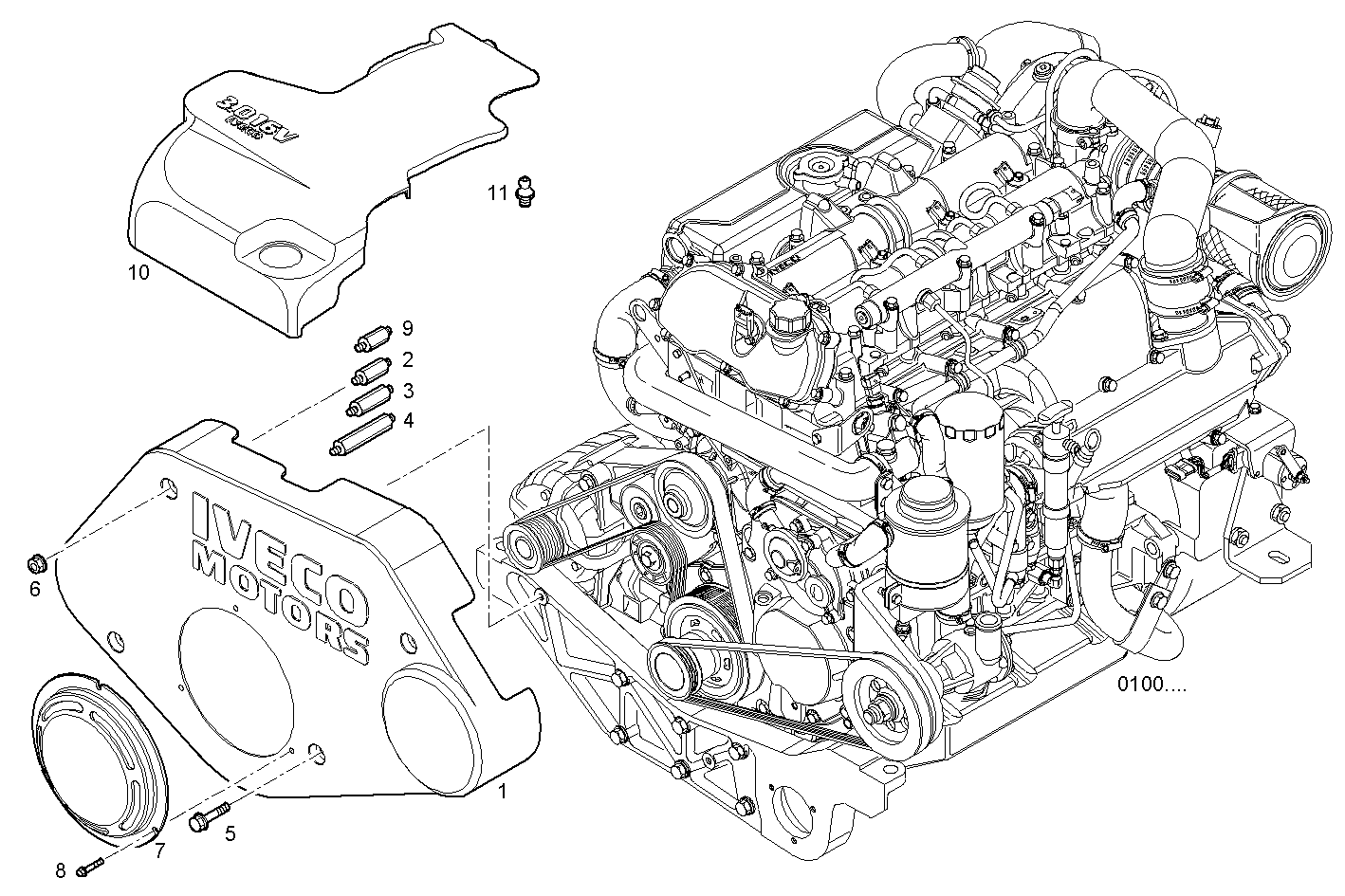

SHIELDS
S30ENTM23.10 — SOFIM HPI 3.0L
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8044124 | PROTECTION PROTECTION | 1 | |
| 2 | 8044161 | SPACING BAR SPACING BAR | 1 | |
| 3 | 8044162 | SPACING BAR SPACING BAR | 2 | |
| 4 | 8044289 | SPACING BAR SPACING BAR | 1 | |
| 5 | 16673635 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 6 | 17044721 | HEXAGON NUT HEXAGON NUT | 4 | |
| 7 | 8042505 | PROTECTION PROTECTION | 1 | |
| 8 | 18137825 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 9 | 8044290 | SPACING BAR SPACING BAR | 1 | |
| 10 | 504136064 | CYL. HEAD COVER CYL. HEAD COVER | 1 | |
| 11 | 504021335 | BALL-END PIN BALL-END PIN | 3 |
