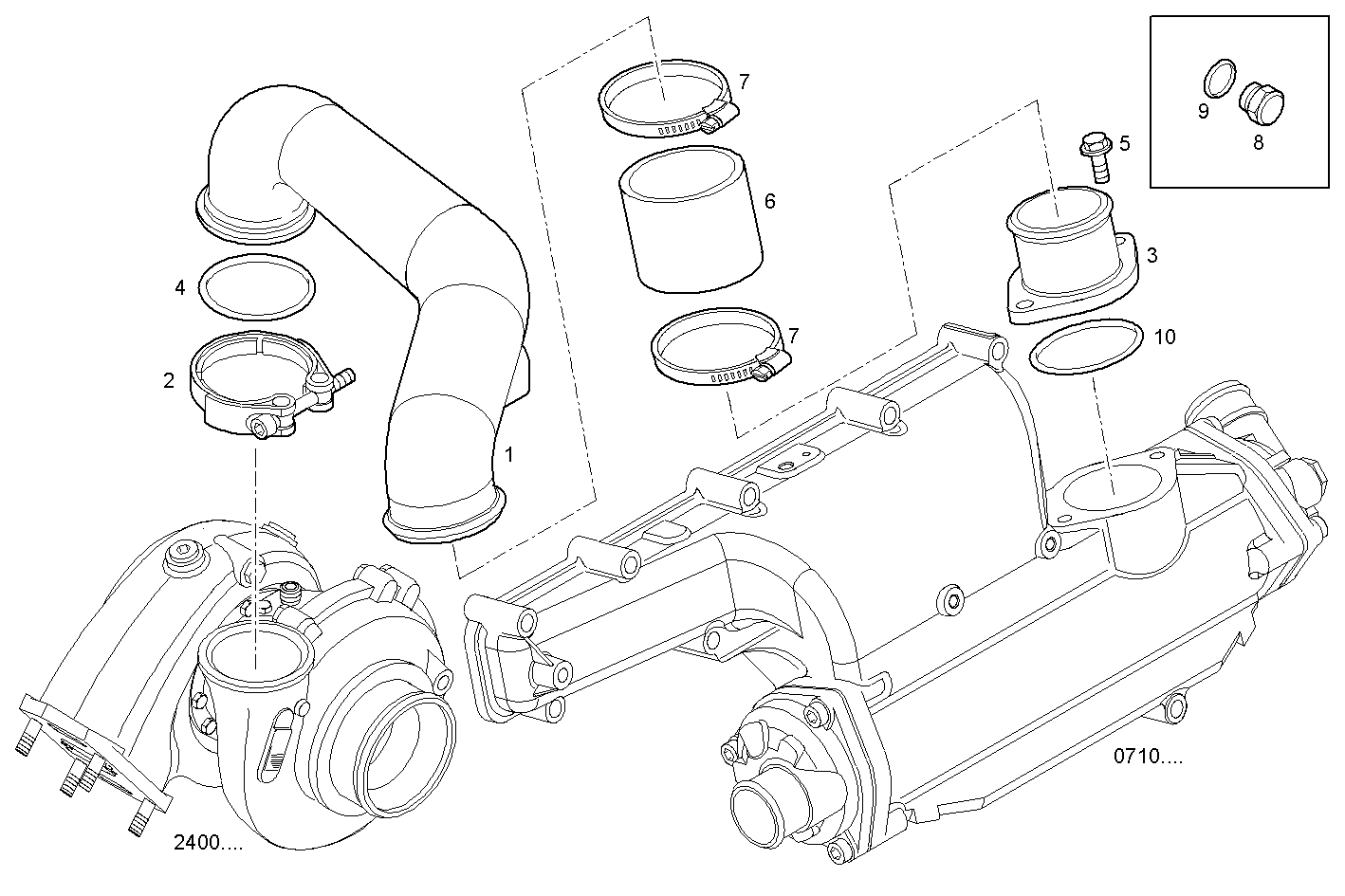

SUPERCHARGING LINES
S30ENTM23.10 — SOFIM HPI 3.0L
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8040673 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 2 | 504120931 | CLIP CLIP | 1 | |
| 3 | 8040956 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 4 | 17284381 | O-RING O-RING | 1 | |
| 5 | 16586625 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 6 | 8025444 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 7 | 17768591 | CLIP CLIP | 2 | |
| 8 | 16992315 | THREADED PLUG THREADED PLUG | 1 | |
| 9 | 4858608 | SEAL GASKET SEAL GASKET | 1 | |
| 10 | 17290381 | O-RING O-RING | 1 |
