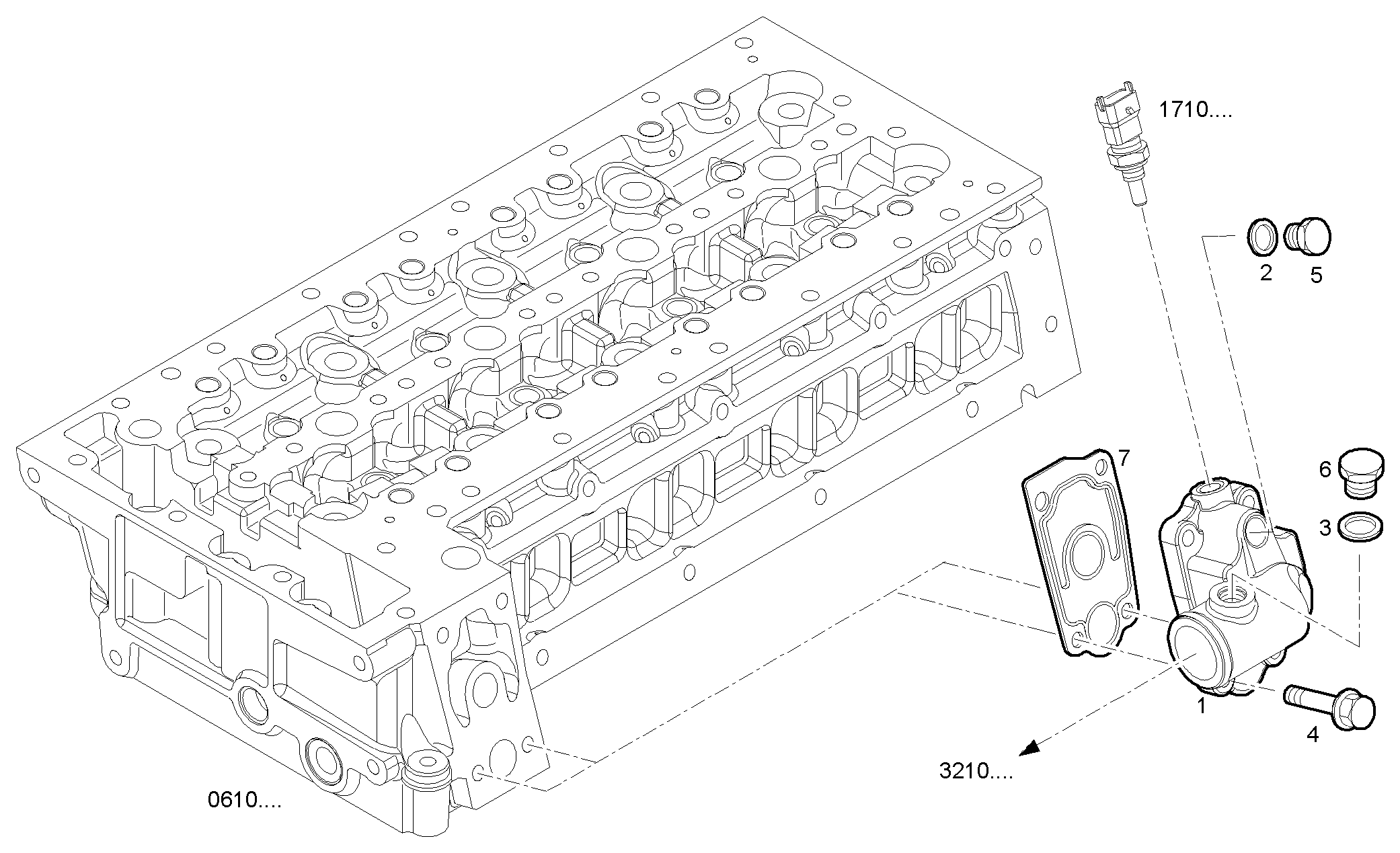

TEMPERATURE REGULATOR
S30ENTM23.10 — SOFIM HPI 3.0L
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8041973 | THERMOSTAT BODY THERMOSTAT BODY | 1 | |
| 2 | 4858608 | SEAL GASKET SEAL GASKET | 1 | |
| 3 | 16508260 | WASHER WASHER | 1 | |
| 4 | 16586825 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 5 | 16992315 | THREADED PLUG THREADED PLUG | 1 | |
| 6 | 16992415 | THREADED PLUG THREADED PLUG | 1 | |
| 7 | 504168468 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 |
