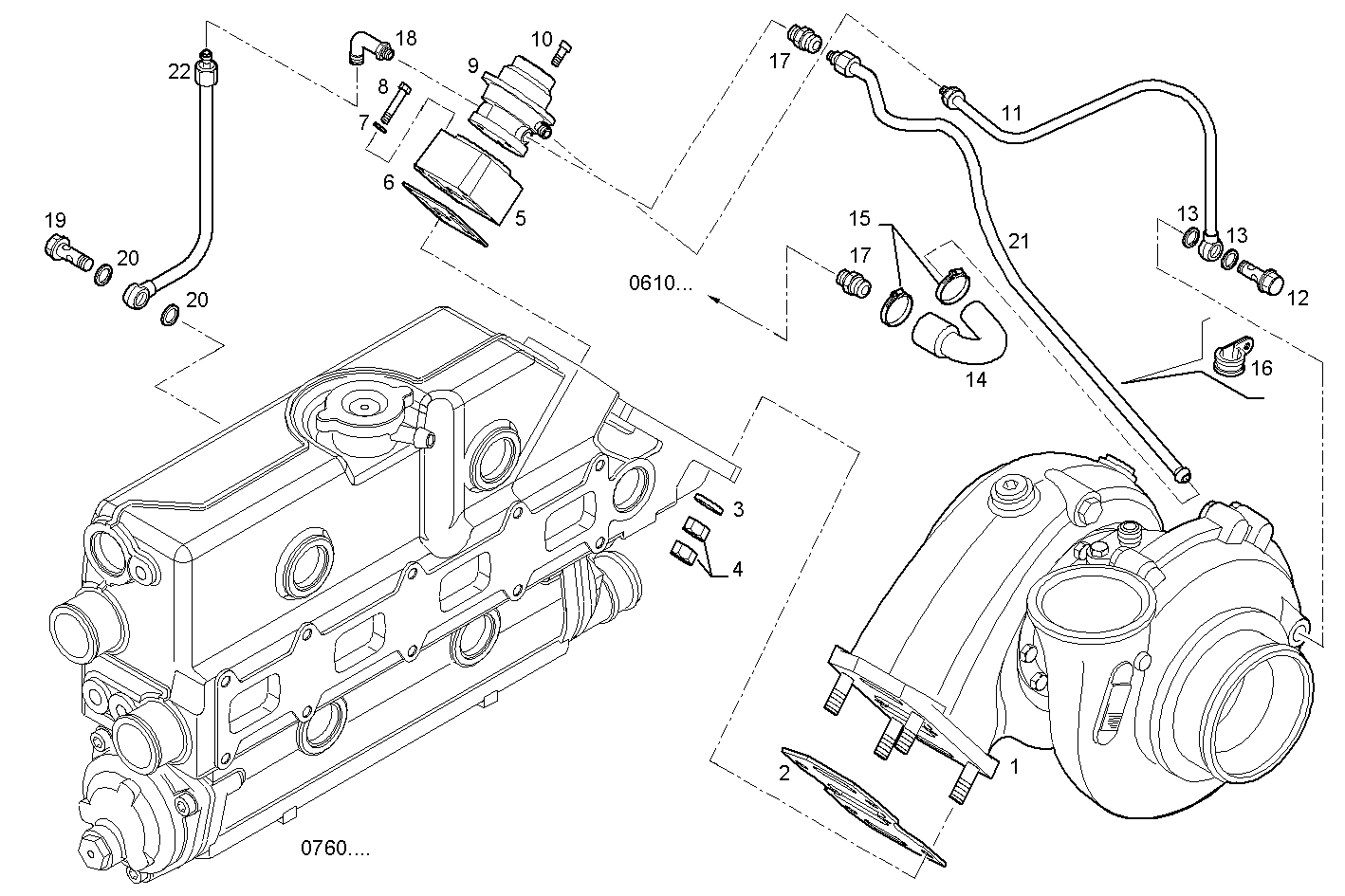

TURBOCHARGER
S30ENTM23.10 — SOFIM HPI 3.0L
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8040226 | TURBOCHARGER TURBOCHARGER | 1 | |
| 2 | 8014972 | GASKET GASKET | 1 | |
| 3 | 17494934 | WASHER WASHER | 4 | |
| 4 | 16979635 | HEXAGON NUT HEXAGON NUT | 8 | |
| 5 | 8041814 | SPACING BAR SPACING BAR | 1 | |
| 6 | 8041966 | GASKET GASKET | 1 | |
| 7 | 17094814 | WASHER WASHER | 4 | |
| 8 | 16606324 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 9 | 8030095 | VALVE VALVE | 1 | |
| 10 | 16689134 | SOCKET-HEAD SCREW SOCKET-HEAD SCREW | 3 | |
| 11 | 8042716 | CONNECTION PIPE CONNECTION PIPE | 1 | |
| 12 | 4864077 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 13 | 4858605 | WASHER WASHER | 2 | |
| 14 | 8043158 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 15 | 18088493 | CLIP CLIP | 2 | |
| 16 | 17316592 | PIPE CLIP PIPE CLIP | 1 | |
| 17 | 41905554 | PIPE SOCKET PIPE SOCKET | 2 | |
| 18 | 8025927 | ELBOW COUPLING ELBOW COUPLING | 1 | |
| 19 | 4864083 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 20 | 4858608 | SEAL GASKET SEAL GASKET | 2 | |
| 21 | 8043159 | DELIVERY LINE DELIVERY LINE | 1 | |
| 22 | 8040707 | PIPE PIPE | 1 |
