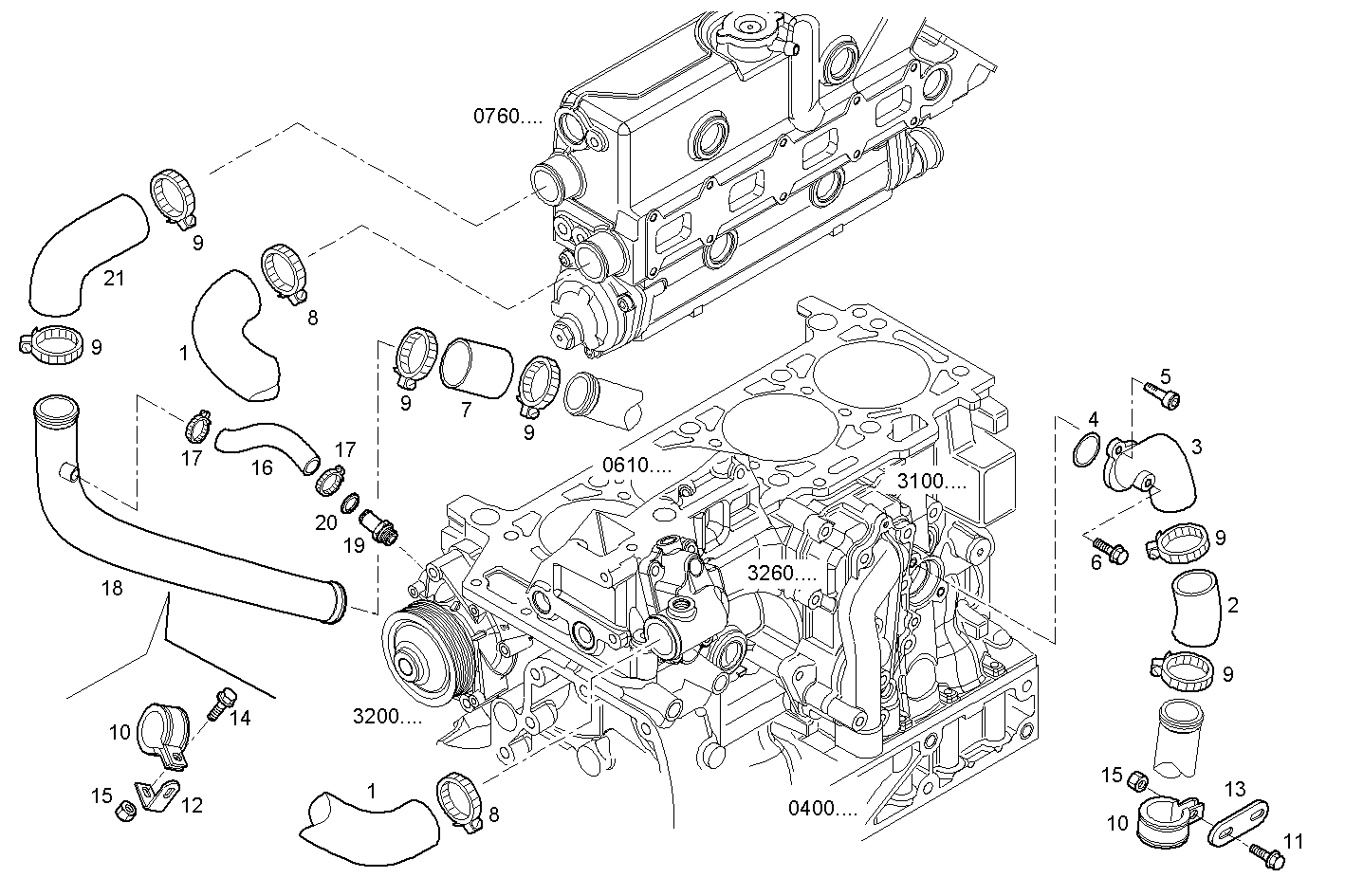

WATER LINES
S30ENTM23.10 — SOFIM HPI 3.0L
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8042444 | WATER HOSE WATER HOSE | 1 | |
| 2 | 8100666 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 3 | 8040666 | WATER PIPE WATER PIPE | 1 | |
| 4 | 17282981 | O-RING O-RING | 1 | |
| 5 | 16707134 | SOCKET-HEAD SCREW SOCKET-HEAD SCREW | 1 | |
| 6 | 16592224 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 7 | 98434881 | WATER HOSE WATER HOSE | 1 | |
| 8 | 17764893 | CLIP CLIP | 2 | |
| 9 | 17764791 | CLIP CLIP | 6 | |
| 10 | 18088493 | CLIP CLIP | 2 | |
| 11 | 15970524 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 12 | 8043337 | RETAINER RETAINER | 1 | |
| 13 | 8043338 | RETAINER RETAINER | 1 | |
| 14 | 18139424 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 15 | 17044825 | HEXAGON NUT HEXAGON NUT | 2 | |
| 16 | 8031988 | WATER HOSE WATER HOSE | 1 | |
| 17 | 18088392 | CLIP CLIP | 2 | |
| 18 | 8042457 | WATER PIPE WATER PIPE | 1 | |
| 19 | 504037979 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 20 | 98429280 | SEAL GASKET SEAL GASKET | 1 | |
| 21 | 8017516 | WATER HOSE WATER HOSE | 1 |
