150 bar
FVAE2884AB200 — VECTOR 8

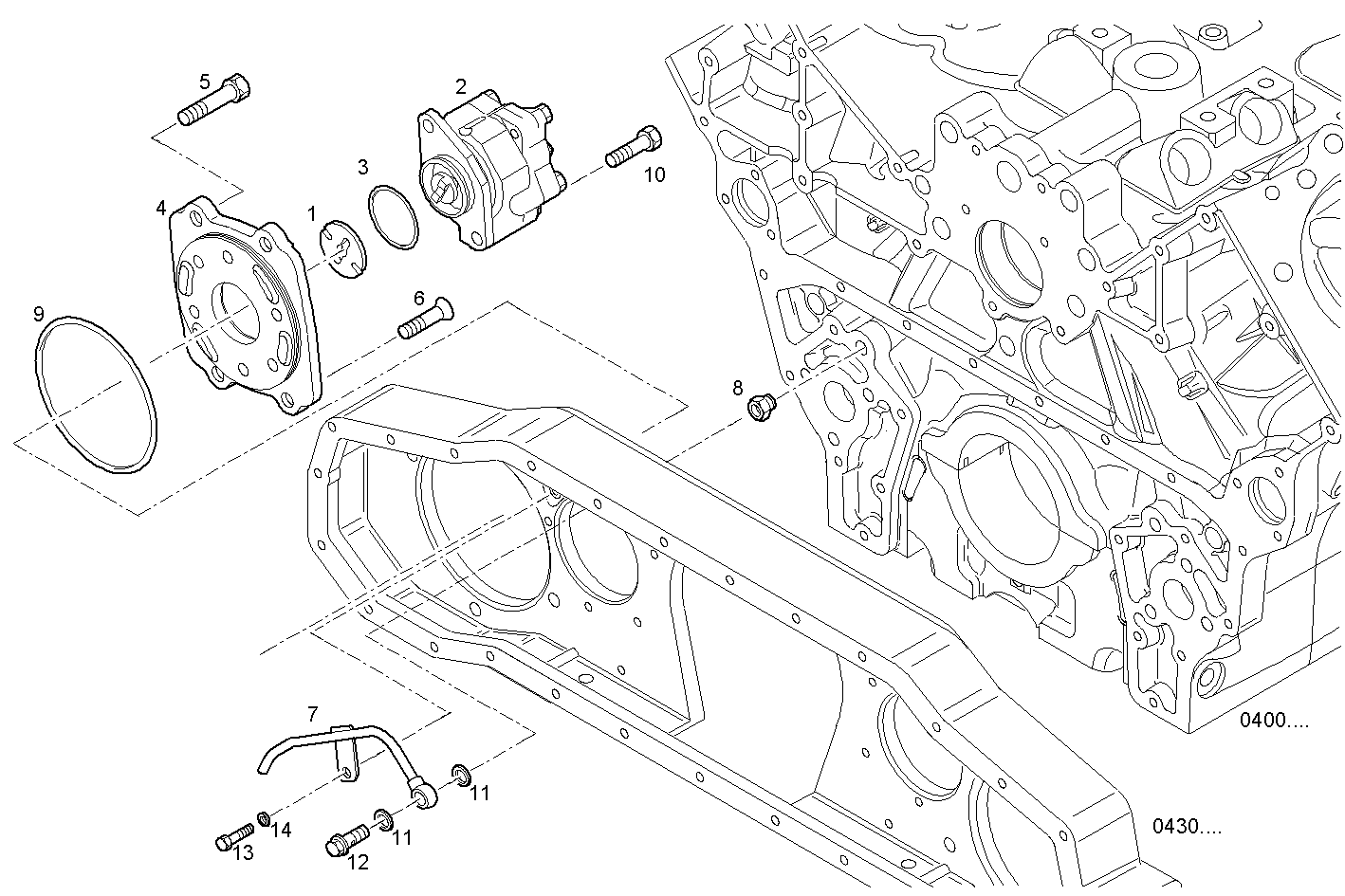

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 504058399 | FLEXIBLE COUPLING FLEXIBLE COUPLING | 1 | |
| 2 | 504102375 | OIL PUMP-STEERING OIL PUMP-STEERING | 1 | |
| 3 | 500324249 | O-RING O-RING | 1 | |
| 4 | 504164274 | SPACING BAR SPACING BAR | 1 | |
| 5 | 16588125 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 6 | 17345924 | C'SUNK SCREW C'SUNK SCREW | 1 | |
| 7 | 504101003 | OIL LINE OIL LINE | 1 | |
| 8 | 504049545 | THREADED UNION THREADED UNION | 1 | |
| 9 | 17292581 | O-RING O-RING | 1 | |
| 10 | 16675735 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 11 | 98474305 | WASHER WASHER | 2 | |
| 12 | 4864079 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 13 | 16596924 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 14 | 17094724 | WASHER WASHER | 1 |
