ACCESSORIES
FVAE2884AB200 — VECTOR 8

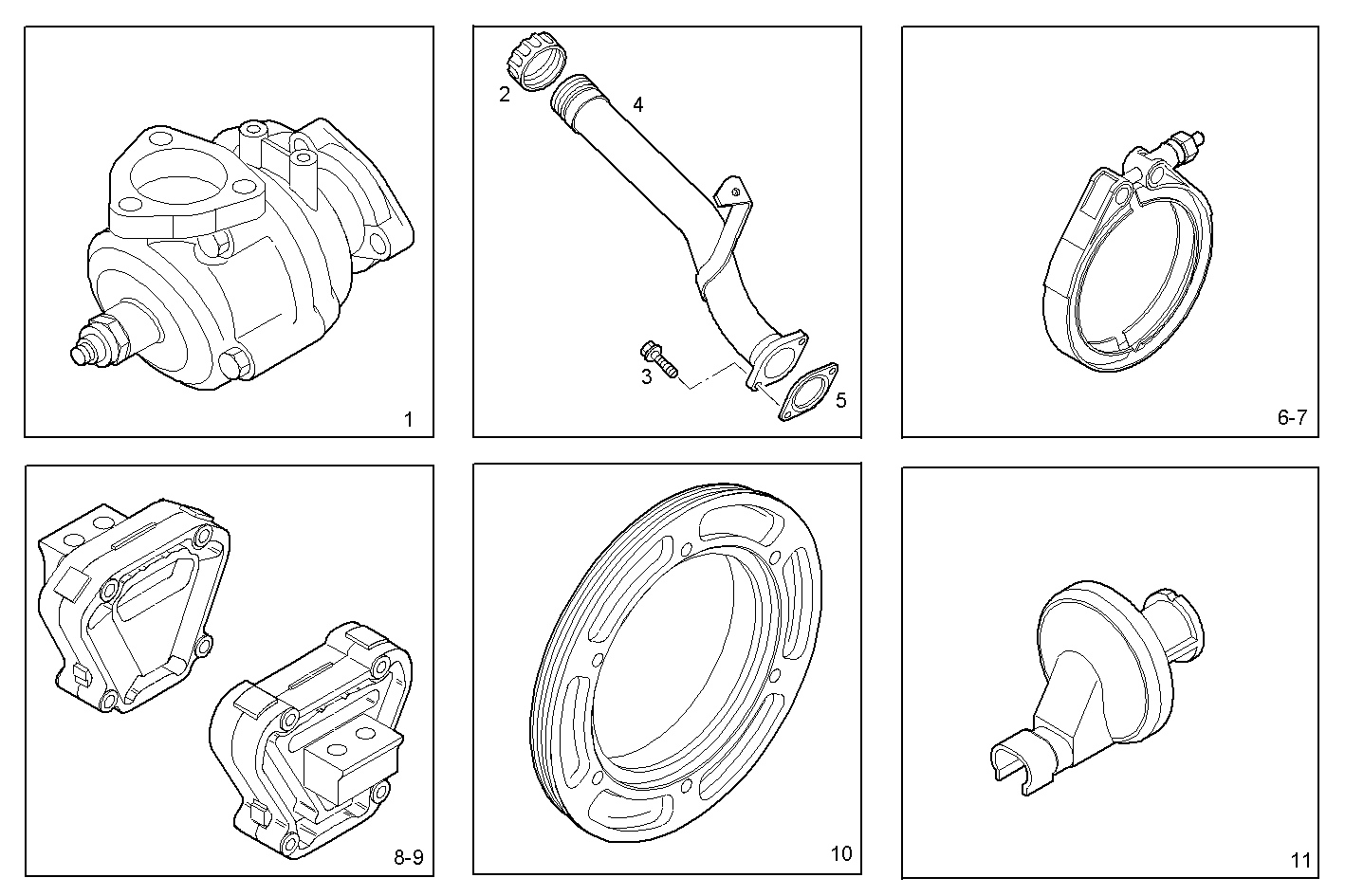

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 504047126 | THERMOSTAT THERMOSTAT | 1 | |
| 2 | 98429552 | OIL FILLER PLUG OIL FILLER PLUG | 1 | |
| 3 | 16586325 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 4 | 504090258 | OIL FILLER PIPE OIL FILLER PIPE | 1 | |
| 5 | 504064628 | GASKET GASKET | 1 | |
| 6 | 504047467 | CLIP CLIP | 2 | |
| 7 | 504071351 | CLIP CLIP | 2 | |
| 8 | 41225154 | ENGINE SILENTBLOCK ENGINE SILENTBLOCK | 2 | |
| 9 | 41219895 | DOWEL DOWEL | 2 | |
| 10 | 504100690 | PULLEY PULLEY | 1 | |
| 11 | 41221286 | CHOCKED FILTER INDIC. CHOCKED FILTER INDIC. | 2 |
