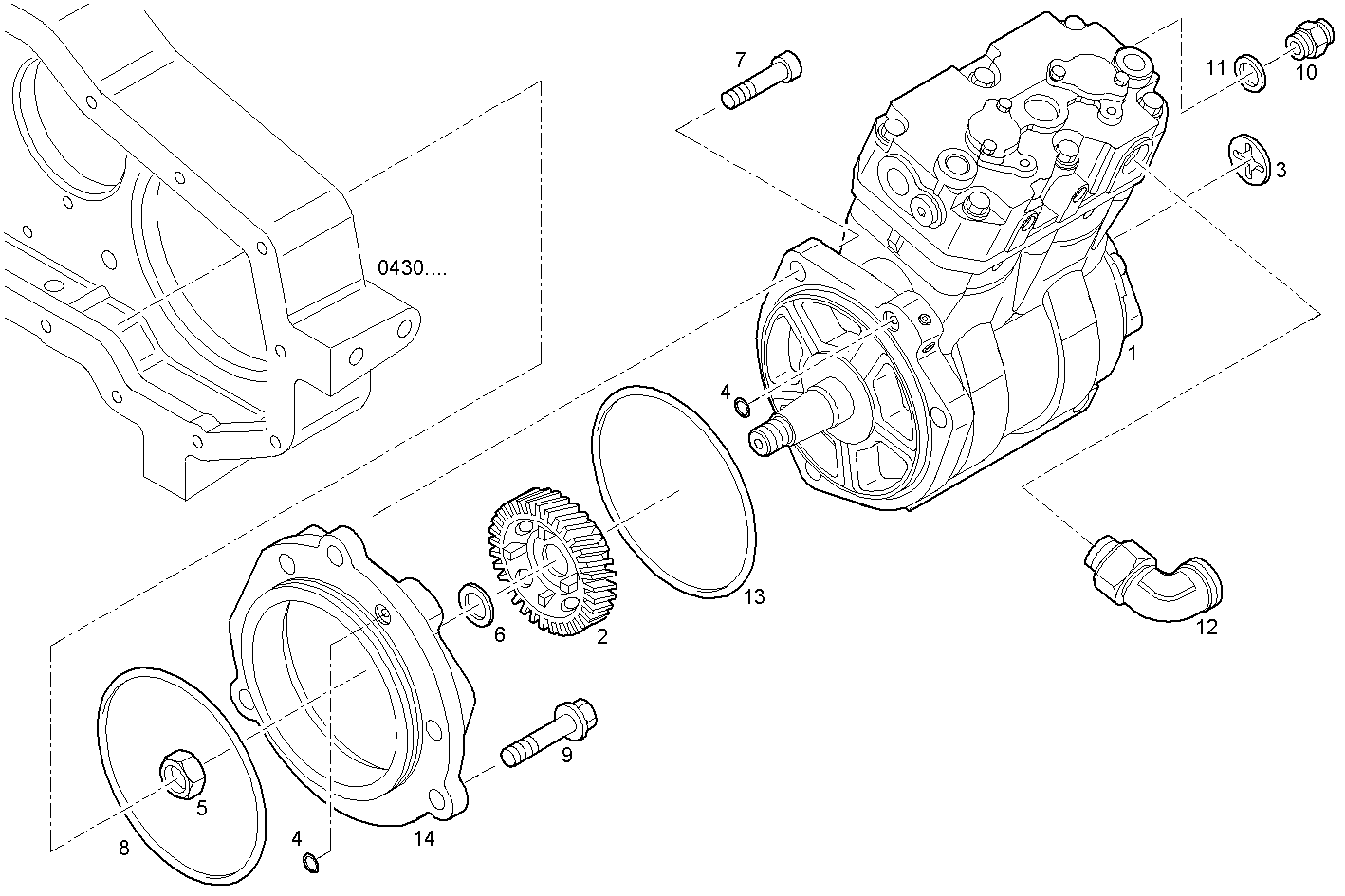

AIR COMPRESSOR
FVAE2884AB200 — VECTOR 8
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 41211340 | AIR COMPRESSOR AIR COMPRESSOR | 1 | |
| 2 | 504039139 | GEAR GEAR | 1 | |
| 3 | 500312023 | FLEXIBLE COUPLING FLEXIBLE COUPLING | 1 | |
| 4 | 17281381 | O-RING O-RING | 2 | |
| 5 | 99471892 | HEXAGON NUT HEXAGON NUT | 1 | |
| 6 | 17095914 | WASHER WASHER | 1 | |
| 7 | 16693924 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 3 | |
| 8 | 17292381 | O-RING O-RING | 1 | |
| 9 | 16588025 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 10 | 61599713 | THREADED UNION THREADED UNION | 1 | |
| 11 | 16508560 | WASHER WASHER | 1 | |
| 12 | 99456380 | ELBOW COUPLING ELBOW COUPLING | 1 | |
| 13 | 17292281 | O-RING O-RING | 1 | |
| 14 | 504080535 | SPACING BAR SPACING BAR | 1 |
