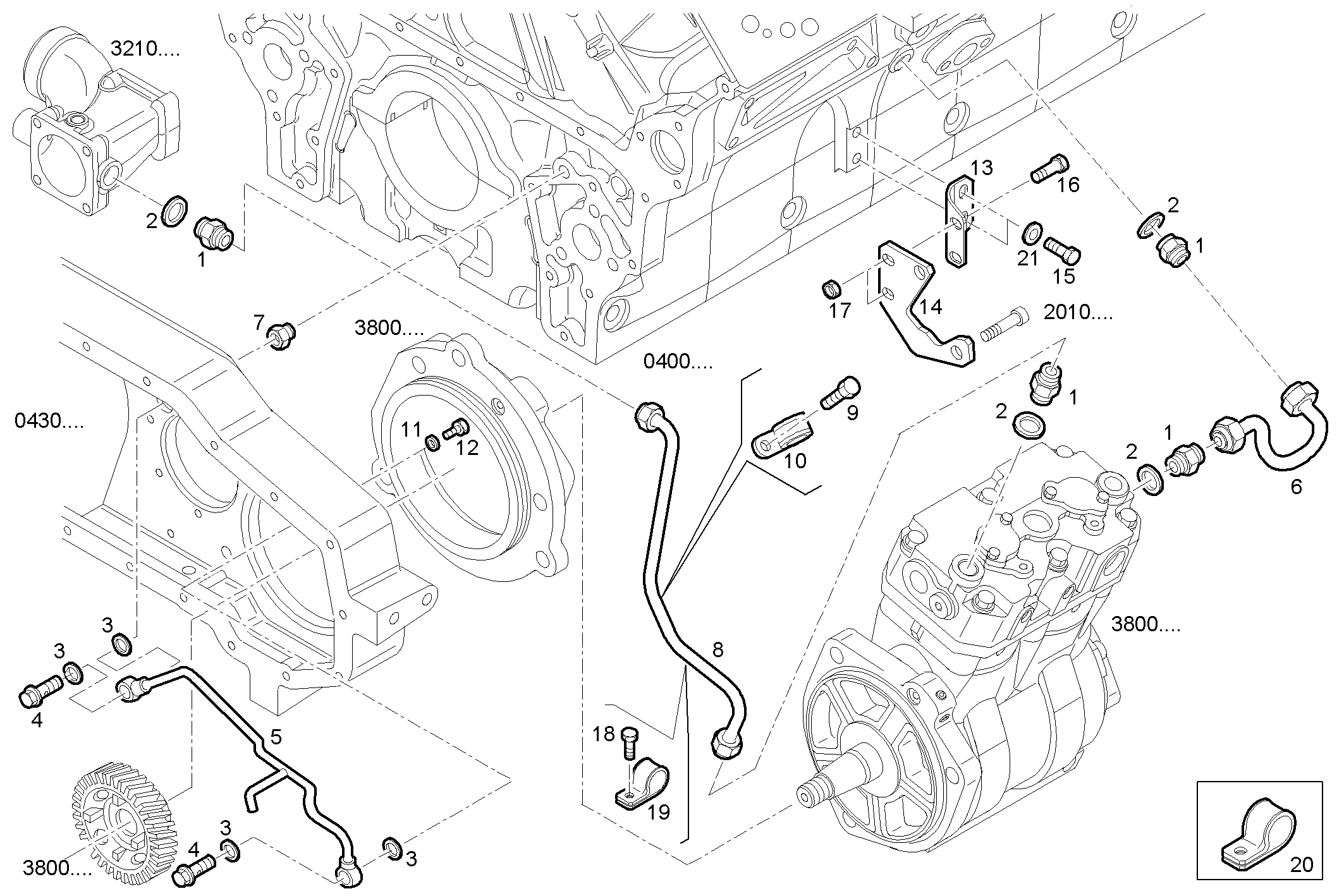

AIR COMPRESSOR
FVAE2884AB200 — VECTOR 8
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 41031571 | THREADED UNION THREADED UNION | 4 | |
| 2 | 99489020 | SEAL GASKET SEAL GASKET | 4 | |
| 3 | 98474305 | WASHER WASHER | 8 | |
| 4 | 4864079 | SCREW CONNECTOR SCREW CONNECTOR | 4 | |
| 5 | 504050100 | OIL LINE OIL LINE | 1 | |
| 6 | 504051076 | WATER PIPE WATER PIPE | 1 | |
| 7 | 504049545 | THREADED UNION THREADED UNION | 1 | |
| 8 | 504065765 | WATER PIPE WATER PIPE | 1 | |
| 9 | 16597925 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 10 | 17316690 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 11 | 17094724 | WASHER WASHER | 1 | |
| 12 | 16596924 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 13 | 504079201 | RETAINER RETAINER | 1 | |
| 14 | 504079200 | RETAINER RETAINER | 1 | |
| 15 | 16673535 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 16 | 16673635 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 17 | 16984235 | HEXAGON NUT HEXAGON NUT | 2 | |
| 18 | 16597924 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 19 | 17314590 | RETAINER RETAINER | 1 | |
| 20 | 17316799 | CLIP CLIP | 1 | |
| 21 | 17094924 | WASHER WASHER | 2 |
