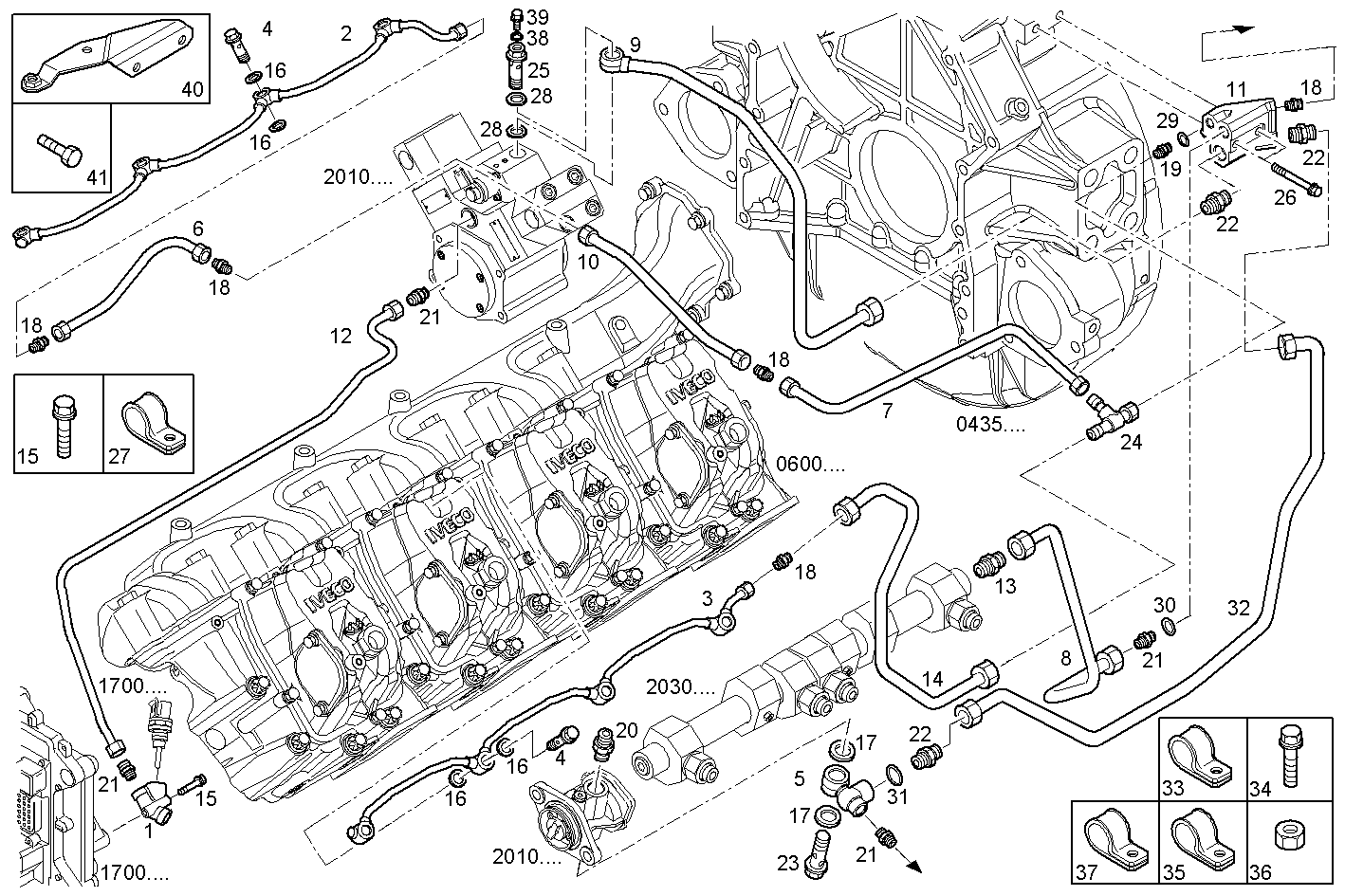

FUEL LINES

FVAE2884AB200 — VECTOR 8

Parts List

#	Part No	Name / Description	Qty
1	504065705	PIPE SOCKET PIPE SOCKET	1
2	504071550	FUEL LINE FUEL LINE	1
3	504071551	FUEL LINE FUEL LINE	1
4	504034362	SCREW CONNECTOR SCREW CONNECTOR	8
5	504060320	PIPE SOCKET PIPE SOCKET	1
6	504079220	FUEL LINE FUEL LINE	1
7	504074221	FUEL LINE FUEL LINE	1
8	504074227	FUEL LINE FUEL LINE	1
9	504074230	FUEL LINE FUEL LINE	1
10	504079223	FUEL LINE FUEL LINE	1
11	504074653	CHOCK CHOCK	1
12	504072853	FUEL LINE FUEL LINE	1
13	504074830	PIPE SOCKET PIPE SOCKET	1
14	504074224	FUEL LINE FUEL LINE	1
15	16592225	HEXAGON BOLT HEXAGON BOLT	1
16	98474305	WASHER WASHER	16
17	99489020	SEAL GASKET SEAL GASKET	3
18	16501611	PIPE SOCKET PIPE SOCKET	5
19	16500114	THREADED UNION THREADED UNION	1
20	16500214	THREADED UNION THREADED UNION	1
21	41031569	THREADED UNION THREADED UNION	4
22	16500514	THREADED UNION THREADED UNION	2
23	4864085	SCREW CONNECTOR SCREW CONNECTOR	1
24	16504614	T-COUPLING T-COUPLING	1
25	504121629	SCREW CONNECTOR SCREW CONNECTOR	1
26	16597925	HEXAGON BOLT HEXAGON BOLT	2
27	10450090	PIPE CLIP PIPE CLIP	2
28	99469378	WASHER WASHER	2
29	99489018	SEAL GASKET SEAL GASKET	1
30	99489019	WASHER WASHER	1
31	99489022	SEAL GASKET SEAL GASKET	1
32	504091353	FUEL LINE FUEL LINE	1
33	17316590	PIPE CLIP PIPE CLIP	1
34	16597925	HEXAGON BOLT HEXAGON BOLT	2
35	10450590	PIPE CLIP PIPE CLIP	2
36	17044735	NUT NUT	1
37	17316690	FASTENING BRACKET FASTENING BRACKET	2
38	99489017	SEAL GASKET SEAL GASKET	1
39	504144621	THREADED PLUG THREADED PLUG	1
40	504094131	SUPPORT SUPPORT	1
41	18139424	HEXAGON BOLT HEXAGON BOLT	2
