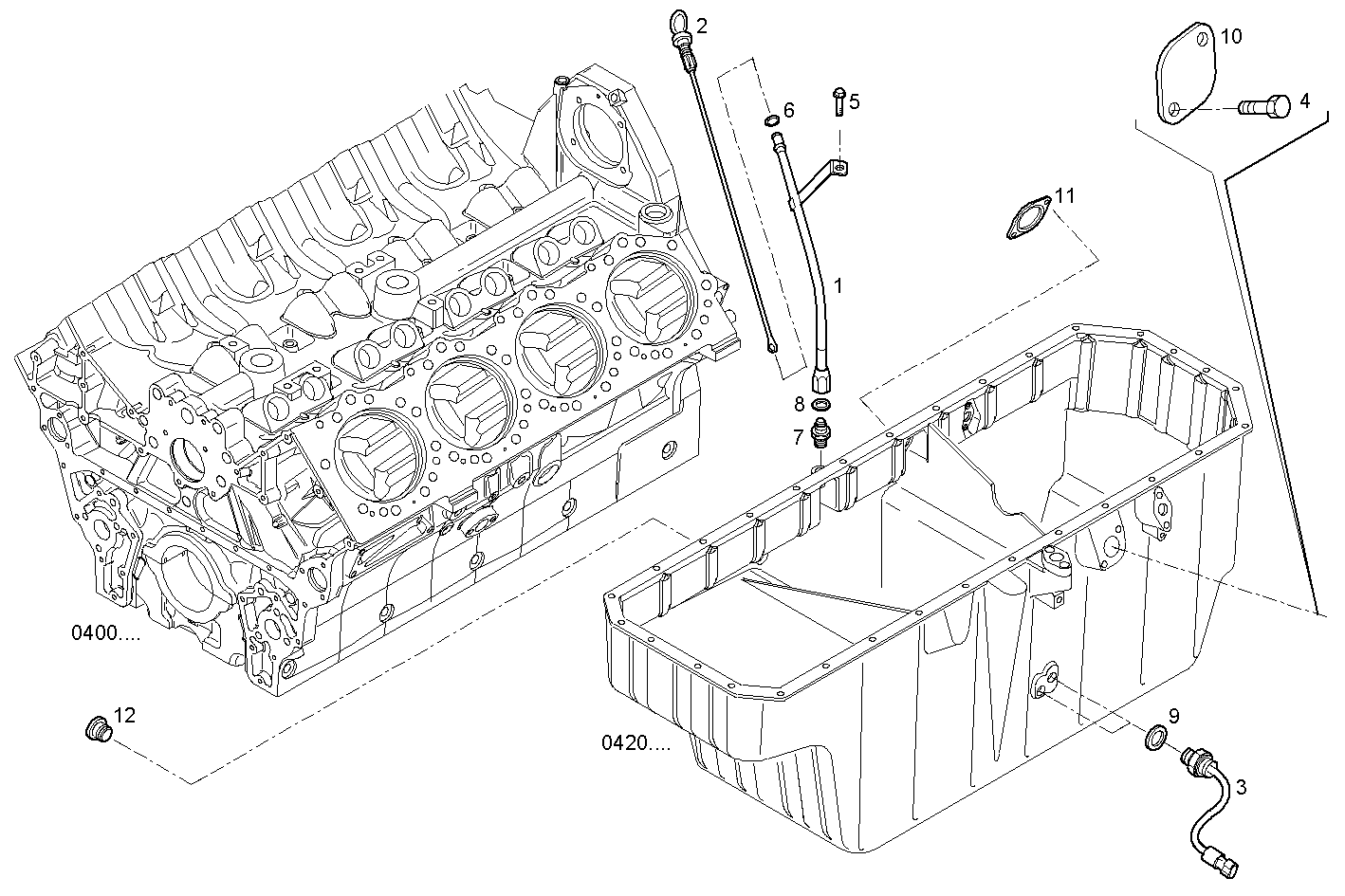

OIL DIPSTICK & FILLER PIPE
FVAE2884AB200 — VECTOR 8
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 504090255 | OIL LEVEL TUBE OIL LEVEL TUBE | 1 | |
| 2 | 504090253 | OIL DIPSTICK OIL DIPSTICK | 1 | |
| 3 | 504055244 | SENSOR SENSOR | 1 | |
| 4 | 16600224 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 5 | 16586225 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 6 | 17281981 | O-RING O-RING | 2 | |
| 7 | 504087366 | THREADED UNION THREADED UNION | 1 | |
| 8 | 99489020 | SEAL GASKET SEAL GASKET | 1 | |
| 9 | 504069933 | SEAL GASKET SEAL GASKET | 2 | |
| 10 | 504069978 | COVER COVER | 1 | |
| 11 | 504064628 | GASKET GASKET | 1 | |
| 12 | 504097424 | THREADED PLUG THREADED PLUG | 1 |
