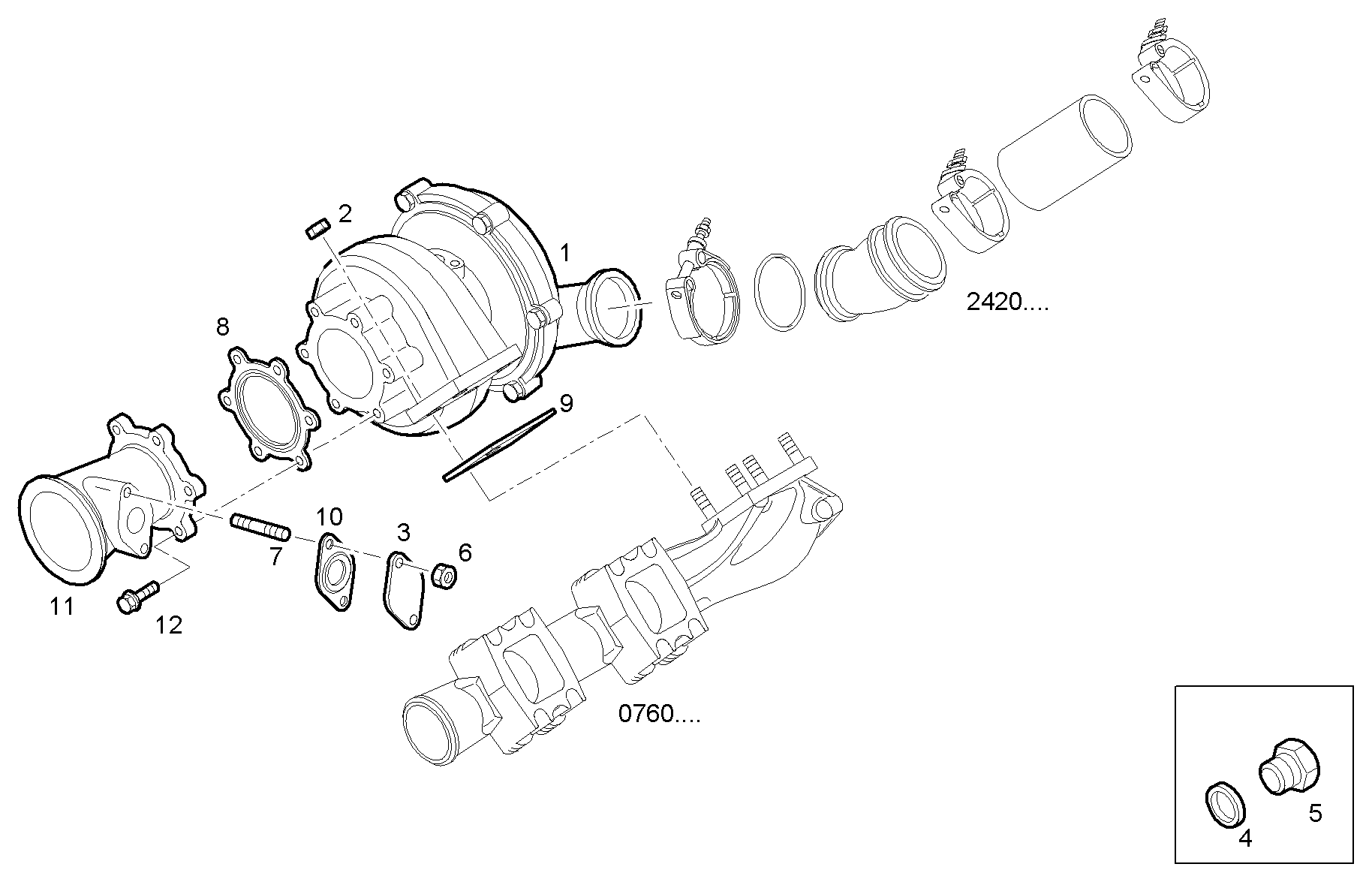

TURBOCHARGER
FVAE2884AB200 — VECTOR 8
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 504182616 | TURBOCHARGER TURBOCHARGER | 1 | |
| 2 | 500300795 | HEXAGON NUT HEXAGON NUT | 4 | |
| 3 | 504094021 | COVER COVER | 1 | |
| 4 | 99489018 | SEAL GASKET SEAL GASKET | 2 | |
| 5 | 16992315 | THREADED PLUG THREADED PLUG | 2 | |
| 6 | 17044725 | HEXAGON NUT HEXAGON NUT | 2 | |
| 7 | 16729434 | STUD STUD | 2 | |
| 8 | 504056723 | GASKET GASKET | 1 | |
| 9 | 504103435 | GASKET GASKET | 1 | |
| 10 | 504054953 | GASKET GASKET | 1 | |
| 11 | 504061998 | EXHAUST PIPE EXHAUST PIPE | 1 | |
| 12 | 99453959 | SCREW SCREW | 6 |
