ACCESSORIES
FVAE2884AB201 — VECTOR 8

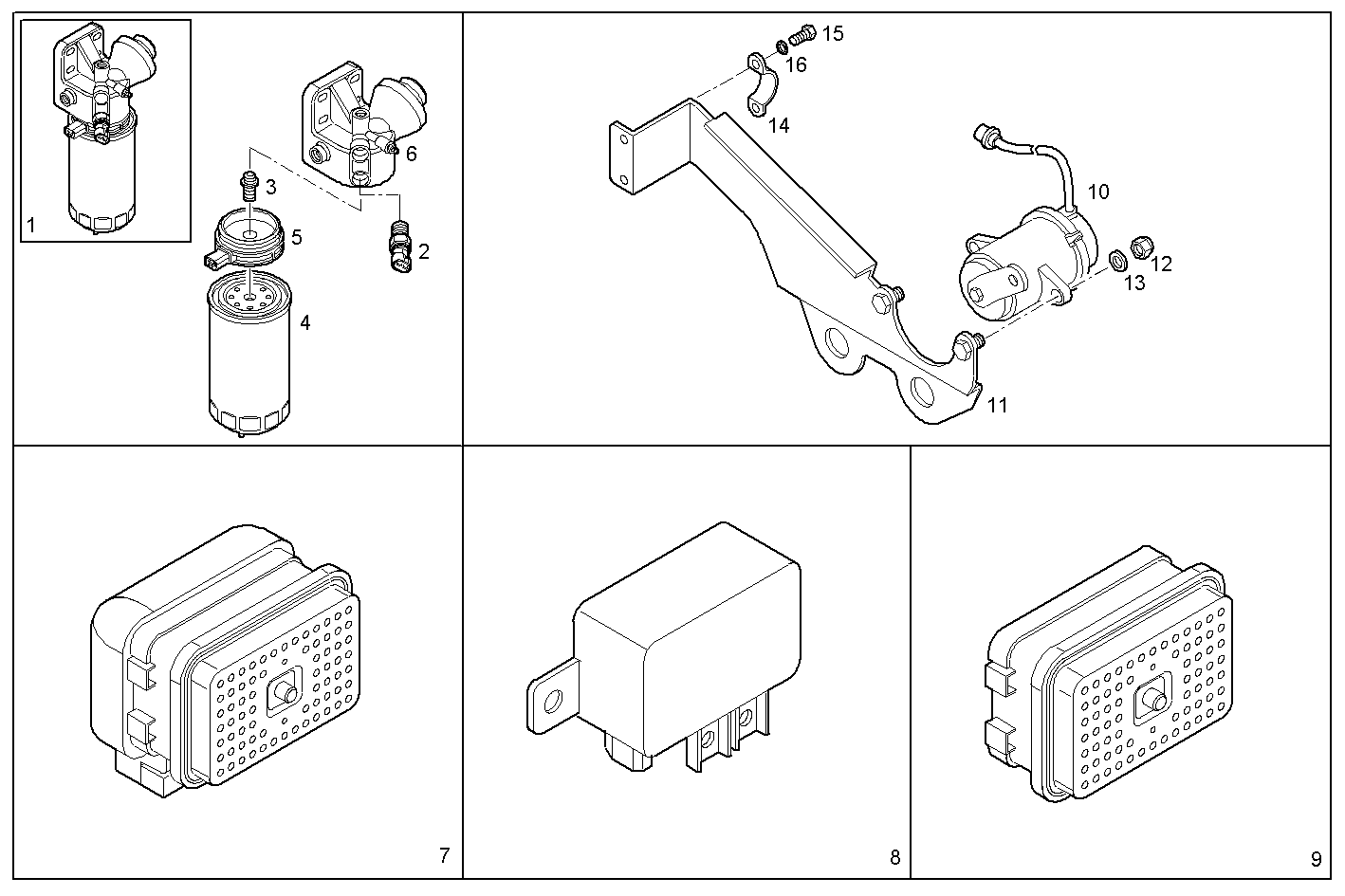

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 504085737 | PRECLEANER PRECLEANER | 1 | |
| 2 | 504064817 | THERMOSWITCH THERMOSWITCH | 1 | |
| 3 | 42545832 | THREADED UNION THREADED UNION | 1 | |
| 4 | 2992662 | FUEL FILTER ELEM. FUEL FILTER ELEM. | 1 | |
| 5 | 42548584 | HEATER FUEL FILTE HEATER FUEL FILTE | 1 | |
| 6 | 42550977 | FUEL FILT.SUPPORT FUEL FILT.SUPPORT | 1 | |
| 7 | 504086638 | CONNECTION CONNECTION | 1 | |
| 8 | 504054794 | RELAY RELAY | 3 | |
| 9 | 504081950 | CONNECTION CONNECTION | 1 | |
| 10 | 8040187 | ELECTRON.TRANSMITT ELECTRON.TRANSMITT | 1 | |
| 11 | 8036696 | RETAINER RETAINER | 1 | |
| 12 | 17787270 | HEXAGON NUT HEXAGON NUT | 1 | |
| 13 | 17088474 | WASHER WASHER | 2 | |
| 14 | 8033783 | RETAINER RETAINER | 1 | |
| 15 | 16601924 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 16 | 17800274 | SPRING WASHER SPRING WASHER | 2 |
