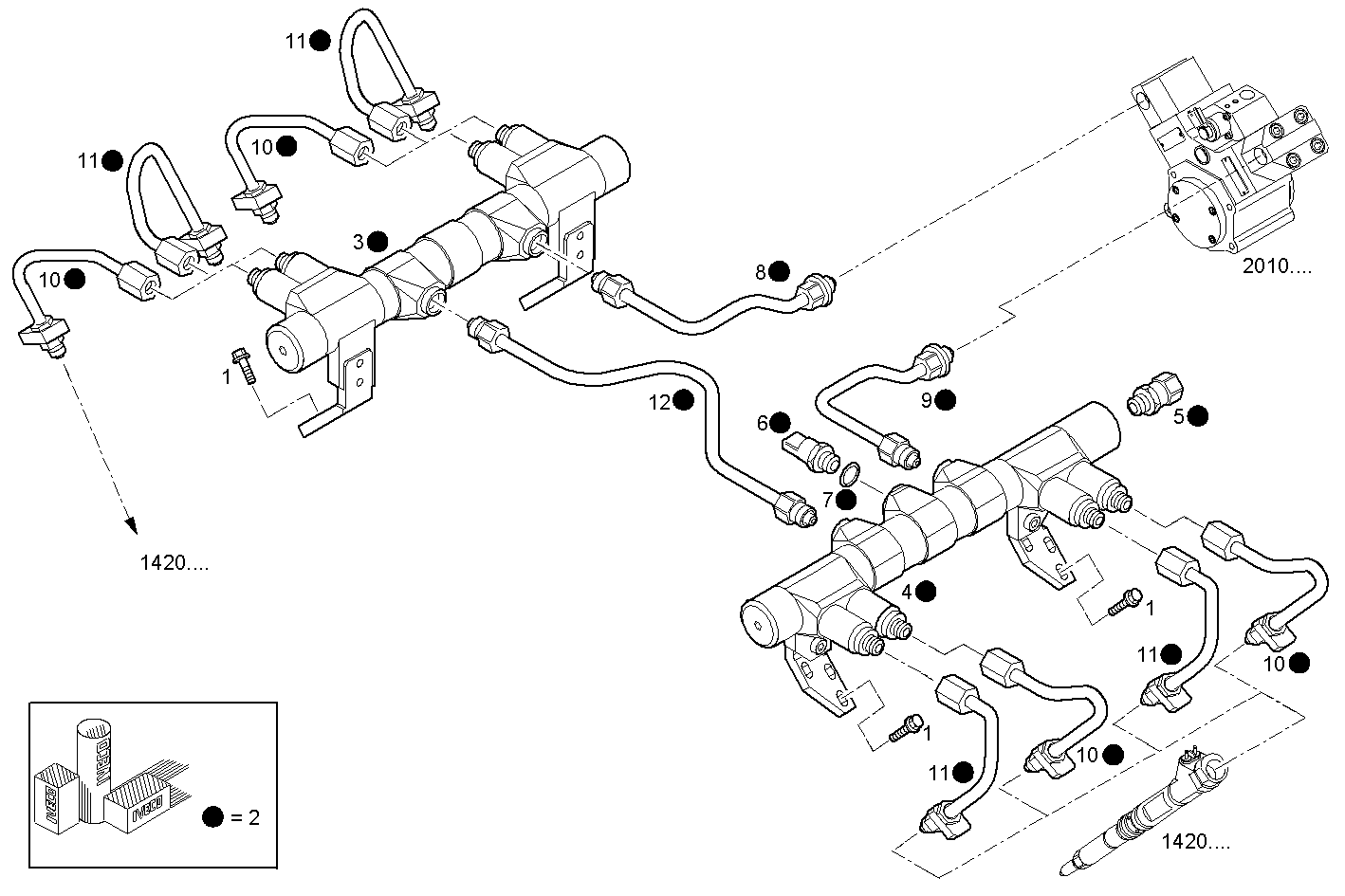

DOUBLE WALL INJECTION PIPES
FVAE2884AB201 — VECTOR 8
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 16586925 | HEXAGON BOLT HEXAGON BOLT | 12 | |
| 2 | 8044055 | INJECTION LINES SET INJECTION LINES SET | 1 | |
| 3 | 8044045 | HYDRAULIC CYLINDER HYDRAULIC CYLINDER | 1 | |
| 4 | 8044047 | HYDRAULIC CYLINDER HYDRAULIC CYLINDER | 1 | |
| 5 | 504043158 | VALVE VALVE | 1 | |
| 6 | 504043154 | SENSOR SENSOR | 1 | |
| 7 | 504120835 | SEAL GASKET SEAL GASKET | 1 | |
| 8 | 8044049 | INJECTION LINE INJECTION LINE | 1 | |
| 9 | 8044050 | INJECTION LINE INJECTION LINE | 1 | |
| 10 | 8044051 | INJECTION LINE INJECTION LINE | 4 | |
| 11 | 8044052 | INJECTION LINE INJECTION LINE | 4 | |
| 12 | 8044053 | INJECTION LINE INJECTION LINE | 1 |
