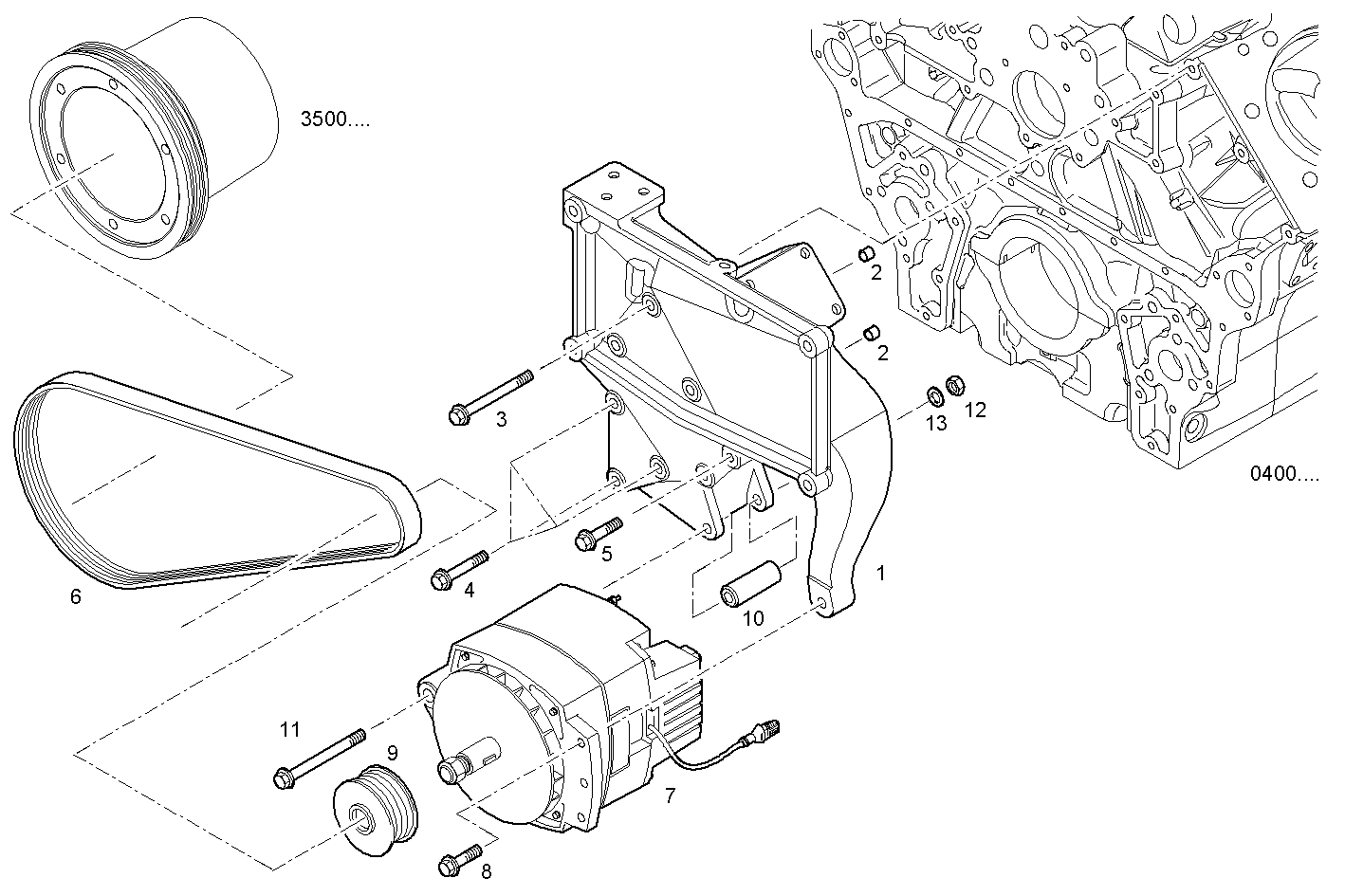

GENERATOR
FVAE2884AB201 — VECTOR 8
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 504113909 | GENERATOR SUPPORT GENERATOR SUPPORT | 1 | |
| 2 | 98405462 | DOWEL PIN DOWEL PIN | 2 | |
| 3 | 16677534 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 4 | 16676635 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 5 | 16675935 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 6 | 504113903 | ALTERNATOR BELT ALTERNATOR BELT | 1 | |
| 7 | 504204510 | ALTERNATOR ALTERNATOR | 1 | |
| 8 | 504122237 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 9 | 504113905 | GENERATOR PULLEY GENERATOR PULLEY | 1 | |
| 10 | 504042883 | SPACING BAR SPACING BAR | 1 | |
| 11 | 16600024 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 12 | 17038425 | HEXAGON NUT HEXAGON NUT | 1 | |
| 13 | 17095324 | WASHER WASHER | 1 |
