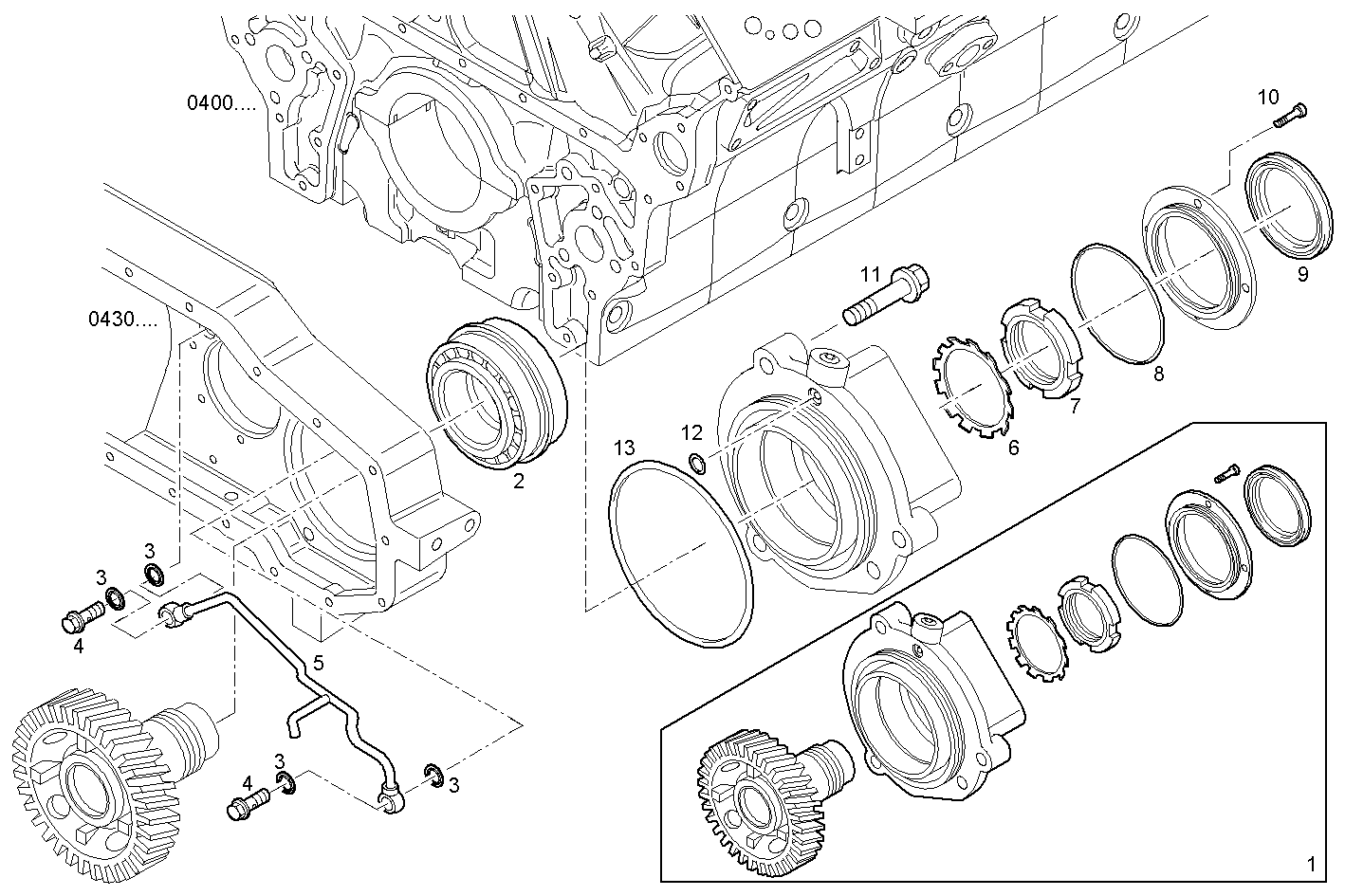

HYDRAULIC PUMP
FVAE2884AB201 — VECTOR 8
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 504177927 | POWER TAKE OFF POWER TAKE OFF | 1 | |
| 2 | 504041494 | ROLLER BEARING ROLLER BEARING | 1 | |
| 3 | 98474305 | WASHER WASHER | 4 | |
| 4 | 4864079 | SCREW CONNECTOR SCREW CONNECTOR | 2 | |
| 5 | 504050100 | OIL LINE OIL LINE | 1 | |
| 6 | 504168147 | ROLLER BEARING ROLLER BEARING | 1 | |
| 7 | 504168145 | NUT NUT | 1 | |
| 8 | 17285481 | O-RING O-RING | 1 | |
| 9 | 504207965 | SHAFT SEAL SHAFT SEAL | 1 | |
| 10 | 16689124 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 4 | |
| 11 | 16678235 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 12 | 17281381 | O-RING O-RING | 1 | |
| 13 | 17292381 | O-RING O-RING | 1 |
